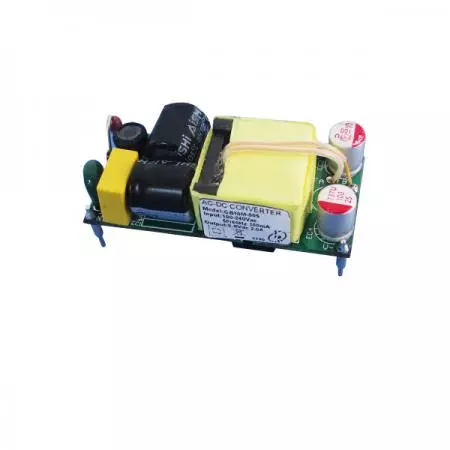

Medical grade AC-DC converter, 4PIN DIP Open Frame Power For Portable medical device and Medical examination instrument
10 watt open frame single output AC to DC power converter with 4KVac isolation voltage and universal input voltage of 80~264VAC. No-load power consumption <0.1W. GB10M series has short circuit, overload, over voltage and over temperature protection. It is designed with reference to ANSI / AAMI ES60601-1 and IEC / EN 60601-1 medical safety certification (2 X MOPP). Extremely low leakage current and no minimum load required, Suitable for a variety of medical applications such as portable medical equipment, mobile clinical workstations, medical computer monitor, etc..
Our 2xMOPP power supply series delivers superior safety for healthcare applications. As a certified medical ac dc converter 60601-1, it features a low leakage ac-dc design and strictly maintains low leakage current to protect both patients and operators. This high isolation ac dc converter is the ultimate 60601-1 power supply solution for sensitive medical electronics.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max(Note) | (TYP %) | |
| GB10M-S05 | 10 | 5 | 2000 | 100 | 79 |
| GB10M-S12 | 10.2 | 12 | 850 | 180 | 82 |
| GB10M-S15 | 10 | 15 | 670 | 180 | 82 |
| GB10M-S24 | 11 | 24 | 460 | 200 | 83 |
Note:Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 80 | 264 | Vac | |
| DC in | 105 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 50/60 | 63 | Hz | |
| Input Current | Io nom | Vi:115VAC | 25 | A | ||
| Vi:230VAC | 45 | A | ||||
| Input Current (Full load) | 0.3A (115Vac) 0.2A (230Vac) | |||||
| Input Fuse | VDE/UL/CCC FUSE 2.5A/250V (Slow blow) | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 5V Models | ± 3 | % | ||
| 12/15/24V Models | ± 2 | % | ||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 0.3 | % | |||
| Load Regulation | Vi nom, Io min…Io nom | ± 0.5 | % | |||
| Protection | Overload | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Short circuit | Recovers automatically after fault condition is removed | |||||
| Over Voltage | 110%-150% rated output Voltage | |||||
| Protection type: Zener diode clamp | ||||||
| Over Temperature | Protection type: Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | Input / Output | 4KVac/ 5mA/60Secs | |||
| Isolation Resistance | Input / Output,@500Vdc | 100 | MΩ | ||
| Operating Temperature | Operating at Vi nom, Io nom | -25 | +75 | °C | |
| Storage Temperature | Non Operational | -40 | +100 | °C | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||

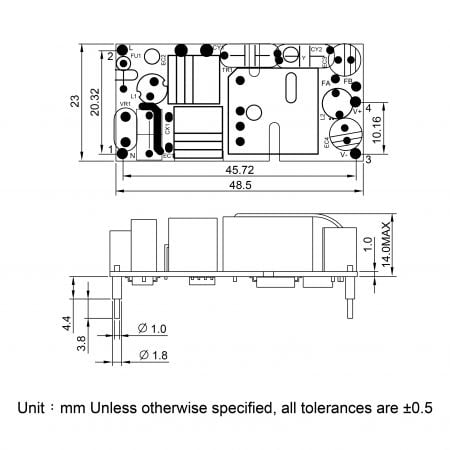

| Dimension | L48.5x W23 x H14.0mm | ||||
| Cooling | Free air convection | ||||
