Plug-in AC-DC module For AC Main power supply system and Industrial Control

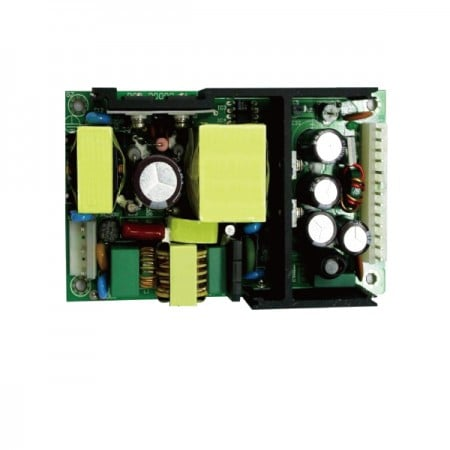

100 watt single output open frame AC to DC power converter features universal input voltage of 90~264VAC and 3KVac isolation voltage. GB100 series has short circuit, overload and overvoltage protection and contains internal input filter. The efficiency can reach up to 89% (Typical).
As a high quality power module vendor, we provide a universal input AC-DC power module for computer equipment and industrial controls. This RoHS & REACH compliant AC-DC converter functions as a regulated open frame AC to DC converter, featuring a high isolation open frame power module for fire security systems. With its AC-DC power module with connector interface, this industrial grade open frame power supply is a reliable AC to DC converter and the perfect open frame switching power supply for system integration, embedded equipment, AC mains systems, electronic instruments, and IoT device power supply.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Ripple & Noise | Efficiency | Output Power(W) |
|---|---|---|---|---|---|
| V | MAX | mVp-p(Max) (note) | %(TYP) | Rated | |
| GB100-S03 | 3.3 | 20A | 100 | 75 | 66 |
| GB100-S05 | 5 | 16A | 100 | 80 | 80 |
| GB100-S12 | 12 | 8.3A | 100 | 88 | 100 |
| GB100-S15 | 15 | 6.67A | 150 | 88 | 100 |
| GB100-S24 | 24 | 4.16A | 150 | 88 | 100 |
| GB100-S36 | 36 | 2.78A | 240 | 88 | 100 |
| GB100-S48 | 48 | 2.08A | 240 | 89 | 100 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Rated Input Voltage | Io nom | 100 ~ 240 | Vac | ||
| Voltage Range | Io nom | 90 | 264 | Vac | |
| Io nom | 127 | 370 | Vdc | ||
| Frequency | 47 | 50/60 | 63 | Hz | |
| Inrush Current | At 100Vac | 30 | A | ||
| At 240Vac | 60 | A | |||
| Input Over-Current Protection | VDE/UL/CCC FUSE 3.15A/250V | ||||
| Power Factor | PF> 0.93 / 230Vac PF> 0.98 / 115Vac at full load | ||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 3.3V,5V Models | ± 3 | % | ||
| 12….48V Models | ± 2 | % | ||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 1 | % | |||
| Load Regulation | Vi nom, Io min…Io nom | ±3 | % | |||
| Protection | Over Load | 115% -150% rated output power | ||||
| Protection type: Shut off o/p voltage, re-power on to recover | ||||||
| Over Voltage | 120%-150% rated output Voltage | |||||
| Protection type: Shut off o/p voltage, re-power on to recover | ||||||
| Short circuit | Protection type: Shut off o/p voltage, re-power on to recover | |||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| MTBF | MIL-HDBK-217F(25℃) | 100,000 | Hrs | ||
| Isolation Voltage | Input To Output | 3000V AC 5mA/5Secs | |||
| Input To Ground | 1500V AC 5mA/5Secs | ||||
| Output To Ground | 500V AC 5mA/5Secs | ||||

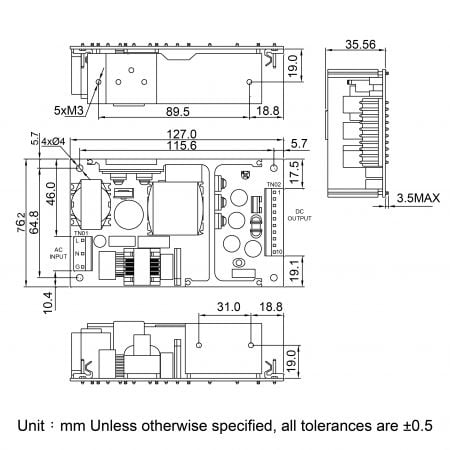

| Size | 127x76.2x35.56(5.0x3.0x1.4) | Mm (inches) | |||
| Weight | 345 | g | |||
| Operating Temperature | With Derating | -10 | +70 | °C | |
| Storage Temperature | -45 | +85 | °C | ||
