Plug-in AC-DC module For Industrial Control and AC Main power supply system

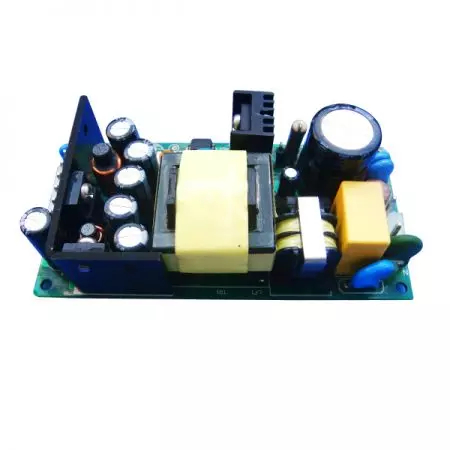

40 watt AC to DC power converter with dual output and triple output specifications. GB040 series is packaged in an open frame type. This product features Universal input voltage of 90~264VAC and 3KVac isolation voltage. It has short circuit, overload and overvoltage protection. It contains internal input filter. The efficiency Up to 80% (Typical).
As a high quality power module vendor, we offer this global input AC-DC power supply for computer equipment and industrial controls. This RoHS & REACH compliant AC-DC converter functions as a regulated open frame AC-DC converter, providing a high isolation open frame power module for fire security systems. Featuring an AC-DC power module with connector interface, this compact open frame power module serves as an industrial isolation AC to DC power supply. It is a reliable AC to DC converter and the perfect open frame switching power supply for system integration, AC mains systems, electronic instruments, and IoT device power supply.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current(A) | Voltage Accuracy | Line Reg. | Load Reg. | Efficiency | ||
|---|---|---|---|---|---|---|---|---|
| Convection cooled | Max 18 CFM | |||||||
| (V) | MIN | RATED | MAX | (%) | (%) | (%) | (%) | |
| GB040-D0512 | 5(Vo1) | 0.64 | 3.2 | 5.0 | ± 3 | ± 1 | ± 3 | 79 |
| 12(Vo2) | 0.4 | 2.0 | 2.5 | ± 5 | ± 2 | ± 5 | ||
| GB040-D0524 | 5(Vo1) | 0.4 | 3.2 | 5.0 | ± 3 | ± 1 | ± 3 | 80 |
| 24(Vo2) | 0.2 | 1.0 | 1.5 | ± 5 | ± 2 | ± 5 | ||
| GB040-T051205 | 5(Vo1) | 0.4 | 3.0 | 5.0 | ± 3 | ± 1 | ± 3 | 75 |
| 12(Vo2) | 0.2 | 2.0 | 2.5 | ± 5 | ± 2 | ± 5 | ||
| -5(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| GB040-T051212 | 5(Vo1) | 0.4 | 3.0 | 5.0 | ± 3 | ± 1 | ± 3 | 75 |
| 12(Vo2) | 0.2 | 2.0 | 2.5 | ± 5 | ± 2 | ± 5 | ||
| -12(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| GB040-T051515 | 5(Vo1) | 0.4 | 3.0 | 5.0 | ± 3 | ± 1 | ± 3 | 75 |
| 15(Vo2) | 0.2 | 2.0 | 2.5 | ± 5 | ± 2 | ± 5 | ||
| -15(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| GB040-T052412 | 5(Vo1) | 0.4 | 3.0 | 5.0 | ± 3 | ± 1 | ± 3 | 75 |
| 24(Vo2) | 0.2 | 2.0 | 2.5 | ± 5 | ± 2 | ± 5 | ||
| -12(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| GB040-T052405 | 5(Vo1) | 0.4 | 3.0 | 5.0 | ± 3 | ± 1 | ± 3 | 75 |
| 24(Vo2) | 0.2 | 1.0 | 1.5 | ± 5 | ± 2 | ± 5 | ||
| -5(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| GB040-T030512 | 3.3(Vo1) | 0.4 | 5.0 | 7.0 | ± 3 | ± 1 | ± 3 | 70 |
| 5(Vo2) | 0.2 | 2.0 | 3.5 | ± 5 | ± 2 | ± 5 | ||
| -12(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Rated Input Voltage | Io nom | 100 ~ 240 | Vac | ||
| Voltage Range | Io nom | 90 | 264 | Vac | |
| Frequency | 47 | 50/60 | 63 | Hz | |
| Inrush Current | At 100Vac | 20 | A | ||
| At 240Vac | 40 | A | |||
| Input Fuse | VDE/UL/CCC FUSE 2.5A/250V | ||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom(Full load) | See models list | ||||
| Minimum Load | Vi nom | See models list | ||||
| Protection | Over Load | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Over Voltage(Main Output) | 120%-150% rated output Voltage | |||||
| Protection type: Shut off o/p voltage, re-power on to recover | ||||||
| Short circuit | Recovers automatically after fault condition is removed | |||||
| Ripple & Noise | Vi nom, Io nom BW=20MHz | Main output | 100 | mVp-p | ||
| Supplement Output | 150 | mVp-p | ||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Operating at Vi nom, Io nom | -20 | +70 | °C | |
| Derating | Vi nom,Io nom+51 to 71℃ | 2 | %/°C | ||
| Storage Temperature | Non Operational | -40 | +85 | °C | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||

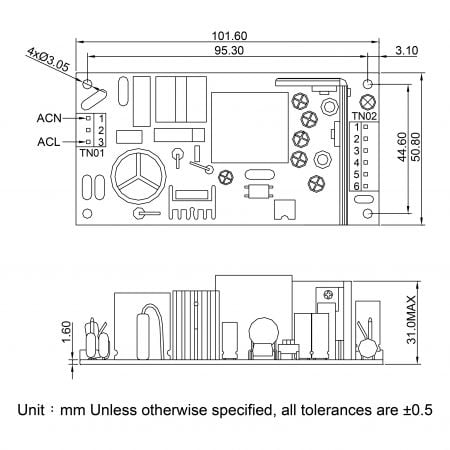

| Dimension | L101.60 x W50.80 x H31.0 | ||||
| Cooling | Free air convection | ||||
