Plug-in AC-DC module For Industrial Displays、Telecommunications and Embedded Systems

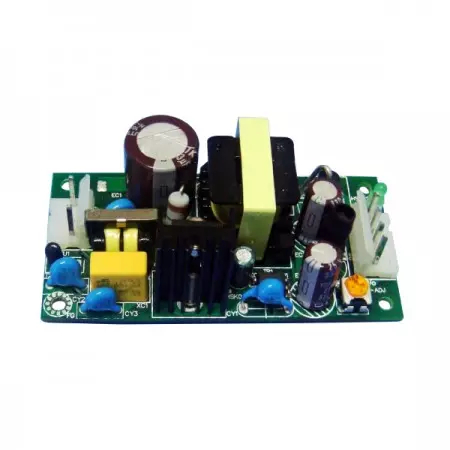

Open frame AC to DC power converter features 10~19 watt power and 3KVac isolation voltage. GB015 series is a single output type and is packaged in a compact open frame. It has short-circuit, overload, overvoltage protection and universal input voltage of 90~264VAC. It contains internal input filter. The efficiency can reach up to 85%. This product meets EMI EN55022 & EMS EN55024 standard.
Our regulated open frame AC-DC converter is a reliable AC-DC converter designed for computer equipment and industrial controls. This compact open frame power module functions as an industrial isolation AC-DC power supply, featuring a high isolation open frame power module for fire security systems. As a low cost open frame AC-DC converter, this open frame switching power supply includes an open frame AC-DC power supply with terminal block for easy chassis mount integration. It is the ideal open frame power supply for system integration, supporting AC mains systems, electronic instruments, and IoT device power supply needs.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max(Note) | (TYP %) | |
| GB015-S03 | 10 | 3.3 | 3000 | 100 | 70 |
| GB015-S05 | 15 | 5 | 3000 | 100 | 75 |
| GB015-S12 | 18 | 12 | 1500 | 100 | 80 |
| GB015-S15 | 18 | 15 | 1200 | 150 | 82 |
| GB015-S24 | 19 | 24 | 800 | 240 | 83 |
| GB015-S48 | 19 | 48 | 400 | 240 | 85 |
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 90 | 264 | Vac | |
| DC in | 120 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 50/60 | 63 | Hz | |
| Inrush Current | Io nom | Vi: 115VAC | 10 | A | ||
| Vi: 230VAC | 20 | A | ||||
| Input Fuse | VDE/UL/CCC FUSE 2.5A/250V (Slow blow) | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom (Single output) | 3.3V,5V Models | ± 3 | % | ||
| 12...48V Models | ± 2 | % | ||||
| Minimum Load | Vi nom | Single Output Models | 0 | % | ||
| Line Regulation | Io nom, Vi min…Vi max | ± 1 | % | |||
| Load Regulation | Vi nom, Io min~Io nom | Single Output Models | ± 2 | % | ||
| Transient Recovery time | Vi nom,Io nom = ←→0.5 Io nom | 1000 | us | |||
| Protection | Over Load | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Over Voltage | 120%-150% rated output Voltage | |||||
| Protection type: Zener diode clamp | ||||||
| Short circuit | Recovers automatically after fault condition is removed | |||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Operating at Vi nom, Io nom | -20 | +70 | °C | |
| Derating | Vi nom,Io nom+51 to 71℃ | 2 | %/°C | ||
| Storage Temperature | Non Operational | -40 | +85 | °C | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | EN60950-1 approved | ||||
| EMI Conduction & Radiation | Compliance to EN55022 | ||||
| EMS Immunity | Compliance to EN55024 | ||||

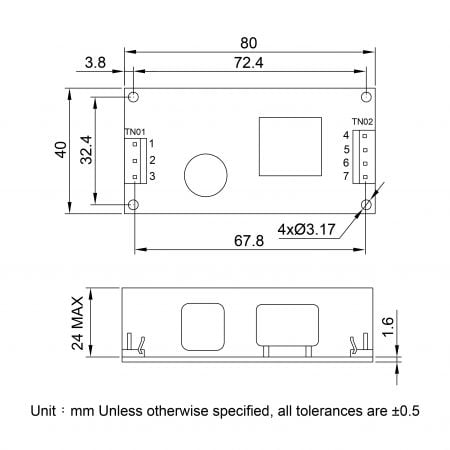

| Dimension | L80 x W40 x H24MAX | ||||
| Cooling | Free air convection | ||||
