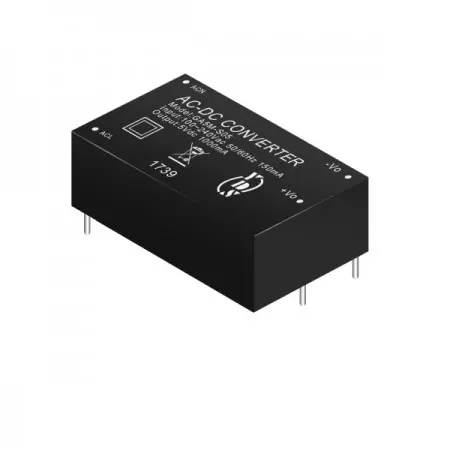

Medical grade AC-DC converter, 4PIN DIP encapsulated power For Portable medical device and Medical examination instrument
Medical application 5 watt AC to DC power conversion module with 4KVac isolation voltage and universal input voltage of 80~264VAC. Medical safety design refer to (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1certification. No-load power consumption <0.1W. GA5M series has short circuit, overload, over voltage and over temperature protection functions. Extremely low leakage current and no minimum load required. Suitable for a variety of medical applications such as portable medical equipment, mobile clinical workstations, medical computer monitor, etc..
YDS offers cutting-edge medical power modules designed to meet the rigorous demands of healthcare technology. Our IEC 60601-1 certified AC DC and high isolation AC-DC converter solutions provide essential 2xMOPP protection for both patients and operators. Specifically engineered as a low leakage power supply, each medical power module ensures minimal electromagnetic interference and maximum safety. Whether you need an isolated medical power solution or a high-performance 60601-1 compliant unit, YDS delivers the reliability your medical devices require.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max(Note) | (TYP %) | |
| GA5M-S05 | 5.0 | 5 | 1000 | 100 | 76 |
| GA5M-S12 | 5.0 | 12 | 420 | 150 | 80 |
| GA5M-S15 | 5.0 | 15 | 330 | 150 | 81 |
| GA5M-S24 | 5.0 | 24 | 230 | 180 | 82 |
Note:Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 80 | 264 | Vac | |
| DC in | 105 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 50/60 | 63 | Hz | |
| Inrush Current | Io nom | Vi:115VAC | 25 | A | ||
| Vi:230VAC | 45 | A | ||||
| Input Current (Full load) | 0.2A (115Vac) 0.1A (230Vac) | |||||
| Input Fuse | VDE/UL/CCC FUSE 2.5A/250V (Slow blow) | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 5V Models | ± 3 | % | ||
| 12/15/24V Models | ± 2 | % | ||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 0.3 | % | |||
| Load Regulation | Vi nom, Io min…Io nom | ± 0.5 | % | |||
| Protection | Overload | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Short circuit | Recovers automatically after fault condition is removed | |||||
| Over Voltage | 110%-150% rated output Voltage | |||||
| Protection type: Zener diode clamp | ||||||
| Over Temperature | Protection type: Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | Input / Output | 4KVac/ 5mA/60Secs | |||
| Isolation Resistance | Input / Output,@500Vdc | 100 | MΩ | ||
| Operating Temperature | Operating at Vi nom, Io nom | -40 | +85 | °C | |
| Storage Temperature | Non Operational | -40 | +100 | °C | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||

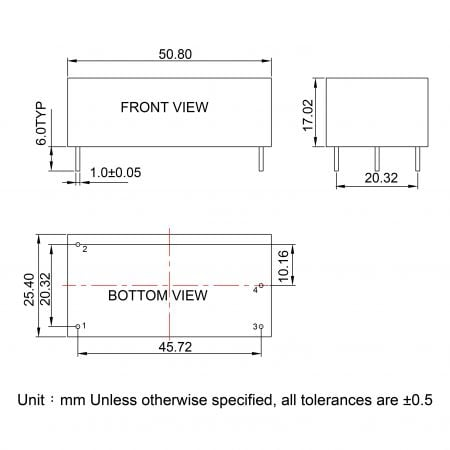

| Dimension | L50.80x W25.40 x H17.02mm | ||||
| Cooling | Free air convection | ||||
