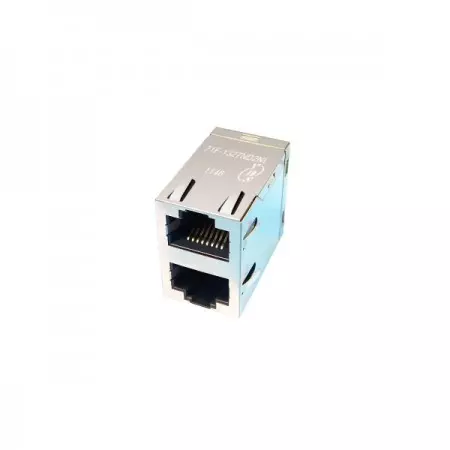

2x1 Port 10/100/1000 Base-T TAB Up & Down RJ45 Jack For HUB and Telecom equipment
10/100/1000 Base-T RJ45 jack with magnetics is available in 2x1 port specifications. 71F series has Tab up/down ports and internal magnetics are 100% electrically tested for HI-POT and functionality. Suitable for CAT 5 and 6 Fast Ethernet cables or better UTP, 350uH minimum OCL with 8mA bias current. This product has passed the UL 60950-1 safety certification.
As a specialized manufacturer with strong R&D capabilities, we provide advanced Gigabit RJ45 with Magnetics for aerospace and industrial equipment. Our Dual port RJ45 connector with magnetics ensures high-density connectivity for wireless networks and telecommunications, functioning as a reliable RJ45 Dual port LAN connector. This ethernet RJ45 with integrated magnetics features an RJ45 jack with LAN transformer and RJ45 connector with LED magnetics for precision in measurement technology. Every RoHS/REACH compliant RJ45 connector is an integrated RJ45 connector with magnetics designed for electronic instruments. Whether you need an RJ45 magnetic jack or an RJ45 ethernet connector with magnetics, our RJ45 connector with LAN filter ensures superior signal integrity for all sensing devices.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Turns Ratio | Insertion Loss (dB MAX) | Return Loss (dB MIN) 100Ω ± 15Ω | Crosstalk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (Vrms) | |||
|---|---|---|---|---|---|---|---|---|---|
| TX | RX | 1-80 MHz | 100 MHz | 1-60 MHz | 60-100 MHz | 1-100 MHz | 1-100 MHz | @60Hz | |
| 71F-1210GYD2NL | 1CT: 1CT | 1CT: 1CT | -1.0 | -1.2 | -16 | -12 | -35 | -30 | 1500 |
| 71F-1327YGD2NL | 1CT: 1CT | 1CT: 1CT | - | -1.0 | -18 | -10 | -30 | -30 | 1500 |
