VSM Series Versatile Surface Mount Magnetic Devices

Availability:
Quantity:
Inquire Add to Basket

  • VSM series

  • YDS

Versatile Surface Mount Magnetic Devices


Features


  • YDS is the manufacturer and can make the customized design for you.

  • Welcome OEM/ODM !



Electrical Specifications@25°C; Operating Temperature -40°C to 85°C


Part
Number		 Parallel Ratings Series Ratings TYPE Test Freq
(MHz)

Inductance

(μH)

 Current
(AMP)		 DCR
Ω&Omax		 Inductance
(μH)		 Current
(AMP)		 DCR
Ω&Omax
VSM-1001NL 10 2.500 0.046 40 1.250 0.184 1 1
VSM-2001NL 20 1.600 0.119 80 0.800 0.480
VSM-5001NL 50 1.020 0.217 200 0.510 0.870
VSM-8201NL 82 0.730 0.444 328 0.365 1.780
VSM-1011NL 100 0.730 0.469 400 0.365 1.880
VSM-2011NL 200 0.500 0.810 800 0.250 3.220
VSM-3011NL 300 0.420 0.950 1200 0.210 3.730
VSM-1002NL 10 4.000 0.026 40 2.000 0.150 2 1
VSM-2002NL 20 2.100 0.071 80 0.050 0.300
VSM-5002NL 50 1.350 0.242 200 0.575 0.970
VSM-1012NL 100 0.980 0.332 400 0.475 1.330
VSM-1512NL 150 0.720 0.603 600 0.036 2.420
VSM-2512NL 250 0.600 0.881 1000 0.300 3.530
VSM-3012NL 300 0.550 0.930 1200 0.275 3.750

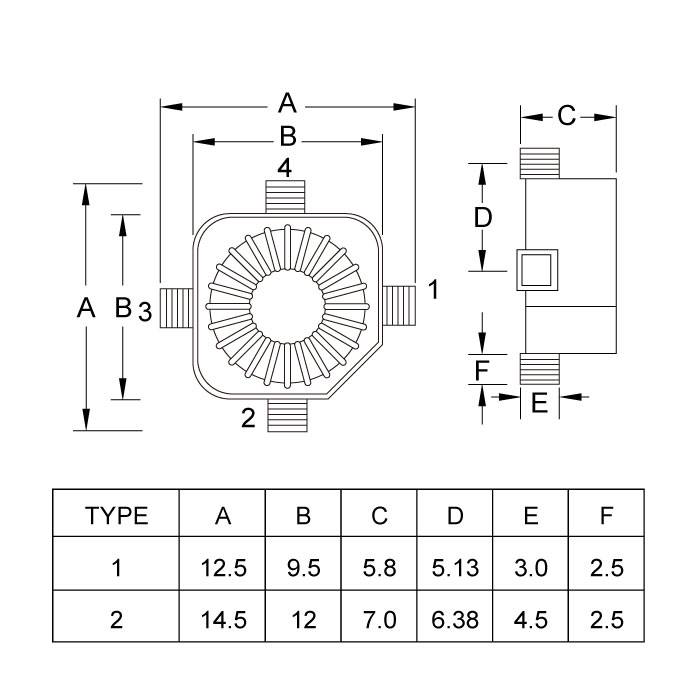

Dimension


VSM


 Files Download      VSM-Series.pdf
