UU series
YDS
Horizontal or Vertical Structure High Frequency Transformer
Core mounted horizontal or vertical.
Hipot voltage:2500Vrms.
Ferrite core material.
Custom designs available.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -55℃ to +125℃.
Part Number | L ① (mH MIN) | Irms ② (mA MAX) | DCR ③ (Ohms MAX) | Core ④ Mounted |
---|---|---|---|---|

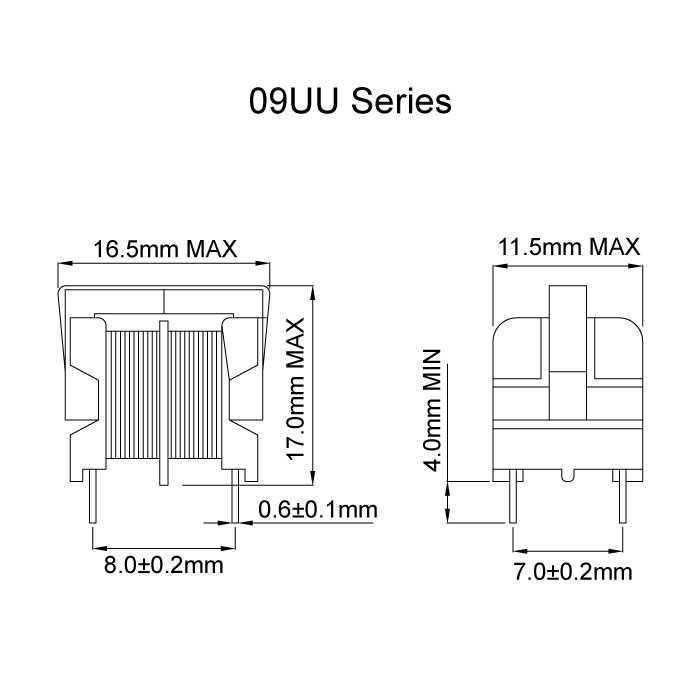

09UU-1011ANL | 0.1 | 3000 | 0.03 | V/H |
09UU-2011ANL | 0.2 | 2000 | 0.06 | V/H |
09UU-5011ANL | 0.5 | 1500 | 0.12 | V/H |
09UU-9011ANL | 0.9 | 1300 | 0.16 | V/H |
09UU-1021ANL | 1.0 | 1200 | 0.22 | V/H |
09UU-1521ANL | 1.5 | 1000 | 0.30 | V/H |
09UU-2221ANL | 2.2 | 850 | 0.40 | V/H |
09UU-3321ANL | 3.3 | 700 | 0.50 | V/H |
09UU-4721ANL | 4.7 | 500 | 1.60 | V/H |
09UU-5621ANL | 5.6 | 450 | 0.75 | V/H |
09UU-1031ANL | 10 | 350 | 1.4 | V/H |
09UU-1531ANL | 15 | 300 | 2.30 | V/H |
09UU-2231ANL | 22 | 250 | 3.7 | V/H |
09UU-2232ANL | 22 | 300 | 2.50 | V/H |
09UU-3331ANL | 33 | 200 | 4.95 | V/H |
09UU-4731ANL | 47 | 150 | 6.9 | V/H |
① Measure at 1KHz/0.1V
② MAX current: The DC current at which the temperature rise is △t=40℃TYP.(Ta=25℃)
③ Maximum DC Resistance of each winding
④ Appearance of Vertical and Horizontal
Part Number | L ① (mH MIN) | Idc ② (mA MAX) | DCR ③ (Ohms MAX) | Core ④ Mounted |
---|---|---|---|---|

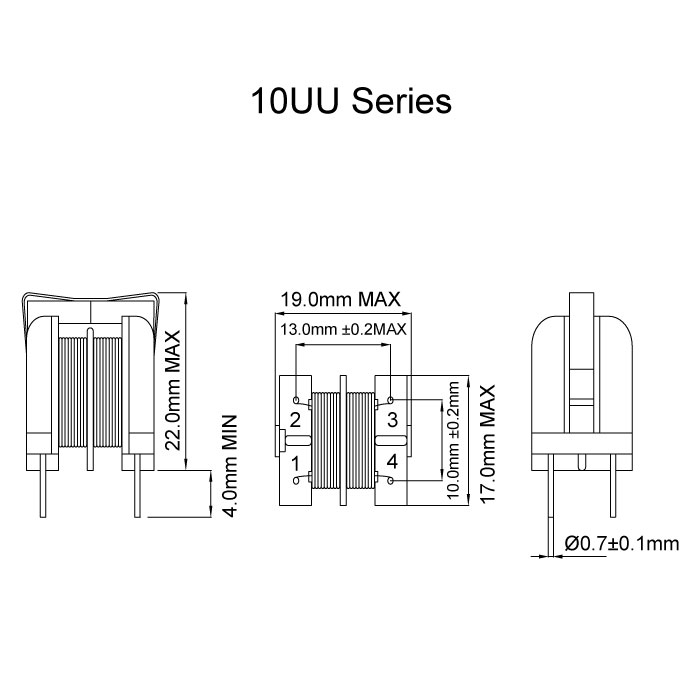

10UU-6011ANL | 0.6 | 3000 | 0.06 | V |
10UU-1021ANL | 1.0 | 2200 | 0.1 | V |
10UU-1721ANL | 1.7 | 1700 | 0.15 | V |
10UU-2021ANL | 2.0 | 1600 | 0.16 | V |
10UU-2221ANL | 2.2 | 1500 | 0.19 | V |
10UU-3021ANL | 3.0 | 1300 | 0.23 | V |
10UU-3521ANL | 3.5 | 1200 | 0.3 | V |
10UU-4021ANL | 4.0 | 1100 | 0.45 | V |
10UU-5521ANL | 5.5 | 1000 | 0.45 | V |
10UU-7421ANL | 7.4 | 800 | 0.55 | V |
10UU-1033ANL | 10 | 700 | 0.77 | V |
10UU-1232ANL | 12 | 600 | 0.95 | V |
10UU-1931ANL | 19 | 500 | 1.5 | V |
10UU-2031ANL | 20 | 500 | 1.55 | V |
10UU-3031ANL | 30 | 400 | 2.7 | V |
10UU-4331ANL | 43 | 300 | 3.9 | V |
10UU-4531ANL | 45 | 300 | 4.0 | V |
① Measure at 1KHz/0.1V
② MAX current: The DC current at which the temperature rise is △t=40℃TYP.(Ta=25℃)
③ Maximum DC Resistance of each winding
④ Appearance of Vertical
Part Number | L ① (mH MIN) | Idc ② (mA MAX) | DCR ③ (Ohms MAX) | Core ④ Mounted |
---|---|---|---|---|
16UU-6011ANL | 0.6 | 4400 | 0.04 | V |
16UU-1021ANL | 1.0 | 3600 | 0.05 | V |
16UU-2021ANL | 2.0 | 2900 | 0.09 | V |
16UU-5021ANL | 5.0 | 2300 | 0.19 | V |
16UU-8021ANL | 8.0 | 1600 | 0.35 | V |
16UU-1031ANL | 10 | 1500 | 0.38 | V |
16UU-2031ANL | 20 | 1000 | 0.75 | V |
16UU-3031ANL | 30 | 800 | 1.25 | V |
16UU-4531ANL | 45 | 700 | 1.75 | V |
① Measure at 1KHz/0.1V
② MAX current: The DC current at which the temperature rise is △t=40℃TYP.(Ta=25℃)
③ Maximum DC Resistance of each winding
④ Appearance of Vertical
Files Download UU-Series.pdf
