Inverter Transformer
Description:
Inverter transformer is a kind of work in DC to AC transformer under the module
Used in solar energy,vehicle power supply system, uninterruptible power supply, etc.
Flyback topology structure
Operate at 57kHz with 20~55 VDC input
Rectified sine wave output
Maximum Power:100W
Hipot voltage: 3000Vrms,one minute isolation primary to secondary
1500Vrms,one minute isolation windings to core
Custom designs available
Operating temperature range: -40℃ to +85℃
Storage temperature range: -40℃ to +85℃
RoHS Compliant version is available
| Part Number | Turn Ratio Pri:Sec | L ① (uH±10%) | Input | LK ②max(uH) | Output Voltage | DCR ③ max(Ohms) | L at Ipk(10A) ④ min(uH) | |
|---|---|---|---|---|---|---|---|---|
| Pri | Sec | |||||||
| 14RM-5501ENL | 1:7 | 55.0 | 20~55 VDC,57KHZ | 2.95uH | 230VAC,100W | 0.0475 | 0.36 | 44.0 |
| 14RM-5502ENL | 1:4 | 55.0 | 20~55 VDC,57KHZ | 2.75uH | 110VAC,100W | 0.0480 | 0.19 | 38.5 |
① L(NOM)=Nominal Inductance is for pri winding, measured at 150KHz,1.0Vrms
② Leakage inductance measured at 150KHz,1.0Vrms between Pri other pins shorted
③ DCR for the primary is with windings connected in parallel
④ Ipk is the peak current drawn at minimum input voltage
Files Download

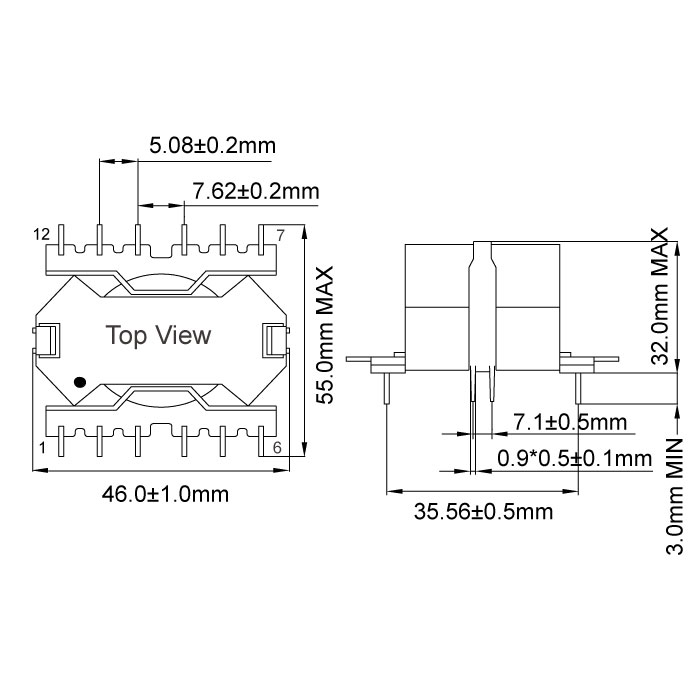

RM14 Series.pdf
