PoE 15FB series
YDS
PoE&PoE+ Applications 10/100/1000 Base-TX SMD Internet Filter
IEEE 802.3af&at/ANSI X3.263 compliant performance.
Suitable for End-span and Mid-span PoE applications.
350&600mA current capability.
Designed for IP phone or switch applications.
Compact footprint.
Desingned to withstand IR reflow temperatures up to 240°C.
Recognized by UL 60950-1.
| Part Number | Ports | Insertion Loss (dB max) | Return Loss (dB MIN @100Ω) | Differential to Common Mode Rejection (dB MIN) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 30 MHz | 60 MHz | 100 MHz | ||

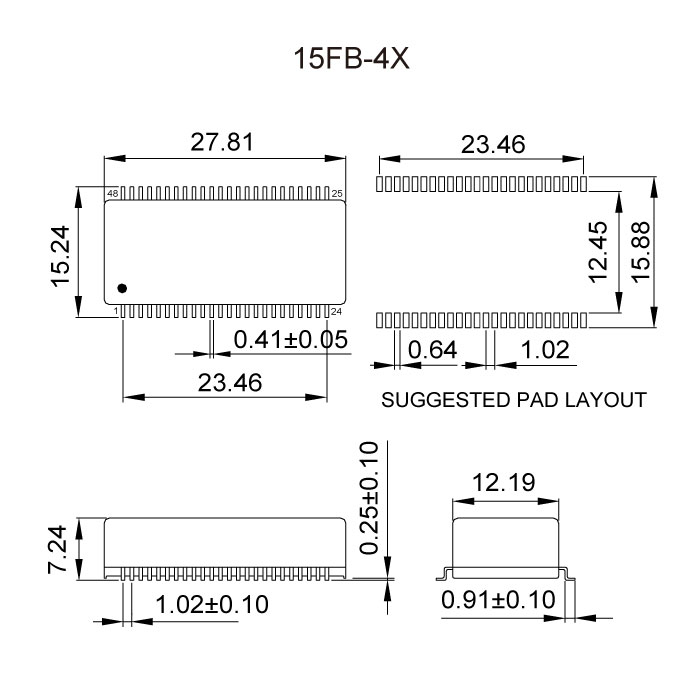

| 15FB-40NL | 4 | -1.2 | -16 | -14 | -13 | -12 | -43 | -37 | -33 |

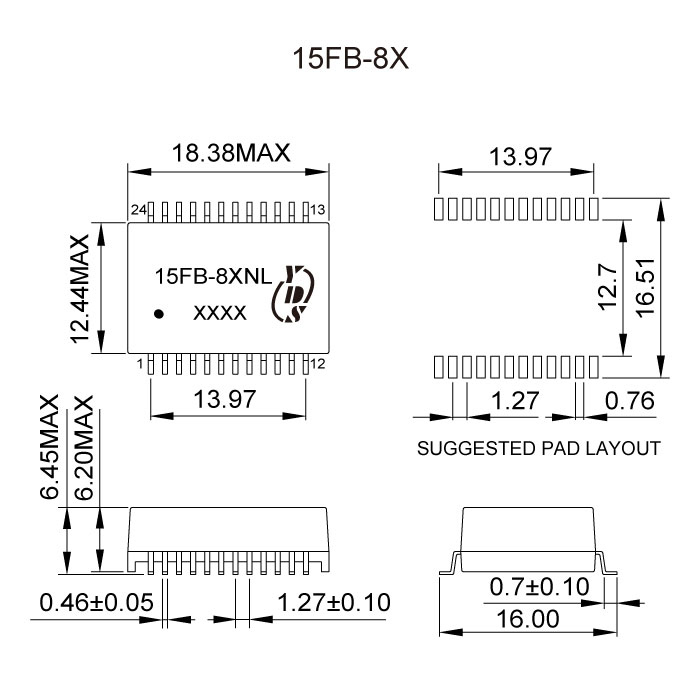

| 15FB-83NL | 1 | -1.2 | -18 | -14 | -13 | -12 | - | - | - |
| 15FB-41NL | 2 | -1.2 | -16 | -14 | -13 | -12 | -43 | -37 | -30 |
| 15FB-73NL | 2 | -1.0 | -18 | -14.4 | -13.1 | -12 | -43 | -37 | -33 |

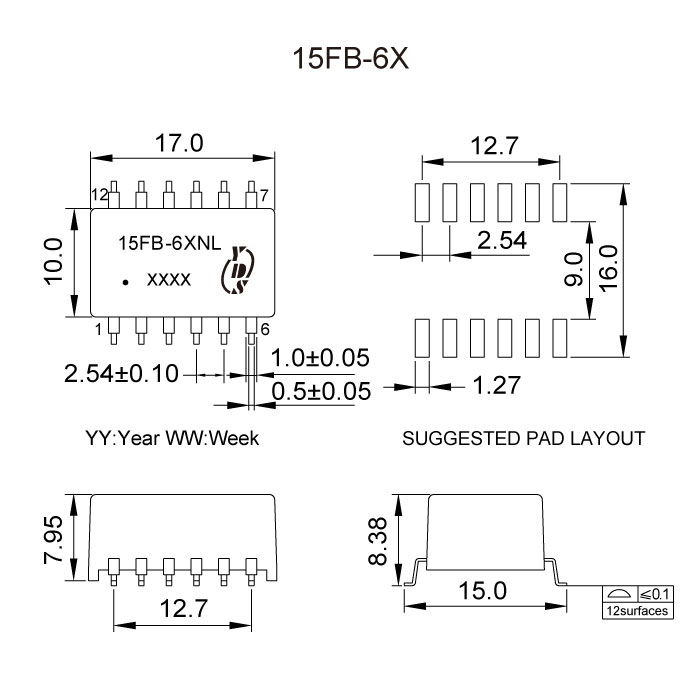

| 15FB-62NL | 1 | -1.2 | -14 | - | -12 | -10 | - | - | - |

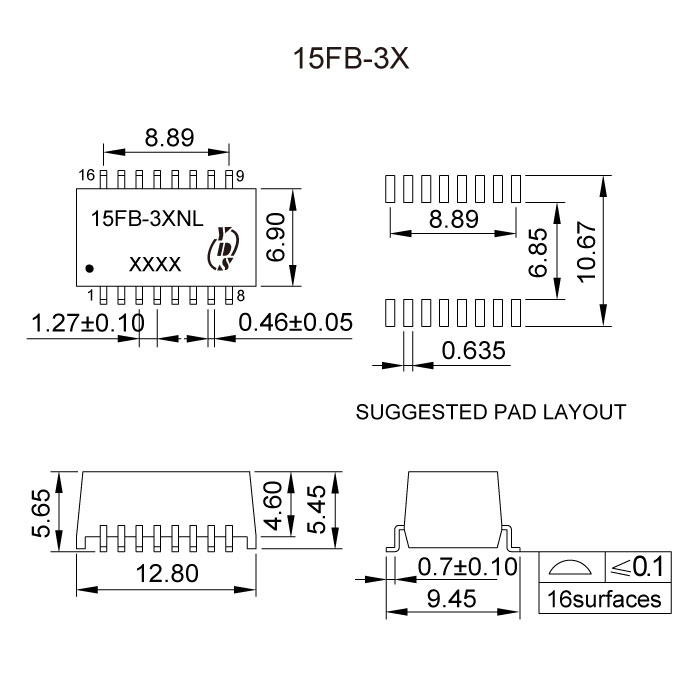

| 15FB-30NL | 1 | -1.2 | -16 | -14 | -13 | -12 | -43 | -37 | -33 |
| 15FB-52NL | - | -1.0 | -16 | -13.5 | -11.6 | -10 | - | - | - |

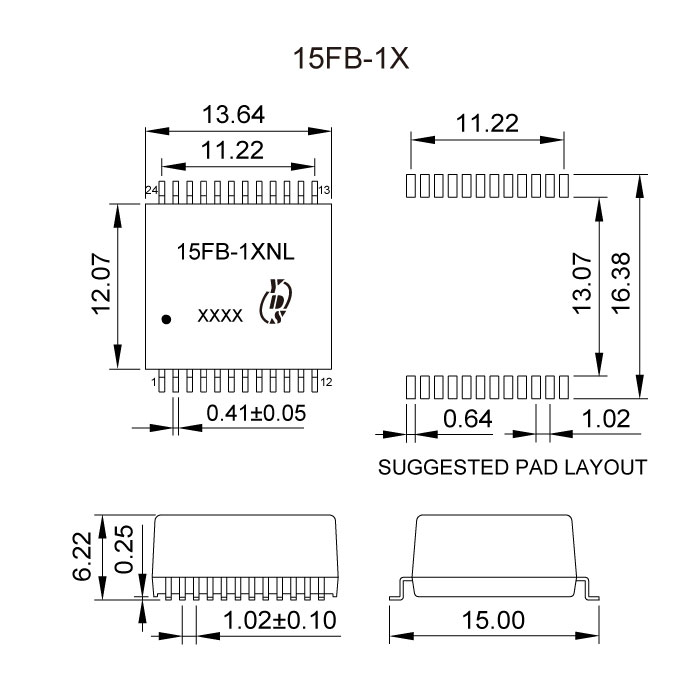

| 15FB-10NL | 1 | -1.2 | -16 | -14 | -13 | -12 | -43 | -37 | -33 |

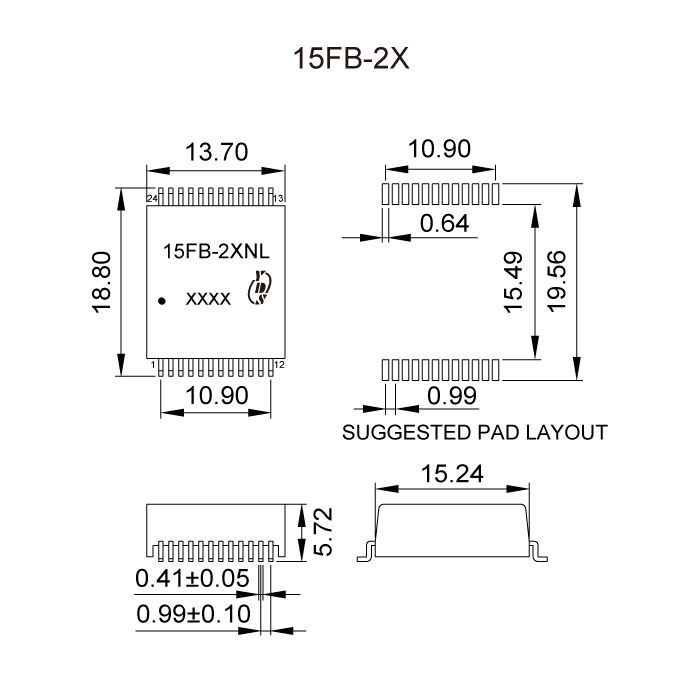

| 15FB-21NL | 2 | -1.0 | -18 | -18 | -16 | -12 | -43 | -37 | -30 |
| Part Number | Crosstalk (dB MIN) | Hipot (Vrms MIN) | POE Current | ||
|---|---|---|---|---|---|
| 30 MHz | 60 MHz | 100 MHz | @60Hz | ||
| 15FB-40NL | -45 | -40 | -30 | 1500 | 350mA |
| 15FB-83NL | -41 | -37 | -33 | 1500 | 750mA |
| 15FB-41NL | -35 | -30 | -25 | 1500 | 600mA |
| 15FB-73NL | -45 | -40 | -35 | 1800 | 350mA |
| 15FB-62NL | - | - | -30 | 1500 | 1.5A |
| 15FB-30NL | -45 | -40 | -35 | 1500 | 600mA |

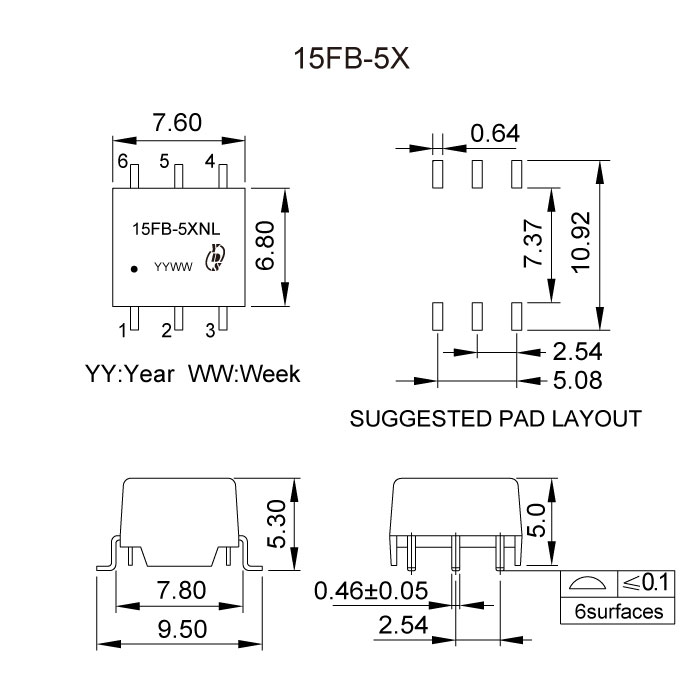

| 15FB-52NL | - | - | -30 | 1500 | 720mA |
| 15FB-10NL | -43 | -37 | -31 | 1500 | 350mA |
| 15FB-21NL | -43 | -37 | -33 | 1500 | 600mA |
Files Download
PoE-15FB-Series.pdf
