PoE 15FB-10G Series 10G Base-T PoE & PoE+ SMD LAN Filter

Availability:
Quantity:
  • PoE 15FB-10G series

  • YDS

10G Base-T SMD Package PoE&PoE+&PoE++ Application Internet Filter


Features


  • Designed for long haul Gigabit Ethernet 10G Base-T, full duplex applications.

  • IEEE 802.3af&at/ANSI X3.263 compliant performance.

  • Suitable for End-span and Mid-span PoE applications.

  • 350&600mA current capability.

  • Designed for IP phone or switch applications.

  • Compact footprint.

  • Desingned to withstand IR reflow temperatures up to 235°C.

  • Recognized by UL 60950-1.




Electrical Specifications@25°C; Operating Temperature 0°C to 70°C


Part Number Insertion Loss
(dB TYP)
Returm Loss
(dB min @100Ω)
Common to Differential Mode Rejection
(dB TYP)
Crosstalk
(dB TYP)
PoE
Current
Hipot
(Vrms min)
1-500 MHz 1-40 MHz 40-500 MHz 1-250 MHz 250-500 MHz 1-100 MHz 100-500 MHz
15FB-97ANL -1.2 -23 -13+30log (f/400MHz) -30 -25 -40 -30 350mA 1500
15FB-97BNL -2.0 -18 -17+10log (f/40MHz) -30 -20 -40 -30 1A 1500
15FB-97CNL -1.2 -18 -17+10log (f/40MHz) -30 -22 -40 -30 600mA 1500


Electrical Specifications@25°C; Operating Temperature -40°C to 85°C


Part Number Insertion Loss
(dB TYP)
Returm Loss
(dB min @100Ω)
Common to Differential Mode Rejection
(dB TYP)
Crosstalk
(dB TYP)
PoE
Current
Hipot
(Vrms min)
1-500 MHz 2-40 MHz 40-500 MHz 1-250 MHz 250-500 MHz 1-100 MHz 100-500 MHz
15FB-97BCNL -2.0 -18 -17+10log (f/40MHz) -30 -20 -40 -30 1A 1500


Dimension

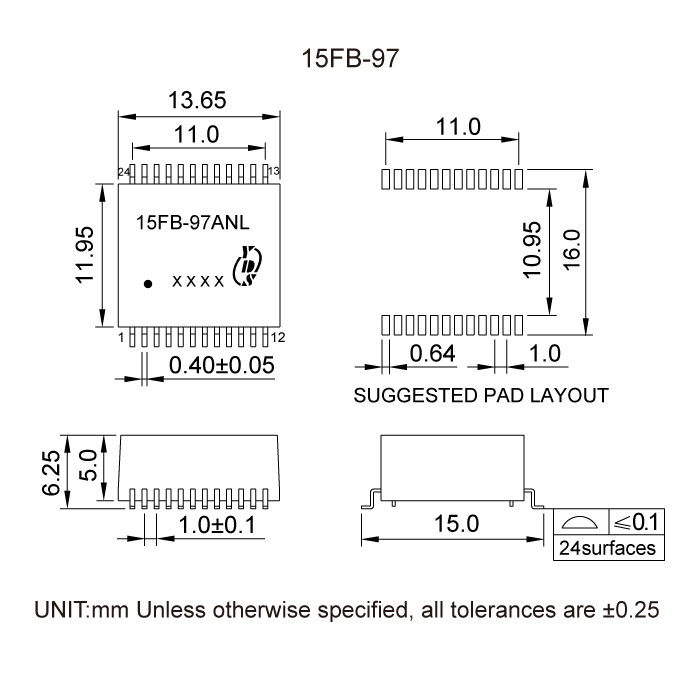

PoE-15FB-10G




 Files Download         PoE-15FB-10G-Series.pdf
