MPI series
YDS

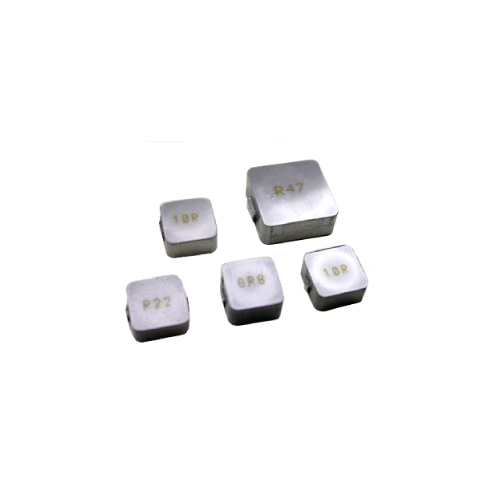

Ultra Low Buzz Noise Power Inductor
Magnetically shielded construction.
Ultra low buzz noise, due to composite construction.
Large current and low DCR.
| Part No. | Inductance L0(μH) | DCR(Ω) MAX | Irms(A) (MAX) | Isat(A) (MAX) |
|---|---|---|---|---|
| MPI0603-R10M32R5A | 0.10 | 1.70 | 32.50 | 42.0 |
| MPI0603-R15M26A | 0.15 | 2.50 | 26.00 | 38.0 |
| MPI0603-R20M24A | 0.20 | 3.00 | 24.00 | 36.0 |
| MPI0603-R22M23A | 0.22 | 2.80 | 23.00 | 36.0 |
| MPI0603-R33M20A | 0.33 | 3.90 | 20.00 | 30.0 |
| MPI0603-R47M17R5A | 0.47 | 4.20 | 17.50 | 26.0 |
| MPI0603-R68M15R5A | 0.68 | 5.50 | 15.50 | 23.0 |
| MPI0603-R82M13A | 0.82 | 8.00 | 13.00 | 20.0 |
| MPI0603-1R0M11A | 1.00 | 10.0 | 11.00 | 16.0 |
| MPI0603-1R5M9A | 1.50 | 15.0 | 9.00 | 14.0 |
| MPI0603-2R2M8A | 2.20 | 20.0 | 8.00 | 12.0 |
| MPI0603-3R3M6A | 3.30 | 30.0 | 6.00 | 10.0 |
| MPI0603-5R6M5R5A | 5.60 | 40.0 | 5.50 | 6.5 |
| MPI0603-6R8M4R5A | 6.80 | 60.0 | 4.50 | 6.0 |
| Part No. | Inductance L0(μH) | DCR(Ω) MAX | Irms(A) (MAX) | IDC(A) (MAX) |
|---|---|---|---|---|
| MPI1004-R36M28A | 0.36 | 1.40 | 28.0 | 40.0 |
| MPI1004-R47M26A | 0.47 | 1.60 | 26.0 | 38.0 |
| MPI1004-R56M25A | 0.56 | 1.90 | 25.0 | 36.0 |
| MPI1004-R68M23A | 0.68 | 2.40 | 23.0 | 32.0 |
| MPI1004-1R0M20A | 1.00 | 3.50 | 20.0 | 28.0 |
| MPI1004-1R5M12A | 1.50 | 7.50 | 12.0 | 20.0 |
| MPI1004-2R2M11R5A | 2.20 | 8.56 | 11.5 | 16.5 |
| MPI1004-3R3M10A | 3.30 | 10.00 | 10.0 | 14.0 |
| MPI1004-4R7M8A | 4.70 | 13.50 | 8.00 | 13.0 |
| MPI1004-5R6M7A | 5.60 | 16.00 | 7.00 | 12.0 |
| MPI1004-8R2M5A | 8.20 | 32.50 | 5.00 | 8.00 |
| Part No. | Inductance L0(μH) | DCR(Ω) MAX | Irms(A) (MAX) | IDC(A) (MAX) |
|---|---|---|---|---|
| MPI1203-R10M43A | 0.10 | 0.96 | 43.0 | 56.0 |
| MPI1203-R15M41A | 0.15 | 1.20 | 41.0 | 50.0 |
| MPI1203-R22M38R5A | 0.22 | 1.30 | 38.5 | 50.0 |
| MPI1203-R33M36R5A | 0.33 | 1.50 | 36.5 | 50.0 |
| MPI1203-R47M32A | 0.47 | 2.00 | 32.0 | 44.0 |
| MPI1203-R60M29A | 0.60 | 2.50 | 29.0 | 42.0 |
| MPI1203-R68M28A | 0.68 | 2.50 | 28.0 | 40.0 |
| MPI1203-R82M25A | 0.82 | 3.00 | 25.0 | 38.0 |
| MPI1203-1R0M24A | 1.00 | 3.50 | 24.0 | 36.0 |
| MPI1203-1R5M19A | 1.50 | 5.50 | 19.0 | 28.0 |
| MPI1203-1R8M16R5A | 1.80 | 7.00 | 16.5 | 24.0 |
| MPI1203-2R2M16A | 2.20 | 8.00 | 16.0 | 20.0 |
| MPI1203-3R3M12A | 3.30 | 12.00 | 12.0 | 18.0 |
| MPI1203-4R7M10A | 4.70 | 15.00 | 10.0 | 16.0 |
| MPI1203-5R6M10A | 5.60 | 18.00 | 10.0 | 14.0 |
| MPI1203-6R8M9A | 6.80 | 22.00 | 9.0 | 13.0 |
| Part No. | Inductance L0(μH) | DCR(Ω) MAX | Irms(A) (MAX) | IDC(A) (MAX) |
|---|---|---|---|---|
| MPI1205PW-R32M41A | 0.36 | 1.1 | 41.0 | 75.0 |
| MPI1205PW-R47M38A | 0.47 | 1.3 | 38.0 | 65.0 |
| MPI1205PW-R50M36A | 0.50 | 1.5 | 36.0 | 55.0 |
| MPI1205PW-R56M36A | 0.56 | 1.5 | 36.0 | 55.0 |
| MPI1205PW-R68M34A | 0.68 | 1.7 | 34.0 | 54.0 |
| MPI1205PW-1R0M29A | 1.00 | 2.5 | 29.0 | 50.0 |
| MPI1205PW-1R5M23A | 1.50 | 4.1 | 23.0 | 48.0 |
| Part No. | Inductance L0(μH) | DCR(Ω) MAX | Irms(A) (MAX) | IDC(A) (MAX) |
|---|---|---|---|---|
| MPI1205HW-8R2M8R5A | 8.20 | 28 | 8.5 | 12.0 |
| MPI1205HW-100M7A | 10.00 | 34 | 7.0 | 9.5 |
| Part No. | Inductance L0(μH) | DCR(Ω) MAX | Irms(A) (MAX) | IDC(A) (MAX) |
|---|---|---|---|---|
| MPI1254-R68M29R7A | 0.68 | 1.5 | 29.7 | 38.8 |
| MPI1254-1R0M25R7A | 1.00 | 2.0 | 25.7 | 33.6 |
| MPI1254-1R2M23R1A | 1.20 | 2.6 | 23.1 | 26.9 |
| MPI1254-2R2M17R8A | 2.20 | 4.5 | 17.8 | 19.6 |
| MPI1254-3R3M14R4A | 3.30 | 7.0 | 14.4 | 17.5 |
| MPI1254-4R7M12R8A | 4.70 | 8.8 | 12.8 | 14.9 |
| MPI | 06 | 03 | - | R10 | M | 32R5A |
|---|---|---|---|---|---|---|
| A | B | C | D | E | F |
A: Series
B: Outside Dia:mm
C: Body High:mm
D: Inductance(μH)
E: Tolerance:K=±10% L=±15% M=±20%
F: Current
»Test Freq. : 100KHz/1V.
»Operating Temp. : -55℃~+125℃
»Inductance drop=20% typ. at Isat.
»ΔT=40℃ rise at Irms
