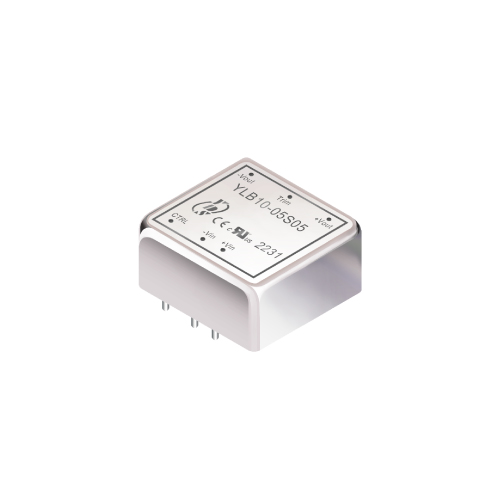

YLB10 Series
YDS
10W 1'' x 1'' 1.6KV isolation 4:1 Wide Input Range DC-DC Power Conversion
10W DIL Package.
4:1 Wide Input Voltage Range.
High Efficiency Up to 91%.
Regulated Output Types.
No Minimum Load Required.
Over Power and Short Circuit Protection.
Operating Temperature: -40°C to +89°C(Without Derating).
UL94V-0 Package Material.
UL/cUL/IEC/EN 62368-1 approved, CB-Report, CE Marking.
EMC standard of EMI EN55032:2015 approved.
EMC standard of EMS EN55035:2017 approved.
EMC standard of Canadian ICES-003 issue7(2020) approved.
EMC standard of 47CFR FCC Part 15 subpart B approved.
Part Number | Input Voltage Range | Input Current (5Vin/12Vin) | Output Voltage | Output Current | Efficiency (5Vin/12Vin) | Maximum capacitor Load | |
---|---|---|---|---|---|---|---|
No Load | Full Load | ||||||
Vdc | (mA TYP) | (mA TYP) | Vdc | mA(TYP) | %(TYP) | μF | |
YLB10-05S05 | 4.5-18 | 20 / 15 | 2247 / 936 | 5 | 2000 | 89 / 89 | 3400 |
YLB10-05S12 | 4.5-18 | 20 / 15 | 2246 / 926 | 12 | 833 | 89 / 90 | 590 |
YLB10-05S15 | 4.5-18 | 20 / 15 | 2223 / 916 | 15 | 667 | 90 / 91 | 390 |
YLB10-05S24 | 4.5-18 | 25 / 20 | 2200 / 927 | 24 | 417 | 91 / 90 | 220 |
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Input Voltage | All Models | 4.5 | 18 | Vdc | ||
Input Surge Voltage (100 ms max.) | All Models | -0.7 | 25 | Vdc | ||
Start-up Voltage | All Models | 4.5 | Vdc | |||
Under Voltage Shutdown | All Models | 3.5 | Vdc | |||
Start-up Time | Constant Resistive Load, Nominal Vin | Power-up | 30 | ms | ||
Remote ON/OFF | 30 | |||||
Input Filter | All Models | Internal Pi type | ||||
Remote ON/OFF (Ctrl PIN Refer To –Vin PIN) | Positive Logic | DC/DC ON | Open or 3.5 Vdc - 12 Vdc | |||
DC/DC OFF | Short or 0 Vdc – 1.2 Vdc | |||||
Input Current of Ctrl PIN | -0.5 | 0.5 | mA | |||
Remote Off Input Current | 3.5 |
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Voltage Tolerance | 100% Load | -2 | +2 | % | ||
Line Regulation | Vin(min) to Vin(max) @100% Load | -0.2 | +0.2 | % | ||
Load Regulation | 0% Load to 100% Load | -0.5 | +0.5 | % | ||
Ripple & Noise (BW=20MHz) | With an 0.47uF MLCC | 15Vout & 24Vout | 150 | mVp-p | ||
5Vout & 12Vout | 100 | |||||
Transient Response Setting Time | 25% Load Step Change | 300 | 500 | us | ||
Transient Response Deviation | 25% Load Step Change | -5 | ±3 | +5 | % | |
Temperature Coefficient | -0.02 | +0.02 | %/℃ | |||
Output Power Protection | % of Io, Hiccup mode, Auto-recovery | 120 | 150 | 180 | % | |
Short Circuit Protection | Continuous [Hiccup Mode], Auto-Recovery | |||||
Over Voltage Protection | 5Vout | 6.2 | Vdc | |||
12Vout | 15 | |||||
15Vout | 18 | |||||
24Vout | 30 |
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Isolation Voltage | Input to Output (60sec) | 1600 | Vdc | |||
Input (Output) To Case (60sec) | 1000 | Vdc | ||||
Isolation Resistance | 500Vdc | 1000 | MΩ | |||
Isolation Capacitance | 100kHz, 1V | 2200 | pF | |||
Switching Frequency | 100% Load, Nominal Input | 200 | KHz | |||
Operating Ambient Temperature (Power Derating See Derating Graph) | Nominal Vin, 100% Load | YLB10-05S05, YLB10-05S12 | -40 | 85.5 | ℃ | |
YLB10-05S15 | 87.4 | |||||
YLB10-05S24 | 89.4 | |||||
Thermal Impedance | 20LFM | 15.8 | ℃/W | |||
100LFM | 11.3 | |||||
200LFM | 9.2 | |||||
400LFM | 6.3 | |||||
Maximum Case Temperature | 105 | ℃ | ||||
Storage Temperature | -55 | 125 | ℃ | |||
Humidity | Non-Condensing | 5 | 95 | % | ||
Cooling | Natural Convection | |||||
Case Material | Copper | |||||
Potting Material | Silicone (UL94-V0) | |||||
MTBF | MIL-HDBK-217F@25℃ (calculated) | 1,468,837 | Hours | |||
Weight | 17.2 | g | ||||

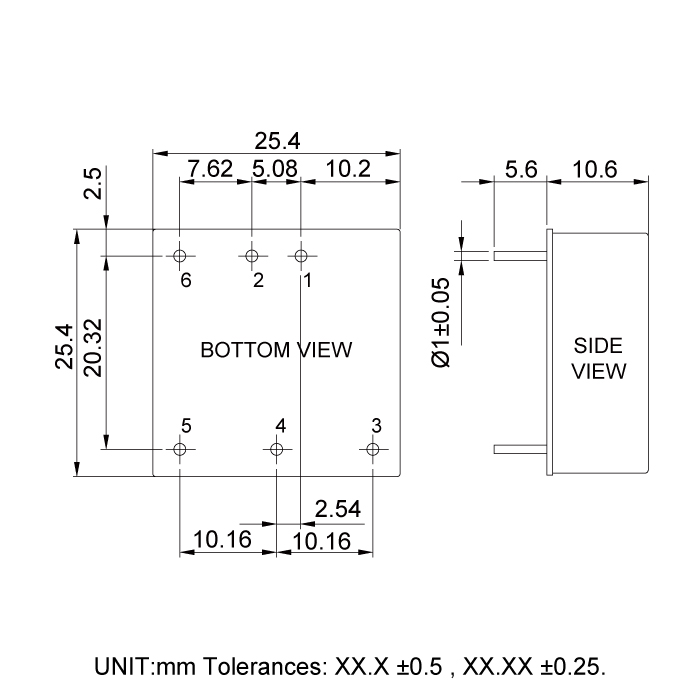

Dimensions | 25.4 x 25.4 x 10.6 | mm |
Files Download YLB10-Series.pdf
