LGA6 series
YDS

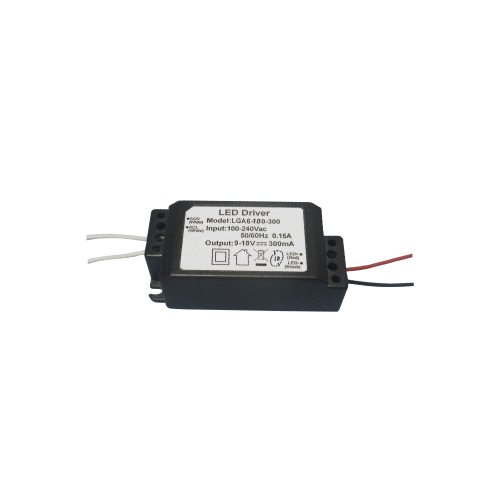

3~6Watt 3KVac Isolation Non-Dimmable LED Driver
Wide Input Voltage 90 to 264VAC,47 to 63Hz
High Efficiency Up To 80%
Protection: Short Circuit /Over current/Over voltage
Meet EMI EN55022 & EMS EN55024 standard
3 Years Warranty
ROHS Compliant
| Part Number | Constant Current Region | Max Output Current | Output Power | Efficiency |
|---|---|---|---|---|
| (V) | (mA) | (W) Max | %(TYP) | |
| LGA6-120-300 | 6.0-12.0 | 300 | 3.6 | 78 |
| LGA6-180-300 | 9.0-18.0 | 300 | 5.4 | 79 |
| LGA6-120-350 | 6.0-12.0 | 350 | 4.2 | 79 |
| LGA6-180-350 | 9.0-18.0 | 350 | 6.3 | 80 |
| LGA6-095-500 | 5.0-9.5 | 500 | 4.8 | 79 |
| LGA6-120-500 | 6.0-12.0 | 500 | 6.0 | 80 |
| LGA6-045-700 | 3.0-4.5 | 700 | 3.2 | 78 |
| LGA6-090-700 | 4.5-9.0 | 700 | 6.3 | 80 |
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated input voltage | Vo, Io nom | 100-240 | Vac | |||
| Voltage Range | Vo, Io nom | 90 | 264 | Vac | ||
| Line Frequency | Vi nom,Ionom | 47 | 50/60 | 63 | Hz | |
| Inrush Current | Io nom | Vi:115VAC | 10 | A | ||
| Vi:230VAC | 20 | A | ||||
| Power Factor | PF> 0.50 / 115Vac,230Vac at full load | |||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | Input / Output | 3KVac/ 5mA/5Secs | |||
| Current Accuracy | Vi=100-240Vac | ± 3 | ± 5 | % | |
| Operating Temperature | Operating at Vi nom, Io nom | -20 | +50 | ℃ | |
| Protection | Over Current | >108% rated output power(Constant current limiting) | |||
| Protection type: Recovers automatically after fault condition is removed | |||||
| Over Voltage | 120%-150% rated output Voltage | ||||
| Protection type: Recovers automatically after fault condition is removed | |||||
| Short circuit | Recovers automatically after fault condition is removed | ||||
Files Download
LGA6-Series.pdf
