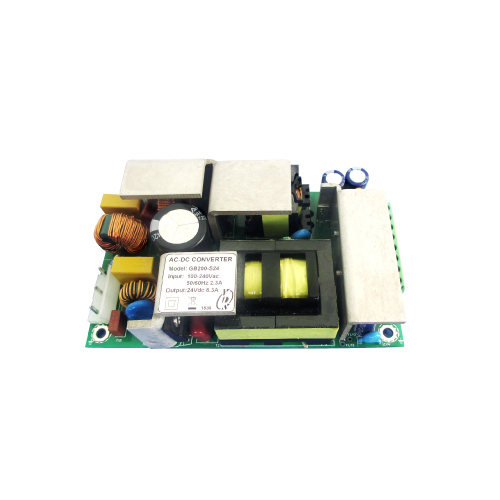

200W 3KVac Isolation Single Output Open Frame AC to DC Power Conversion
Universal input 90~264VAC.
High efficiency at 93% typical.
Protection: short circuit/overload/over voltage/over temperature.
Built-in active PFC function.
5" x 3" miniature size.
No load power consumption<0.5W.
3 years warranty.
| Part Number | Output Voltage | Output Current | Ripple & Noise | Efficiency | Output Power(W) |
|---|---|---|---|---|---|
| V | MAX | mVp-p(Max) (note) | %(TYP) | Rated | |
| GB200-S12 | 12 | 16.7A | 200 | 92 | 200.4 |
| GB200-S15 | 15 | 13.4A | 200 | 92 | 201 |
| GB200-S24 | 24 | 8.4A | 250 | 93 | 201.6 |
| GB200-S27 | 27 | 7.5A | 250 | 93 | 202.5 |
| GB200-S48 | 48 | 4.2A | 350 | 93 | 201.6 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Rated Input Voltage | Io nom | 100 ~ 240 | Vac | ||
| Voltage Range | Io nom | 90 | 264 | Vac | |
| Io nom | 127 | 370 | Vdc | ||
| Frequency | 47 | 50/60 | 63 | Hz | |
| Inrush Current | At 115Vac | 30 | A | ||
| At 230Vac | 60 | A | |||
| Input Over-Current Protection | VDE/UL/CCC FUSE 3.15A/250V | ||||
| Power Factor | PF> 0.93 / 230Vac PF> 0.98 / 115Vac at full load | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | ± 2 | % | ||
| Minimum Load | Vi nom | 0 | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 1.0 | % | ||
| Load Regulation | Vi nom, Io min…Io nom | ± 2.0 | % | ||
| Protection | Over Load | 115% -150% rated output power | |||
| Protection type: Shut off o/p voltage, re-power on to recover | |||||
| Over Voltage | 120%-150% rated output Voltage | ||||
| Protection type: Shut off o/p voltage, re-power on to recover | |||||
| Short circuit | Protection type: Shut off o/p voltage, re-power on to recover | ||||
| Over temperature | Protection type: Shut off o/p voltage, re-power on to recover | ||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| MTBF | MIL-HDBK-217F(25℃) | 100,000 | Hrs | ||
| Isolation Voltage | Input To Output | 3000V AC 5mA/5Secs | |||
| Input To Ground | 2000V AC 5mA/5Secs | ||||
| Output To Ground | 500V AC 5mA/5Secs | ||||

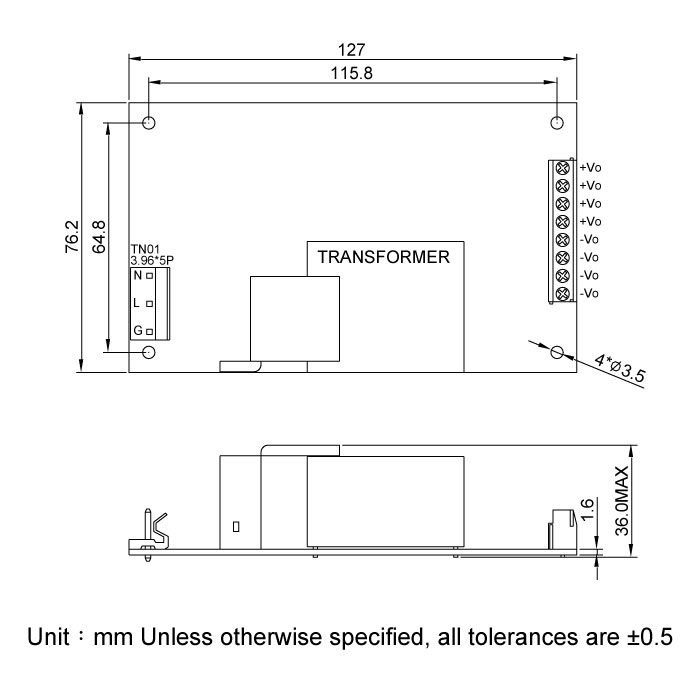

| Size | 127x76.2x36.0(5.0x3.0x1.42) | Mm (inches) | |||
| Weight | 327 | g | |||
| Operating Temperature | With Derating | -20 | +70 | ℃ | |
| Storage Temperature | -45 | +85 | ℃ | ||
Files Download
GB200 Series.pdf
