10W 4KVac Isolation Medical Application Open Frame AC to DC Power Conversion
Universal input 80~264VAC.
Medical safety design refer to (2 X MOPP) accroding to ANSI/AAMI ES60601-1 and IEC/EN60601-1.
Suitable for BF application with appropriate system consideration.
Extremely low leakage current.
EMI class B for class Ⅱ configuration.
Protection: short circuit/overload/over voltage/over temperature.
No minimum load required.
3 years warranty.
ROHS compliant.
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max(Note) | (TYP %) | |
| GB10M-S05 | 10 | 5 | 2000 | 100 | 79 |
| GB10M-S12 | 10.2 | 12 | 850 | 180 | 82 |
| GB10M-S15 | 10 | 15 | 670 | 180 | 82 |
| GB10M-S24 | 11 | 24 | 460 | 200 | 83 |
Note:Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 80 | 264 | Vac | |
| DC in | 105 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 50/60 | 63 | Hz | |
| Input Current | Io nom | Vi:115VAC | 25 | A | ||
| Vi:230VAC | 45 | A | ||||
| Input Current (Full load) | 0.3A (115Vac) 0.2A (230Vac) | |||||
| Input Fuse | VDE/UL/CCC FUSE 2.5A/250V (Slow blow) | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 5V Models | ± 3 | % | ||
| 12/15/24V Models | ± 2 | % | ||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 0.3 | % | |||
| Load Regulation | Vi nom, Io min…Io nom | ± 0.5 | % | |||
| Protection | Overload | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Short circuit | Recovers automatically after fault condition is removed | |||||
| Over Voltage | 110%-150% rated output Voltage | |||||
| Protection type: Zener diode clamp | ||||||
| Over Temperature | Protection type: Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | Input / Output | 4KVac/ 5mA/60Secs | |||
| Isolation Resistance | Input / Output,@500Vdc | 100 | MΩ | ||
| Operating Temperature | Operating at Vi nom, Io nom | -25 | +75 | ℃ | |
| Storage Temperature | Non Operational | -40 | +100 | ℃ | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||

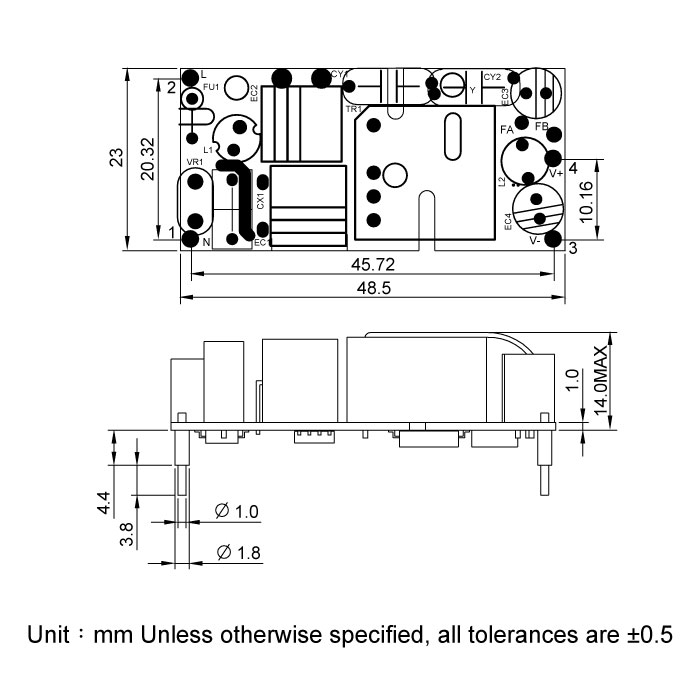

| Dimension | L48.5x W23 x H14.0mm | ||||
| Cooling | Free air convection | ||||
Files Download
GB10M Series.pdf
