GB100A Series
YDS
100W 3KVac Isolation Open Frame Miniature Size AC to DC Power Conversion
Universal Input 90~264VAC.
High Efficiency at 94% Typical.
Protection: Short Circuit /Overload/Over voltage/Over temperature.
Built-in active PFC function.
3" x 2" miniature size.
No load power consumption<0.3W.
2 Years Warranty.
| Part Number | Output Voltage | Output Current | Ripple & Noise | Efficiency | Output Power(W) |
|---|---|---|---|---|---|
| V | MAX | mVp-p(Max) (note) | %(TYP) | Rated | |
| GB100A-S12 | 12 | 8.3A | 100 | 91 | 100 |
| GB100A-S15 | 15 | 6.6A | 120 | 92 | 100 |
| GB100A-S24 | 24 | 4.16A | 150 | 93 | 100 |
| GB100A-S27 | 27 | 3.7A | 150 | 94 | 100 |
| GB100A-S48 | 48 | 2.08A | 200 | 93.5 | 100 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Rated Input Voltage | Io nom | 100 ~ 240 | Vac | ||
| Voltage Range | Io nom | 90 | 264 | Vac | |
| Io nom | 127 | 370 | Vdc | ||
| Frequency | 47 | 50/60 | 63 | Hz | |
| Inrush Current | At 115Vac | 30 | A | ||
| At 230Vac | 60 | A | |||
| Input Over-Current Protection | VDE/UL/CCC FUSE 3.15A/250V | ||||
| Power Factor | PF> 0.93 / 230Vac PF> 0.98 / 115Vac at full load | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | ± 2 | % | ||
| Minimum Load | Vi nom | 0 | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 0.5 | % | ||
| Load Regulation | Vi nom, Io min…Io nom | ± 1.0 | % | ||
| Protection | Over Load | Above 110% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Voltage | 110%-150% rated output Voltage | ||||
| Protection type: Shut off o/p voltage, re-power on to recover | |||||
| Short circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||
| Over temperature | Protection type: Shut off o/p voltage, re-power on to recover | ||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| MTBF | MIL-HDBK-217F(25℃) | 100,000 | Hrs | ||
| Isolation Voltage | Input To Output | 3000V AC 5mA/5Secs | |||
| Input To Ground | 2000V AC 5mA/5Secs | ||||
| Output To Ground | 500V AC 5mA/5Secs | ||||

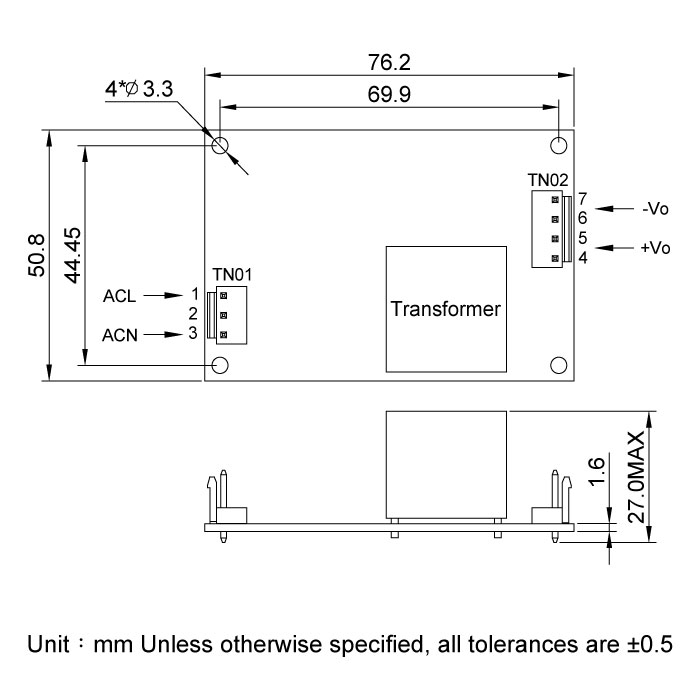

| Size | 76.2x50.8x27.0MAX | mm | |||
| Weight | 125 | g | |||
| Operating Temperature | With Derating | -20 | +70 | ℃ | |
| Storage Temperature | -45 | +85 | ℃ | ||
Files Download
GB100A-Series.pdf
