GB040 Series
YDS
40W 3KVac Isolation Dual & Triple Output Open Frame AC to DC Power Conversion
Universal input 90~264VAC.
High efficiency at 80% typical.
Protection: short circuit/overload/over voltage.
Internal input filter.
3 years warranty.
| Part Number | Output Voltage | Output Current(A) | Voltage Accuracy | Line Reg. | Load Reg. | Efficiency | ||
|---|---|---|---|---|---|---|---|---|
| Convection cooled | Max 18 CFM | |||||||
| (V) | MIN | RATED | MAX | (%) | (%) | (%) | (%) | |
| GB040-D0512 | 5(Vo1) | 0.64 | 3.2 | 5.0 | ± 3 | ± 1 | ± 3 | 79 |
| 12(Vo2) | 0.4 | 2.0 | 2.5 | ± 5 | ± 2 | ± 5 | ||
| GB040-D0524 | 5(Vo1) | 0.4 | 3.2 | 5.0 | ± 3 | ± 1 | ± 3 | 80 |
| 24(Vo2) | 0.2 | 1.0 | 1.5 | ± 5 | ± 2 | ± 5 | ||
| GB040-T051205 | 5(Vo1) | 0.4 | 3.0 | 5.0 | ± 3 | ± 1 | ± 3 | 75 |
| 12(Vo2) | 0.2 | 2.0 | 2.5 | ± 5 | ± 2 | ± 5 | ||
| -5(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| GB040-T051212 | 5(Vo1) | 0.4 | 3.0 | 5.0 | ± 3 | ± 1 | ± 3 | 75 |
| 12(Vo2) | 0.2 | 2.0 | 2.5 | ± 5 | ± 2 | ± 5 | ||
| -12(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| GB040-T051515 | 5(Vo1) | 0.4 | 3.0 | 5.0 | ± 3 | ± 1 | ± 3 | 75 |
| 15(Vo2) | 0.2 | 2.0 | 2.5 | ± 5 | ± 2 | ± 5 | ||
| -15(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| GB040-T052412 | 5(Vo1) | 0.4 | 3.0 | 5.0 | ± 3 | ± 1 | ± 3 | 75 |
| 24(Vo2) | 0.2 | 2.0 | 2.5 | ± 5 | ± 2 | ± 5 | ||
| -12(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| GB040-T052405 | 5(Vo1) | 0.4 | 3.0 | 5.0 | ± 3 | ± 1 | ± 3 | 75 |
| 24(Vo2) | 0.2 | 1.0 | 1.5 | ± 5 | ± 2 | ± 5 | ||
| -5(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| GB040-T030512 | 3.3(Vo1) | 0.4 | 5.0 | 7.0 | ± 3 | ± 1 | ± 3 | 70 |
| 5(Vo2) | 0.2 | 2.0 | 3.5 | ± 5 | ± 2 | ± 5 | ||
| -12(Vo3) | 0 | 0.3 | 0.5 | ± 5 | ± 1 | ± 5 | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Rated Input Voltage | Io nom | 100 ~ 240 | Vac | ||
| Voltage Range | Io nom | 90 | 264 | Vac | |
| Frequency | 47 | 50/60 | 63 | Hz | |
| Inrush Current | At 100Vac | 20 | A | ||
| At 240Vac | 40 | A | |||
| Input Fuse | VDE/UL/CCC FUSE 2.5A/250V | ||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom(Full load) | See models list | ||||
| Minimum Load | Vi nom | See models list | ||||
| Protection | Over Load | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Over Voltage(Main Output) | 120%-150% rated output Voltage | |||||
| Protection type: Shut off o/p voltage, re-power on to recover | ||||||
| Short circuit | Recovers automatically after fault condition is removed | |||||
| Ripple & Noise | Vi nom, Io nom BW=20MHz | Main output | 100 | mVp-p | ||
| Supplement Output | 150 | mVp-p | ||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Operating at Vi nom, Io nom | -20 | +70 | ℃ | |
| Derating | Vi nom,Io nom+51 to 71℃ | 2 | %/℃ | ||
| Storage Temperature | Non Operational | -40 | +85 | ℃ | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||

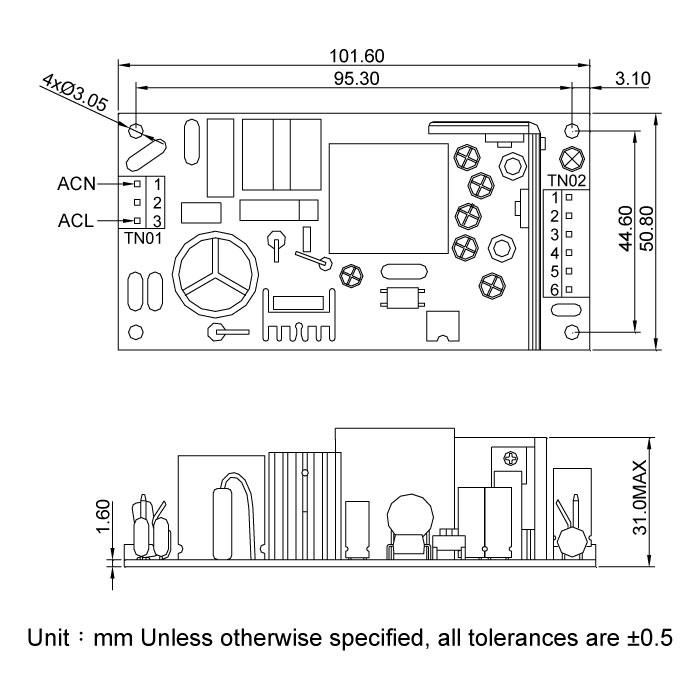

| Dimension | L101.60 x W50.80 x H31.0 | ||||
| Cooling | Free air convection | ||||
Files Download
GB040-Series.pdf
