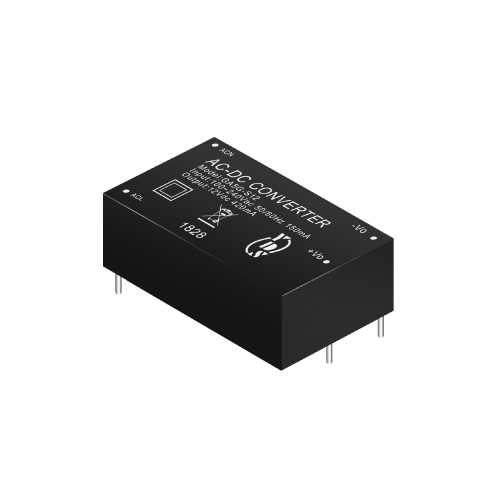

5W 3KVac Isolation Regulated Output Green AC to DC Power Conversion Module
Universal input 85~265VAC.
High efficiency up to 82%.
Protection: short circuit/overload/over voltage.
Energy efficiency conforms to DOE6,CoC V5 T2.
No load power consumption<0.075W.
3 years warranty.
ROHS compliant.
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max | (TYP %) | |
| GA5G-S05-X | 5 | 5 | 1000 | 200 | 75 |
| GA5G-S12-X | 5.04 | 12 | 420 | 200 | 81 |
| GA5G-S15-X | 4.95 | 15 | 330 | 200 | 81 |
| GA5G-S24-X | 5.52 | 24 | 230 | 200 | 82 |
Note:
X= ONE digit representing the output power (W) The output power is rising in steps of 1W from 1W to the max. output Power; When the output power is maximum power, X is omitted.
E.g:3W=GA5G-S05-3, GA5G-S15-3 5W=GA5G-S05, GA5G-S15
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 80 | 265 | Vac | |
| DC in | 100 | 370 | Vdc | |||
| Line Frequency | Vi nom. Io nom | 47 | 63 | Hz | ||
| Inrush Current | Io nom | Vi: 115VAC | 20 | A | ||
| Vi: 230VAC | 40 | A | ||||
| Leakage Current | 0.25 | mA | ||||
| Input Current (Full load) | 120mA Max.(115Vac) 80mA Max.(230Vac) | |||||
| External Fuse (Recommend) | VDE / UL / CCC FUSE 1.0A / 250V (Slow blow) | |||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | ± 5 | % | ||
| Minimum Load | Vi nom | 0 | % | ||
| Line Regulation | Io nom, Vi min....Vi max | ± 1.0 | % | ||
| Load Regulation | Vi nom, Io min....Io nom | ± 3.0 | % | ||
| Protection | Over load | Above 115% rated output power | |||
| Protection type: Recovers automatically after fault condition is removed | |||||
| Over Voltage | 120%-150% rated output Voltage | ||||
| Protection type: Zener diode clamp | |||||
| Short circuit | Recovers automatically after fault condition is removed | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 100 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Refer to Temperature Derating Graph | -25 | +70 | ℃ | |
| Storage Temperature | Non Operational | -40 | +85 | ℃ | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | EN62368-1 approved | ||||
| EMI Conduction & Radiation | Compliance to EN55032 | ||||
| EMS Immunity | Compliance to EN55024 | ||||

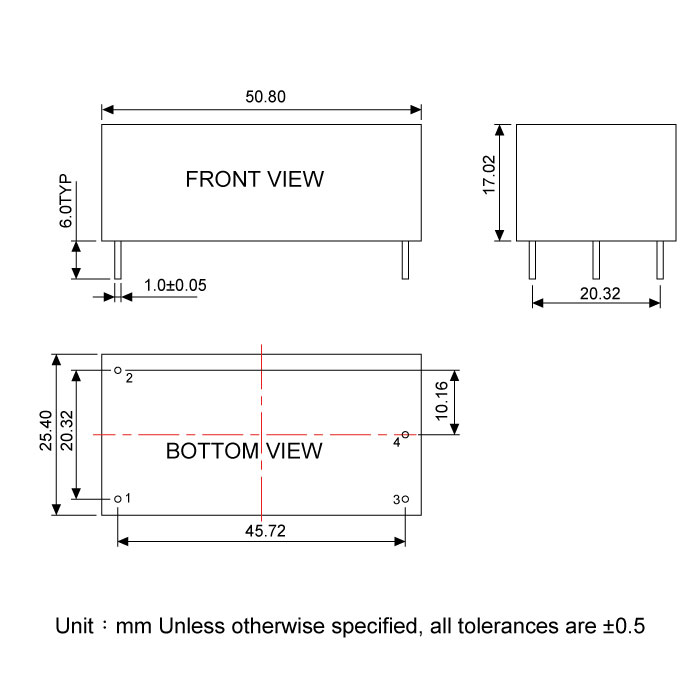

| Dimension | L50.80x W25.40 x H17.02mm | ||||
| Cooling | Free air convection | ||||
Files Download
GA5G-Series.pdf
