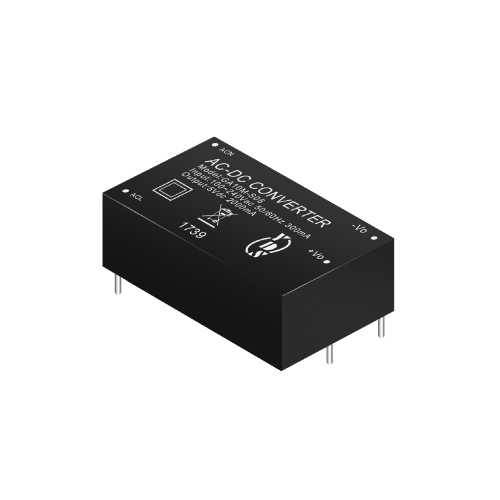

GA10M Series 10W 4KVac Isolation Regulated Output AC-DC Converter (Module)

Availability:
Quantity:
  • GA10M Series

  • YDS

10W 4KVac Isolation Regulated Output AC to DC Power Conversion Module


Features


  • Universal input 80~264VAC.

  • Medical safety design refer to (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1.

  • Suitable for BF application with appropriate system consideration.

  • No load power consumption<0.1W.

  • Extremely low leakage current.

  • EMI class B for class Ⅱ configuration.

  • Protection: short circuit/overload/over voltage/over temperature.

  • No minimum load required.

  • 3 years warranty.

  • ROHS compliant.




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Wattage Output Voltage Output Current Ripple & Noise Efficiency
(W) (VDC) (mA) (mV) max(Note) (TYP %)
GA10M-S05 10 5 2000 100 79
GA10M-S12 10.2 12 850 180 82
GA10M-S15 10 15 670 180 82
GA10M-S24 11 24 460 200 83

Note:Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.



Input Specifications


Parameters Conditions Min Typ Max Units
Rated Input Voltage Vo, Io nom   100 ~ 240   Vac
Voltage Range Vo, Io nom AC in 80   264 Vac
DC in 105   370 Vdc
Line Frequency Vi nom, Io nom 47 50/60 63 Hz
Inrush Current Io nom Vi:115VAC     25 A
Vi:230VAC     45 A
Input Current
(Full load)
0.3A (115Vac)  0.2A (230Vac)
Input Fuse VDE/UL/CCC  FUSE 2.5A/250V (Slow blow)


Output Specifications


Parameters Conditions Min Typ Max Units
Output Voltage Accuracy Vi nom, Io nom 5V Models     ± 3 %
12/15/24V Models     ± 2 %
Minimum Load Vi nom 0     %
Line Regulation Io nom, Vi min…Vi max   ± 0.3   %
Load Regulation Vi nom, Io min…Io nom   ± 0.5   %
Protection Overload Above 110% rated output power
Protection type: Recovers automatically after fault condition is removed
Short circuit Recovers automatically after fault condition is removed
Over Voltage 110%-150% rated output Voltage
Protection type: Zener diode clamp
Over Temperature Protection type: Shut down o/p voltage, recovers automatically after temperature goes down


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Voltage Input / Output 4KVac/ 5mA/60Secs
Isolation Resistance Input / Output,@500Vdc 100
Operating Temperature Operating at Vi nom, Io nom -25   +85
Storage Temperature Non Operational -40   +100
Relative Humidity Vi nom, Io nom     95 % RH
Dimension L50.80x W25.40 x H17.02mm
Cooling Free air convection

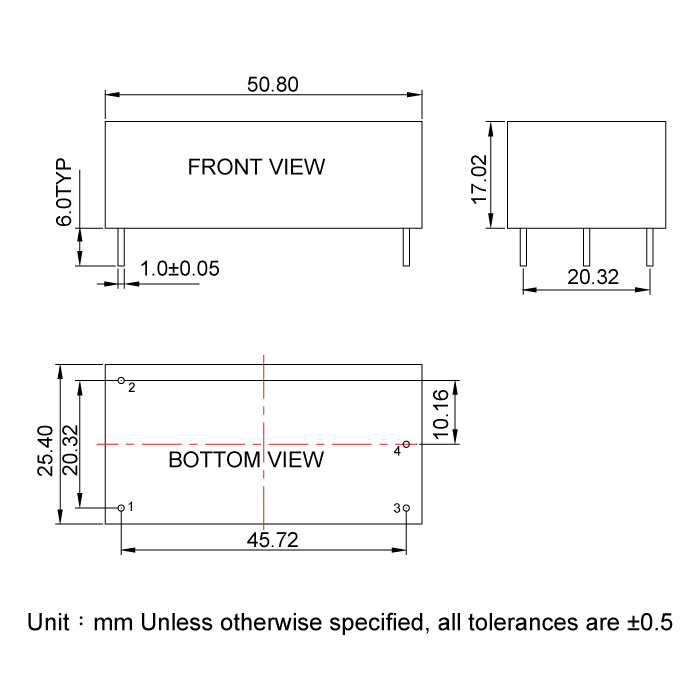

Dimension


GA10M



 Files Download     GA10M-Series.pdf
