GA10G Series
YDS
10W 3KVac Isolation Regulated Output Green AC to DC Power Conversion Module
Universal input 85~265VAC.
High efficiency up to 82%.
Protection: short circuit/overload/over voltage.
Energy efficiency conforms to DOE6.
No load power consumption<0.1W.
3 years warranty.
ROHS compliant.
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max | (TYP %) | |
| GA10G-S05-X | 5 | 5 | 2000 | 200 | 76 |
| GA10G-S12-X | 10.08 | 12 | 840 | 200 | 81 |
| GA10G-S15-X | 10.05 | 15 | 670 | 200 | 81 |
| GA10G-S24-X | 10.08 | 24 | 420 | 200 | 82 |
Note:
X= ONE digit representing the output power (W) The output power is rising in steps of 1W from 1W to the max. output Power; When the output power is maximum power, X is omitted. E.g:5W=GA10G-S05-5,GA10G-S15-5 10W=GA10G-S05,GA10G-S15
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 85 | 265 | Vac | |
| DC in | 100 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 63 | Hz | ||
| Inrush Current | Io nom | Vi: 115VAC | 30 | A | ||
| Vi: 230VAC | 60 | A | ||||
| Leakage Current | 0.25 | mA | ||||
| Input Current (Full load) | 250mA TYP.(115Vac) 150mA TYP.(230Vac) | |||||
| External Fuse (recommend) | VDE/UL/CCC FUSE 2.5A/250V (Slow blow) | |||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | ± 5 | % | ||
| Minimum Load | Vi nom | 0 | % | ||
| Line Regulation | Io nom, Vi min....Vi max | ± 2.0 | % | ||
| Load Regulation | Vi nom, Io min....Io nom | ± 3.0 | % | ||
| Protection | Over Load | Above 115% rated output power | |||
| Protection type: Recovers automatically after fault condition is removed | |||||
| Over Voltage | 120%-150% rated output Voltage | ||||
| Protection type: Zener diode clamp | |||||
| Short circuit | Recovers automatically after fault condition is removed | ||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor arcoss each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Refer to Temperature Derating Graph | -25 | +70 | ℃ | |
| Storage Temperature | Non Operational | -40 | +85 | ℃ | |
| Relative Humidity | Vi nom,Io nom | 95 | % RH | ||
| Safety Standards | Design refer to EN62368-1 | ||||
| EMI Conduction & Radiation | Design refer to EN55032 | ||||
| EMS Immunity | Design refer to EN55024 | ||||

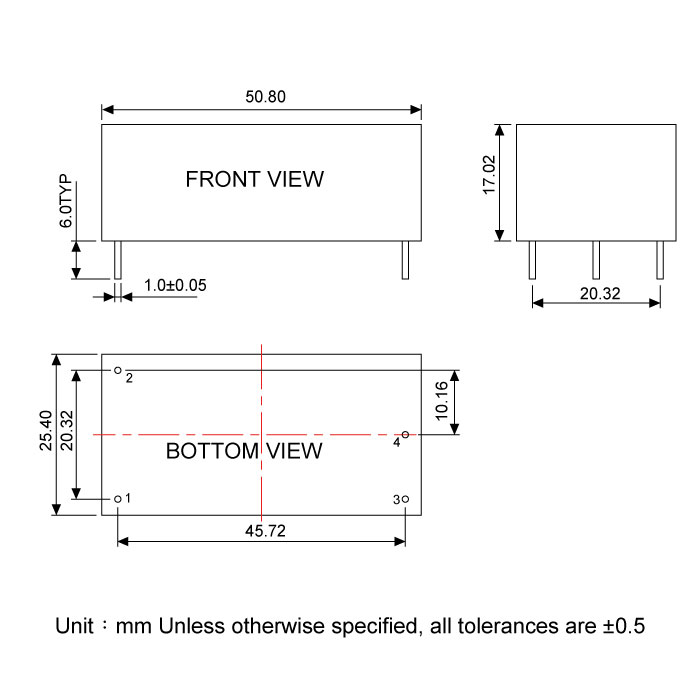

| Dimension | L50.80x W25.40 x H17.02mm | ||||
| Cooling | Free air convection | ||||
Files Download
GA10G-Series.pdf
