GA003/GB003/GC003 Series
YDS
3W power 3KVac Isolation AC to DC Power Conversion
Features
AC/DC power module.
Universal input 90~264VAC.
High efficiency up to 82%.
Protection: short circuit/overload.
3 years warranty.
ROHS compliant.
| Part Number | Output Wattage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| (W) | Vdc | mA | % (TYP) | |
| GX003-S03(B) | 2.64 | 3.3 | 800 | 70 |
| GX003-S05(B) | 3.0 | 5 | 600 | 72 |
| GX003-S06(B) | 3.0 | 6 | 500 | 72 |
| GX003-S07(B) | 3.0 | 7 | 425 | 72 |
| GX003-S08(B) | 3.0 | 8 | 375 | 75 |
| GX003-S09(B) | 3.0 | 9 | 333 | 75 |
| GX003-S10(B) | 3.0 | 10 | 300 | 78 |
| GX003-S12(B) | 3.0 | 12 | 250 | 78 |
| GX003-S13(B) | 3.0 | 13 | 230 | 78 |
| GX003-S14(B) | 3.0 | 14 | 215 | 78 |
| GX003-S15(B) | 3.0 | 15 | 200 | 79 |
| GX003-S16(B) | 3.2 | 16 | 200 | 79 |
| GX003-S18(B) | 3.0 | 18 | 167 | 80 |
| GX003-S24(B) | 3.0 | 24 | 125 | 80 |
| GX003-S27(B) | 3.0 | 27 | 110 | 80 |
| GX003-S36(B) | 3.0 | 36 | 83 | 82 |
| GX003-S48(B) | 3.0 | 48 | 62.5 | 82 |
Notes:
1."X" Represent module version
A: Represent unit with potting within a plastic enclosure;
B: Represent unit with open frame version without enclosure;
C: Represent unit with potting within a plastic enclosure wired
2.Suffix B=Refers to the appearance plus BASE，E.g:GA003-S05B，GA003-S12B (Only applicable to GA003 series)
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | VAC | |||
| Input Voltage Range | Vo, Io nom | AC in | 90 | 264 | VAC | |
| DC in | 120 | 370 | VDC | |||
| Line Frequency | Vi nom. Io nom | 47 | 50 / 60 | 63 | Hz | |
| Inrush Current | Io nom | Vi: 115VAC | 10 | A | ||
| Vi: 230VAC | 18 | A | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Accuracy | For external circuit please refer to recommended circuit | ± 1 | ± 3 | % | |
| Minimun Load | Vi nom | 0 | % | ||
| Line Regulation | Io nom, Vi min....Vi max | ± 1 | % | ||
| Load Regulation | Vi nom, Io min....Io nom | ± 2 | % | ||
| Transient Recovery Time | Vi nom, Io nom = I ← → 0.5 Io nom | 300 | uS | ||
| Ripple & Noise | Vi nom, Io nom, BW=20MHz (Tested as Figure2) | 100 | mVp-p | ||
| Efficiency | Vi nom, Io nom, Po / Pi | Up to 82%, See models list | |||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / output | 3.0KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / output,@500Vdc | 100 | MΩ | ||
| Ambient Temperature | Operating at Vi nom, Io nom | -20 | +70 | ℃ | |
| Derating | Vi nom, Io nom +51 to 71℃ | 2 | % / ℃ | ||
| Case Temperature | Operating at Vi nom, Io nom | +85 | ℃ | ||
| Storage Temperature | Nom operational | -40 | +85 | ℃ | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | EN62368-1 approved | ||||
| EMI Conduction & Radiation | Compliance to EN55032 | ||||
| EMS Immunity | Compliance to EN55024 | ||||

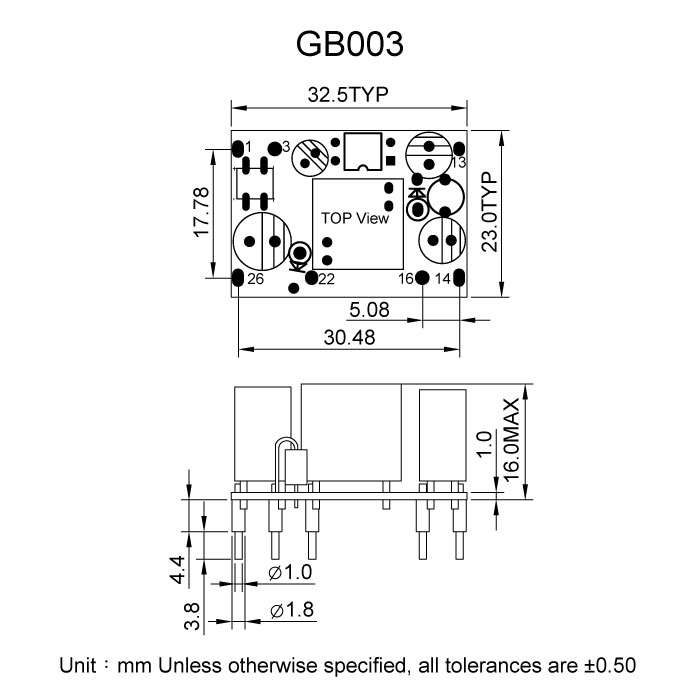

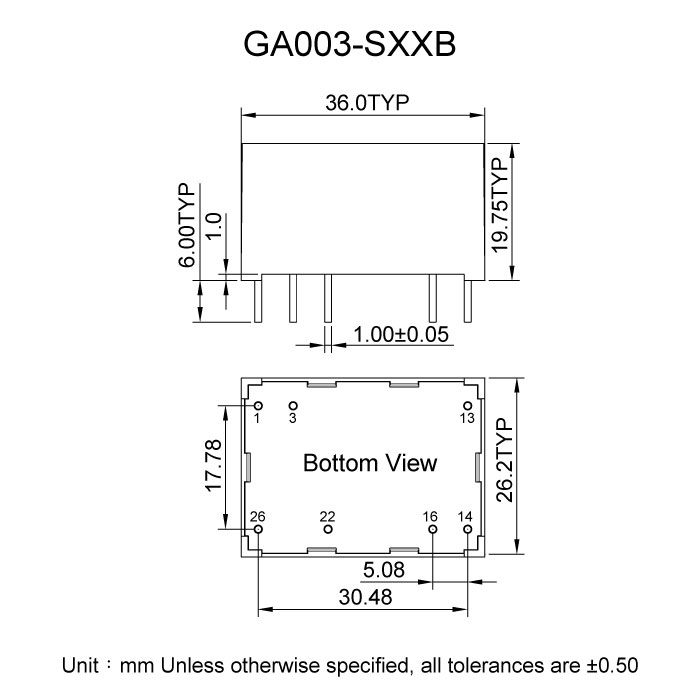

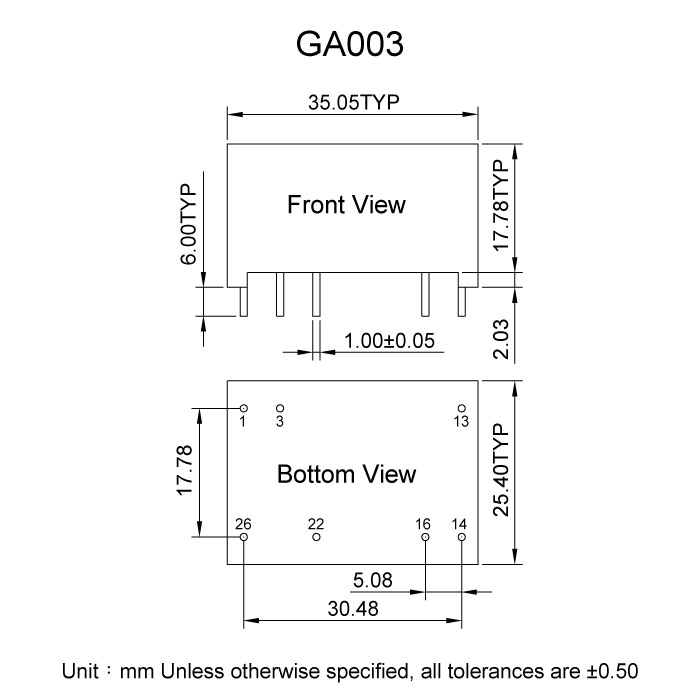

| Dimension | GA003 / GC003 L 35.05 x W 25.40 x H 17.78 GB003 L 32.5 x W 23.0 x H 16.0 | mm | |||
| Cooling | Free air convection | ||||
| Case Material | DAP UL 94V-0 | ||||
| Weight | GA003 / GB003 / GC003 | 30g / 12g / 32g | |||
Files Download
GA-B-C003-Series.pdf
