EF series
YDS
EMI Line Filter Type
Employ high performance ferrites with superior frequency characteristics.
Compact size, high performance and low cost.
Enable commom-mode noise suppression without influencing video signals.
L-element circuit ensures excellent attenuation characteristics over a wide frequency range.

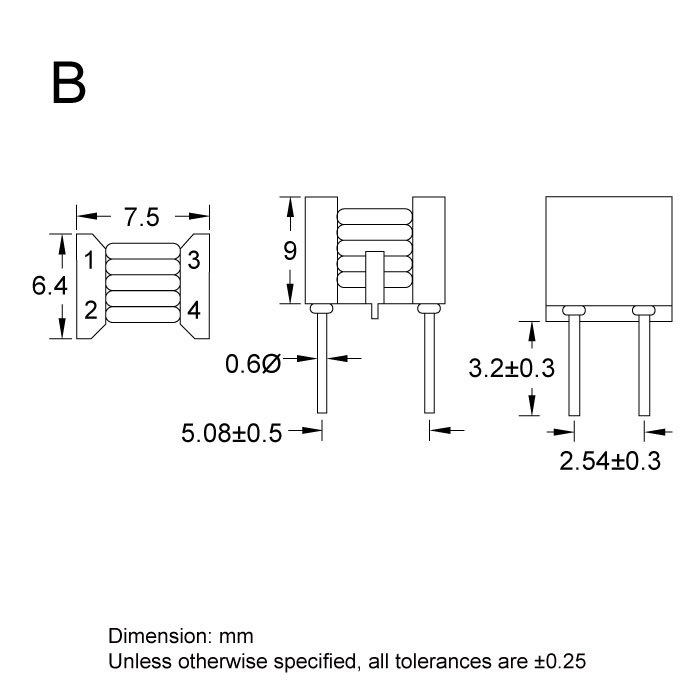

| Part Number | Rated Voltage (V) | Rated Current (mA) | Inductance (μH) | Impedance (Ω Min) @100MHz | DC Resistance (mΩ) Max |
|---|---|---|---|---|---|
| EF-04750ANL | - | 500 | 4.7 ± 50% | 280 | 21 |
| EF-08250ANL | - | 500 | 8.2 ± 50% | 420 | 25 |
| EF-10050ANL | - | 500 | 10 ± 50% | 520 | 26 |
| EF-22035ANL | - | 500 | 22 ± 35% | 1050 | 35 |
| EF-33035ANL | - | 500 | 33 ± 35% | 1680 | 42 |
| EF-39035ANL | - | 500 | 39 ± 35% | 1960 | 62 |
| EF-56035ANL | - | 500 | 56 ± 35% | 2590 | 85 |
| EF-05050BNL | 50 | 500 | 5 ± 50% | 280 | 30 |
| EF-40035BNL | 50 | 500 | 40 ± 35% | 600 | 40 |
| EF-60035BNL | 50 | 500 | 60 ± 35% | 700 | 45 |
| EF-80035BNL | 50 | 500 | 80 ± 35% | 700 | 50 |
EF-Series.pdf
