EE55 Series
YDS

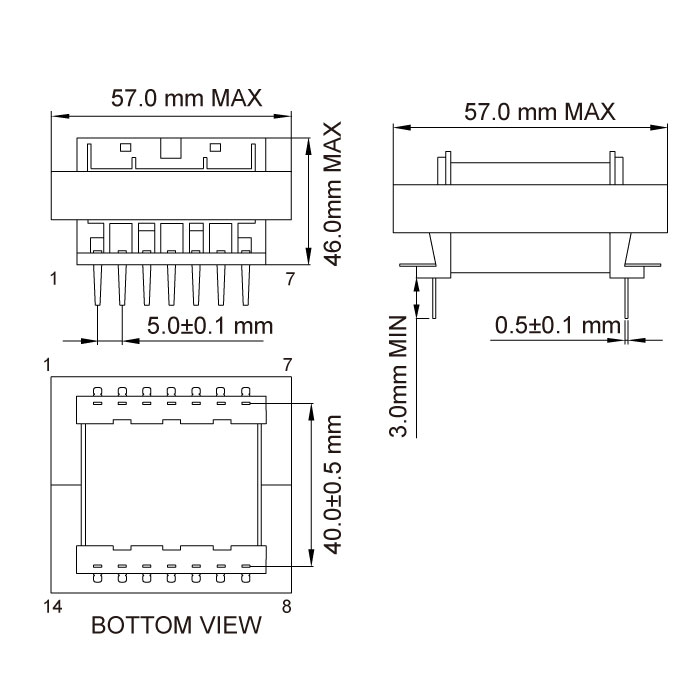

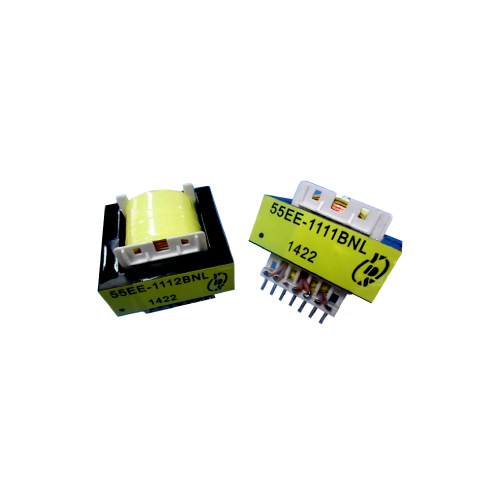

Inverter Electronic Transformer
Inverter transformer is a kind of work in DC to AC transformer under the module.
Used in solar energy,vehicle power supply system, uninterruptible power supply, etc.
Push-pull topology structure.
Operate at 100kHz with 12 VDC input.
Power: 1000W~1500W.
Hipot voltage: 2000Vrms.
Custom designs available.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +85℃.
RoHS Compliant version is available.
| Part Number | Turn Ratio Pri1:Sec: Pri2 | L ① (uH±25%) | Input | LK ②max(uH) | Output Voltage |
|---|---|---|---|---|---|
| 55EE-1111BNL | 1:57.5:1 | 109 | 12VDC,100KHZ | 0.15uH | 400VAC,1000W |
| 55EE-1112BNL | 1:32:1 | 109 | 12VDC,100KHZ | 0.20uH | 220VAC,1500W |
① L(NOM)=Nominal Inductance is for pri winding, measured at 1KHz,0.25Vrms
② Leakage inductance measured at 100KHz,0.1Vrms between Pri other pins shorted
Files Download
EE55-Series.pdf
