99T series
YDS

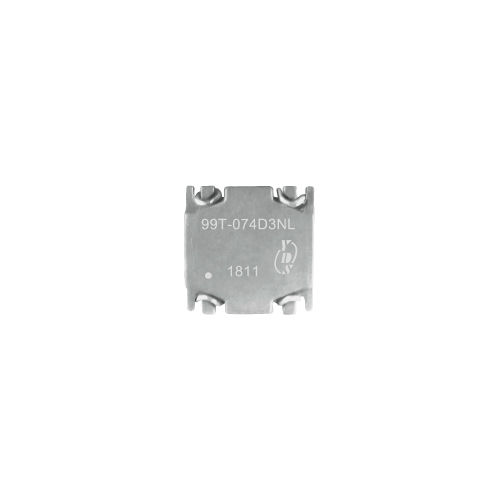

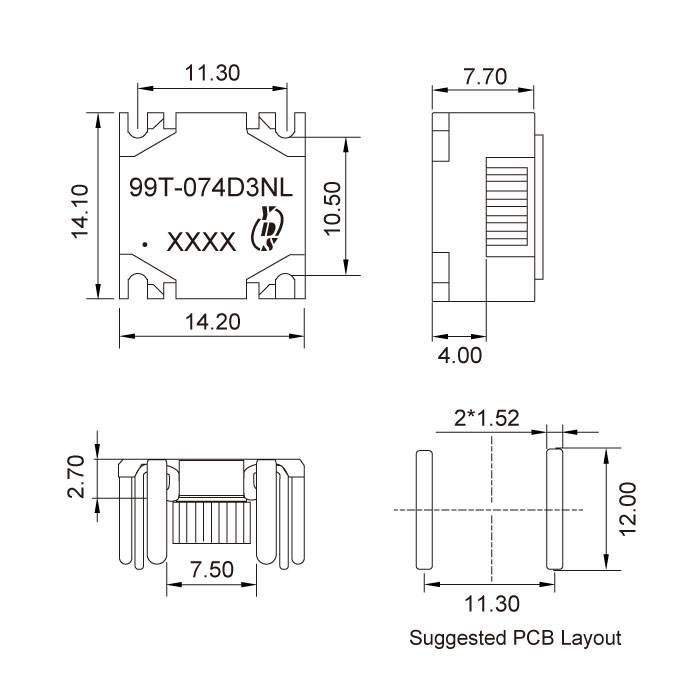

Self-Leaded Surface Mount Inductor
Surface mount, self-leaded inductor.
Solution based on efficiency, using Allid Micrilite Core.
Wide variety of other inductor sizes and values available.
Inductance ---------------- 100KHz/20mV.
| Part Number | Reference Values | Control Values | Calculation Data | |||||
|---|---|---|---|---|---|---|---|---|
| IDC (Amps) | L@DC LDC(μH) | ET (V-μ sec) | Storage Capacity (μH Joules) | L w/o DC LO±20%(μH) | DCR (mΩ Max) | 100 Gauss ET100 (V Joules) | 1 Amp DC HI(Orsted) | |
| 99T-074D3NL | 4.96 | 7.4 | 14.34 | 90.43 | 12.7 | 18.2 | 1.20 | 7.42 |
Files Download
99T-Series.pdf
