99D-R3 Series 40W 1.5KV Isolation Wide Input 2:1 Range DC-DC Converter

Availability:
Quantity:
Inquire Add to Basket

  • 99D-R3 Series

  • YDS

40W 2'' x 1'' 1.5KV Isolation 2:1 Wide Input Range DC to DC Power Conversion


Features


  • 40 watt 2"x 1" DIL package.

  • 2:1 wide input voltage.

  • 100% burned in.

  • High efficiency to 91%.

  • Customized solutions available.

  • Remote control:on/off.

  • UL94V-0 package material.

  • Operating temperature:-40°C to +77°C.

  • 3 years warranty.



Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input Voltage Input Current Output Voltage Output Current Capacitor Load Efficiency
Vdc No-Load
(mA TYP)		 Full Load
(mA TYP)		 Vdc Full Load
(mA)		 uF %TYP
99D-12S03R3NL 9-18 160 2472 3.3 8000 16000 89
99D-12S05R3NL 9-18 160 3745 5 8000 10000 89
99D-12S12R3NL 9-18 60 3753 12 3340 1800 89
99D-12S15R3NL 9-18 60 3708 15 2670 1200 90
99D-12D12R3NL 9-18 60 3795 ±12 ±1670 ±680 88
99D-12D15R3NL 9-18 60 3807 ±15 ±1340 ±560 88
99D-24S03R3NL 18-36 90 1236 3.3 8000 16000 89
99D-24S05R3NL 18-36 90 1873 5 8000 10000 89
99D-24S12R3NL 18-36 60 1876 12 3340 1800 89
99D-24S15R3NL 18-36 60 1854 15 2670 1200 90
99D-24D12R3NL 18-36 50 1898 ±12 ±1670 ±680 88
99D-24D15R3NL 18-36 50 1882 ±15 ±1340 ±560 89
99D-48S03R3NL 36-75 70 617 3.3 8000 16000 89
99D-48S05R3NL 36-75 70 926 5 8000 10000 90
99D-48S12R3NL 36-75 40 927 12 3340 1800 90
99D-48S15R3NL 36-75 40 917 15 2670 1200 91
99D-48D12R3NL 36-75 40 938 ±12 ±1670 ±680 89
99D-48D15R3NL 36-75 40 941 ±15 ±1340 ±560 89


Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Types       2:1
Filter Pi Network
Protection Fuse Recommended


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance Full load@Vin(nom.)     ±2 %
Short Circuit Protection Hiccup, automatic recovery
Line Regulation       ±0.5 %
Load Regulation Single
Dual(Balance Load)		     ±0.5
±2		 %
Cross Regulation Dual (25% to 100% load)     ±5 %
Ripple & Noise Output:3-15V TYPES
BW=DC To 20MHz		     100 mVp-p
Output >15V TYPES
BW=DC To 20MHz		     1% of Vout mVp-p
Transient response setting time 25% load step change   300   us
External Trim Adj. Range       ±10 %


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000     MΩ
Switching Frequency     350   KHz
Operating Temperature Refer to temperature derating graph
(with derating)		 -40   +77 ℃
Humidity Non Condensing 5   95 %
Cooling Natural Convection (20LFM)
Case Material Nickel Coated with Non-Conductive Base
Weight   40 g
Dimensions   50.8X 25.4 X 11.6 mm
Potting material   Epoxy (UL94V-0 rated)
Remote ON/OFF ON
OFF		 Open
Short to -Vin
Isolation Voltage       1500 VDC
MTBF MIL-HDBK-217F @25℃ ,
Ground Benign		 328000     Hours
Storage Temperature   -55   +125 ℃
Case Temperature       +105 ℃
Isolation Capacitance       1500 pF

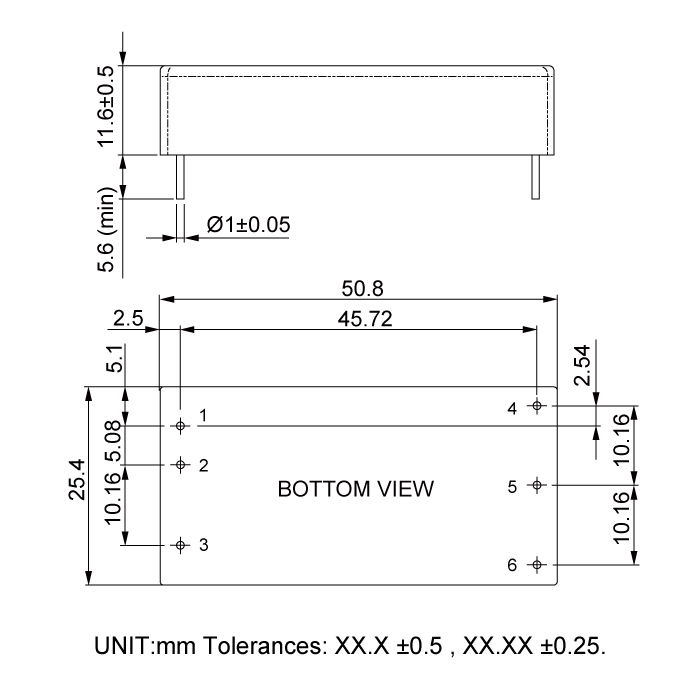

Dimension



99D-R3



 Files Download      99D-R3-Series.pdf




Certification
