1MHz Frequency Range Inductor
Materials meet UL94V-0 rating.
Fits in half inch high boards for use in laptop and notebook computers.
Frequency range of up to 1MHz.
Patented, low profile, self-leaded design.
Recognized by UL 60950-1.
| Part Number | Refer Ence Values | Control Values | Calculation Data | ||||||
|---|---|---|---|---|---|---|---|---|---|

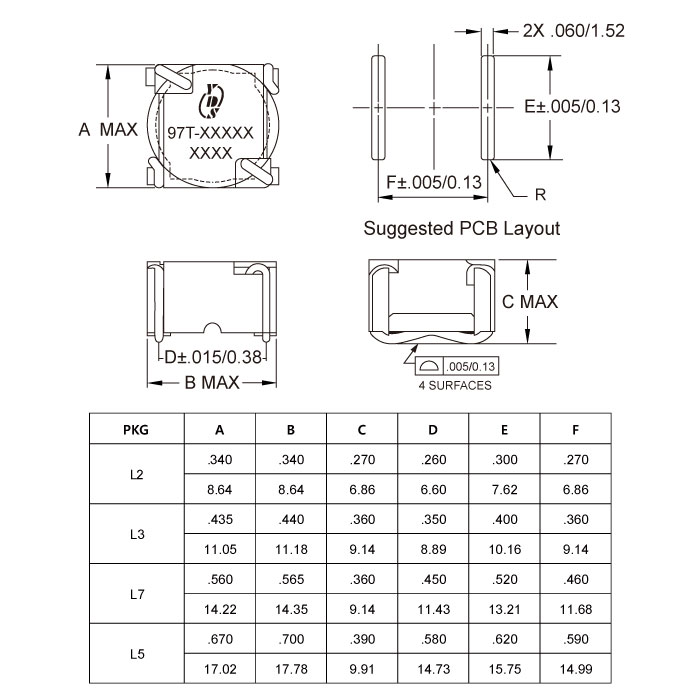

| IDC (Amps) | L WITH DC LDC(μH) | ET (V-μ sec) | Package | Lw/o DC LO (μH± 20%) | DCR RDC (mΩ Max) | 100 GAUSS ET100 (V-μ Sec) | 1 Amp DC HI (Orsted) | DCR RN (mΩ NOM) | |
| 97T-062L2NL | 1.40 | 6.20 | 1.33 | L2 | 7.0 | 70.0 | 0.94 | 21.9 | 60.3 |
| 97T-170L2NL | 1.00 | 17.6 | 2.40 | L2 | 22.7 | 125 | 1.68 | 39.3 | 109 |
| 97T-290L3NL | 1.40 | 29.7 | 4.60 | L3 | 35.3 | 166 | 4.12 | 23.2 | 141 |
| 97T-580L7NL | 1.30 | 58.1 | 7.83 | L7 | 73.0 | 290 | 1.09 | 28.8 | 233 |
| 97T-114L3NL | 0.94 | 114 | 10.0 | L3 | 167 | 380 | 8.97 | 50.5 | 330 |
| 97T-191L7NL | 0.90 | 192 | 15.7 | L7 | 292 | 560 | 14.2 | 57.7 | 472 |
Files Download
97T Series.pdf
