96DW-R5 Series
YDS
30W 2'' x 1'' Package 1.6KV Isolation Wide Input 4:1 DC/DC Power Conversion
30W DIL package.
4:1 wide input range.
100% burned in.
High efficiency up to 88%.
Customized solutions available.
Remote control:on/off.
UL 94V-0 package material.
Operating temperature from -40°C to +85°C.
3 years warranty.
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Output Ripple & Noise | Capacitor Load Max | Efficiency | |
|---|---|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | mVp-p | uF Max | %TYP | |
| 96DW-24S03R5NL | 9-36 | 120 | 1265 | 3.3 | 7500 | 100 | 20000 | 82 |
| 96DW-24S05R5NL | 9-36 | 130 | 1488 | 5.0 | 6000 | 100 | 14400 | 84 |
| 96DW-24S12R5NL | 9-36 | 50 | 1471 | 12 | 2500 | 100 | 3000 | 85 |
| 96DW-24S15R5NL | 9-36 | 50 | 1471 | 15 | 2000 | 100 | 2000 | 85 |
| 96DW-24D12R5NL | 9-36 | 60 | 1471 | ±12 | 1250 | 100 | ±2000 | 85 |
| 96DW-24D15R5NL | 9-36 | 60 | 1471 | ± 15 | 1000 | 100 | ±1300 | 85 |
| 96DW-48S03R5NL | 18-75 | 70 | 629 | 3.3 | 7500 | 100 | 20000 | 82 |
| 96DW-48S05R5NL | 18-75 | 80 | 744 | 5.0 | 6000 | 100 | 14400 | 84 |
| 96DW-48S12R5NL | 18-75 | 30 | 727 | 12 | 2500 | 100 | 3000 | 86 |
| 96DW-48S15R5NL | 18-75 | 30 | 727 | 15 | 2000 | 100 | 2000 | 86 |
| 96DW-48D12R5NL | 18-75 | 30 | 727 | ±12 | 1250 | 100 | ±2000 | 86 |
| 96DW-48D15R5NL | 18-75 | 30 | 727 | ±15 | 1000 | 100 | ±1300 | 86 |
Note:
1. BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40ºC. (Ground fixed and controlled environment)
MIL-STD-217F Notice2 @Ta=25 ºC, Full load (Ground, Benign, controlled environment)
2. The ON/OFF control pin voltage is referred to -Input. (Leave open if not used.)
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Voltage Types | 4:1 | |||||
| Filter | Pi TYPE | |||||
| Input surge voltage 100mS max | 24V input 48V input | 50 100 | Vdc Vdc | |||
| Input reflected ripple current | Nominal Vin and full load | 20 | mAp-p | |||
| Start up time | Nominal Vin and constant resistive load | Power up | 40 | mS | ||
| Remote ON/OFF | 30 | mS | ||||
| Start-up voltage | 24V input | 9 | Vdc | |||
| 48V input | 18 | Vdc | ||||
| Shutdown voltage | 24V input | 8 | Vdc | |||
| 48V input | 16 | Vdc | ||||
| Protection | Fuse Recommended | |||||
| Remote ON/OFF (Note 2) | DC-DC ON | OPEN | ||||
| DC-DC OFF | Short to ground | |||||
| Input current of Remote control pin | Nominal Vin | -0.5mA ~ +0.5mA | ||||
| Remote off state input current | Nominal Vin | 3mA | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ±2 | % | ||
| Short Circuit Protection | Hiccup, automatic recovery | ||||
| Over Load Protection | nominal input | 150 | % | ||
| Over Voltage Protection (Zener Diode Clamp) | 3.3V Output 5.0V Output 12V Output 15V Output | 3.9 6.2 15 & ± 15 18 & ± 18 | V V V V | ||
| Line Regulation | LL to HL at Full Load | ± 0.5 | % | ||
| Load Regulation | Single | ± 0.5 | % | ||
| Load Regulation | Dual, Balance Load, 25% to 100% load | ± 1.0 | % | ||
| Cross Regulation | Dual (25% to 100% Load) | ± 5.0 | % | ||
| Ripple & Noise | 20MHz bandwidth | 100 | mVp-p | ||
| Transient response recovery time | 25% load step change | 250 | 350 | us | |
| External Trim Adj. Range | ±10% of Output |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 300 | KHz | |||
| Isolation Capacitance | 2200 | pF | |||
| Case Material | Nickel coated copper with no-conductive base | ||||
| Potting material | Epoxy (UL94-V0) | ||||
| Isolation Voltage | For 10 seconds | 1600 | VDC | ||
| Design meets safety | IEC60950-1, UL60950-1, EN60950-1 | ||||

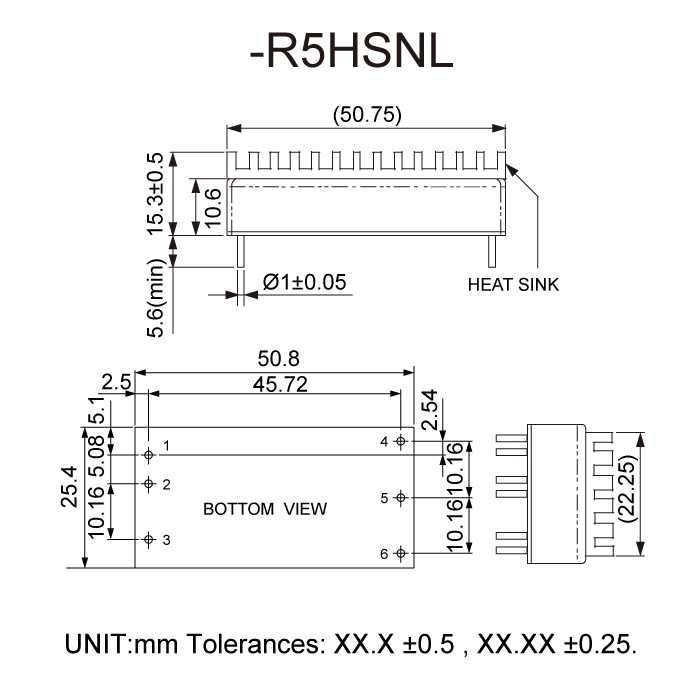

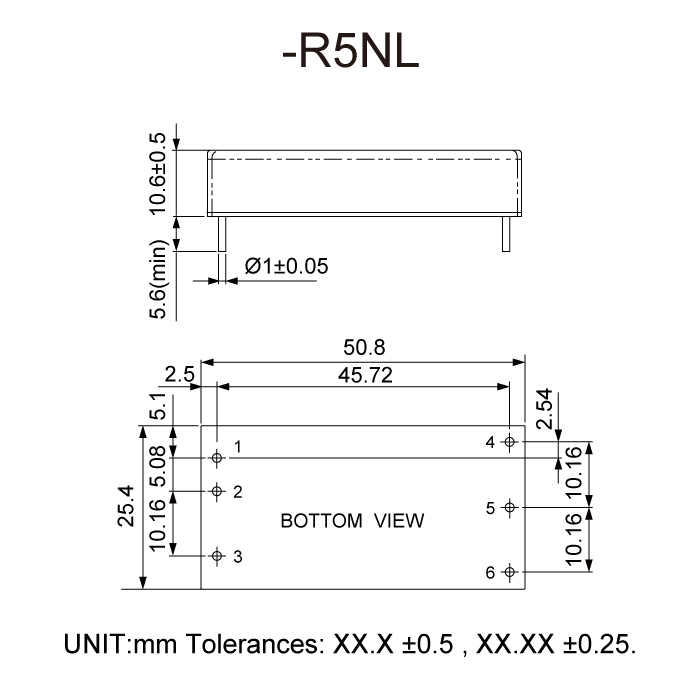

| Dimensions | -R5NL -R5HSNL | 50.8X 25.4 X 10.6 50.8X 25.4 X 15.3 | mm mm | ||
| Weight | 36.5 | g | |||
| MTBF (Note 1) | BELLCORE-TR-NWT-000332 MIL-HDBK-217F | 3.163 x 106 4.347 x 105 | hrs hrs | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Operating Temperature | -40 | +85 | ℃ | ||
| Maximum case temperature | +105 | ℃ | |||
| Storage Temperature | -55 | +125 | ℃ | ||
| Thermal impedance @20LFM | Convection | 12 | ℃/Watt | ||
| Convection with heat-sink | 10 | ℃/Watt | |||
| Thermal shock | MIL-STD-810F | ||||
| Vibration | MIL-STD-810F | ||||
| Relative humidity | 5% to 95% RH | ||||
Files Download
96DW-R5-Series.pdf
