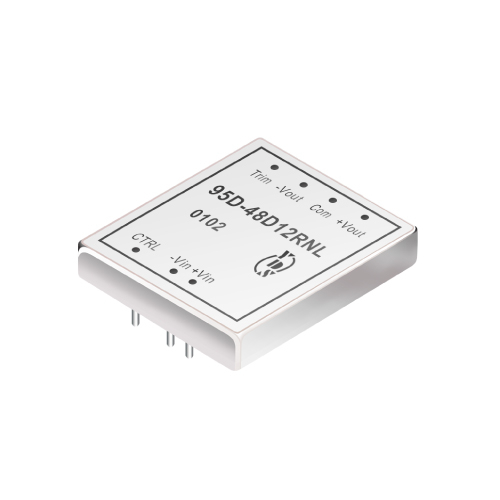

95D Series
YDS
20W 2'' x 2'' 1.5KV 2:1 Wide Input Range DC to DC Power Conversion
Features
20 watt DIL package.
2:1 wide input voltage.
100% burned in.
High efficiency to 85%.
Customized solutions available.
Remote control:on/off.
UL94V-0 package material.
Operating temperature:-40°C to +85°C.
3 years warranty.
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | |
| 95D-12S03RNL | 9-18 | 25 | 1890 | 3.3 | 5500 | 80 |
| 95D-12S05RNL | 9-18 | 25 | 2032 | 5 | 4000 | 82 |
| 95D-12S12RNL | 9-18 | 25 | 1964 | 12 | 1670 | 85 |
| 95D-12S15RNL | 9-18 | 25 | 1955 | 15 | 1330 | 85 |
| 95D-24S03RNL | 18-36 | 20 | 945 | 3.3 | 5500 | 80 |
| 95D-24S05RNL | 18-36 | 20 | 1016 | 5 | 4000 | 82 |
| 95D-24S12RNL | 18-36 | 20 | 982 | 12 | 1670 | 85 |
| 95D-24S15RNL | 18-36 | 20 | 977 | 15 | 1330 | 85 |
| 95D-24D12RNL | 18-36 | 20 | 991 | ± 12 | ± 833 | 84 |
| 95D-24D15RNL | 18-36 | 20 | 991 | ± 15 | ± 666 | 84 |
| 95D-48S03RNL | 36-72 | 15 | 472 | 3.3 | 5500 | 80 |
| 95D-48S05RNL | 36-72 | 15 | 508 | 5 | 4000 | 82 |
| 95D-48S12RNL | 36-72 | 15 | 491 | 12 | 1670 | 85 |
| 95D-48S15RNL | 36-72 | 15 | 488 | 15 | 1330 | 85 |
| 95D-48D12RNL | 36-72 | 15 | 495 | ± 12 | ± 833 | 84 |
| 95D-48D15RNL | 36-72 | 15 | 495 | ± 15 | ± 666 | 84 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Pi TYPE |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup,automatic recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single(25% to 100% load) | ± 0.5 | % | ||
| Load Regulation | Dual(Balance load), 25% to 100% load | ± 2.0 | % | ||
| Cross Regulation | Dual (25% to 100% load) | ± 5.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 25% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 300 | KHz | |||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated with Non-Conductive Base | ||||
| Weight | 55 | g | |||

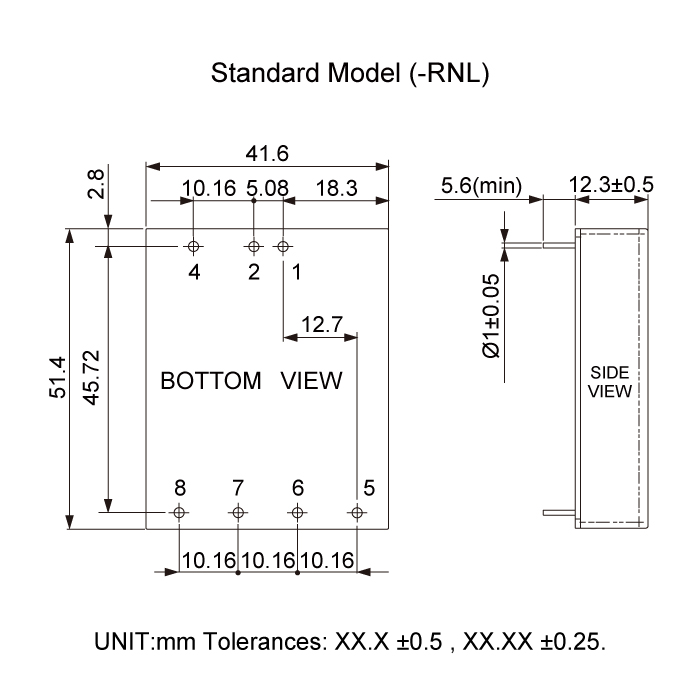

| Dimensions | Package 1 | 51.4 x 41.6 x 12.3 | mm | ||

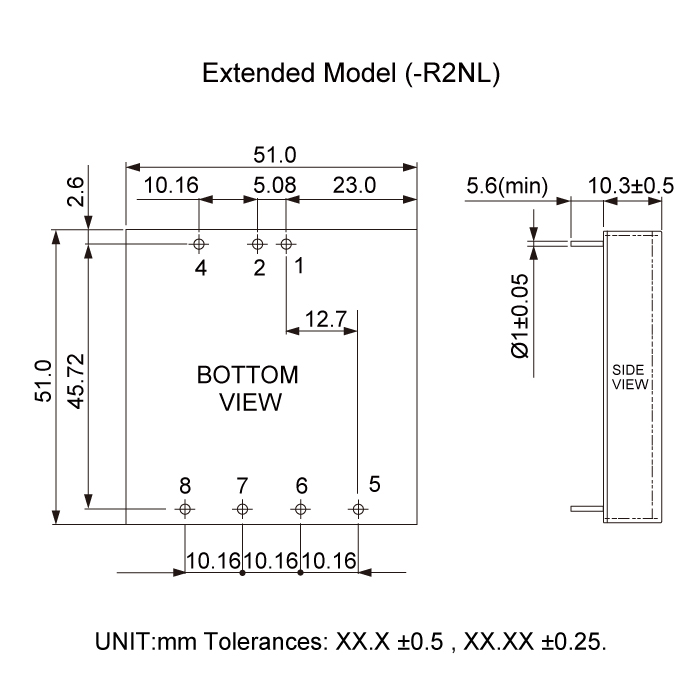

| Package 2 | 51.0 x 51.0 x 10.3 | mm | |||
| Potting Material | Epoxy (UL94V-0 rated) | ||||
| Radiated Emissions | EN55022 | CLASS A | |||
| Conducted Emissions | EN55022 | CLASS A | |||
Files Download
95D-Series.pdf
