93DW Series
YDS
60W 3'' x 2.6'' 3KV Isolation 4:1 Wide Input Range DC/DC Power Conversion
60 watt DIL industry standard package.
4:1 wide input voltage.
100% burned in.
High efficiency to 86%.
Customized solutions available.
UL94V-0 package material.
Operating temperature:-40°C to +85°C.
3 years warranty.
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | |
| 93DW-24S05RNL | 9-36 | 30 | 2572 | 5 | 10000 | 81 |
| 93DW-24S12RNL | 9-36 | 30 | 2941 | 12 | 5000 | 85 |
| 93DW-24S15RNL | 9-36 | 30 | 2941 | 15 | 4000 | 85 |
| 93DW-24D05RNL | 9-36 | 30 | 2572 | ± 5 | ± 5000 | 81 |
| 93DW-24D12RNL | 9-36 | 30 | 2941 | ± 12 | ± 2500 | 85 |
| 93DW-24D15RNL | 9-36 | 30 | 2941 | ± 15 | ± 2000 | 85 |
| 93DW-48S05RNL | 18-72 | 20 | 1240 | 5 | 10000 | 84 |
| 93DW-48S12RNL | 18-72 | 20 | 1453 | 12 | 5000 | 86 |
| 93DW-48S15RNL | 18-72 | 20 | 1453 | 15 | 4000 | 86 |
| 93DW-48D05RNL | 18-72 | 20 | 1286 | ± 5 | ± 5000 | 81 |
| 93DW-48D12RNL | 18-72 | 20 | 1453 | ± 12 | ± 2500 | 86 |
| 93DW-48D15RNL | 18-72 | 20 | 1453 | ± 15 | ± 2000 | 86 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Filter | Pi Network | ||||
| Protection | Fuse Recommended |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit/Restart Protection | Hiccup,automatic recovery | ||||
| Over Load Protection | 120 | 150 | 180 | % | |
| Line Regulation | Single & Dual (H/L to L/L) | ± 0.5 | % | ||
| Load Regulation | Single & Dual (Balance Load), 25% TO 100% load | ± 0.5 | % | ||
| Cross Regulation | Dual (25% to 100% load) | ± 5 | % | ||
| Ripple & Noise | BW=DC To 20MHz (with 1uF Cap.) | 150 | mVp-p | ||
| Transient response setting time | 25% load step change | 400 | us | ||
| Capacitive load | 4800 | uF | |||
| External Trim Adj. Range | ± 10 | % |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 50 | KHz | |||
| Operating Temperature | With derating | -40 | +85 | ℃ | |
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Six-Side Shielded Case | Nickel Coated with Non-Conductive Base | |||
| Weight | 227 | g | |||

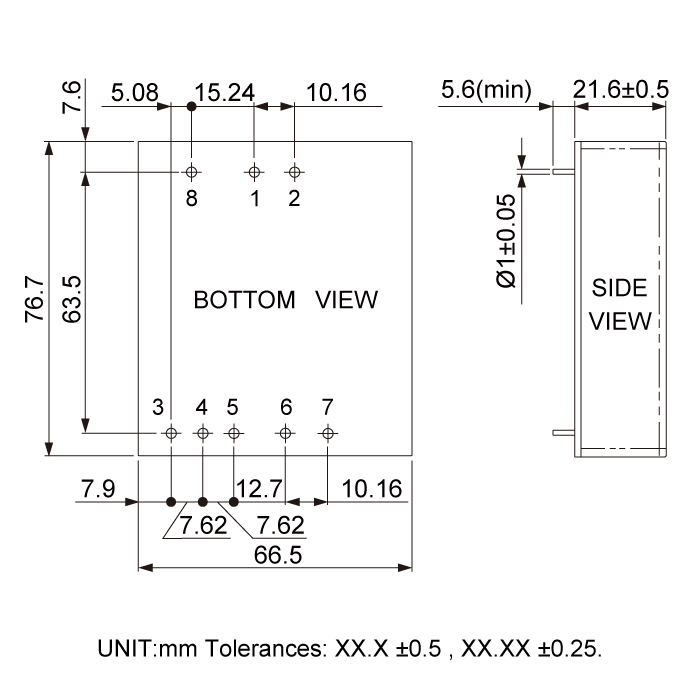

| Dimensions | 76.7 x 66.5 x 21.6 | mm | |||
| Potting Material | Epoxy (UL94V-0 rated) | ||||
| Radiated Emissions | EN55022 | CLASS A | |||
| Conducted Emissions | EN55022 | CLASS A | |||
| Isolation Voltage | For 10 seconds | 3000 | VDC | ||
| MTBF | MIL-HDBK-217F @25℃ , Ground Benign | 299424 | Hours | ||
| Storage Temperature | -55 | +125 | ℃ | ||
| Case Temperature | +90 | ℃ | |||
| Isolation Capacitance | 2500 | pF | |||
Files Download
93DW-Series.pdf
