93D Series 60W 3KV Isolation 2:1 Wide Input DC-DC Converter

Availability:
Quantity:
  • 93D Series

  • YDS

60W 3'' x 2.6'' Size 3KV Isolation 2:1 Wide Input Range DC/DC Power Conversion


Features


  • 60 watt DIL industry standard package.

  • 2:1 wide input voltage.

  • 100% burned in.

  • High efficiency to 88%.

  • Customized solutions available.

  • UL94V-0 package material.

  • Operating temperature:-40°C to +85°C.

  • 3 years warranty.




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input Voltage Input Current Output Voltage Output Current Efficiency
Vdc No-Load
(mA TYP)
Full Load
(mA TYP)
Vdc Full Load
(mA)
%TYP
93D-12S05RNL 9-18 40 5208 5 10000 80
93D-12S12RNL 9-18 40 5882 12 5000 85
93D-12S15RNL 9-18 40 5814 15 4000 86
93D-12D05RNL 9-18 40 5144 ± 5 ± 5000 81
93D-12D12RNL 9-18 40 5747 ± 12 ± 2500 87
93D-12D15RNL 9-18 40 5747 ± 15 ± 2000 87
93D-24S05RNL 18-36 30 2572 5 10000 81
93D-24S12RNL 18-36 30 2841 12 5000 88
93D-24S15RNL 18-36 30 2841 15 4000 88
93D-24D05RNL 18-36 30 2572 ± 5 ± 5000 81
93D-24D12RNL 18-36 30 2874 ± 12 ± 2500 87
93D-24D15RNL 18-36 30 2841 ± 15 ± 2000 88
93D-48S05RNL 36-72 20 1270 5 10000 82
93D-48S12RNL 36-72 20 1420 12 5000 88
93D-48S15RNL 36-72 20 1420 15 4000 88
93D-48D05RNL 36-72 20 1270 ± 5 ± 5000 82
93D-48D12RNL 36-72 20 1437 ± 12 ± 2500 87
93D-48D15RNL 36-72 20 1437 ± 15 ± 2000 87


Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Types       2:1
Filter Pi Network
Protection Fuse Recommended


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance Full load@Vin(nom.)     ± 2 %
Short Circuit/Restart Protection Hiccup,automatic recovery
Over Load Protection   120 150 180 %
Line Regulation Single & Dual
(H/L to L/L)
    ± 0.5 %
Load Regulation Single & Dual (Balance Load),
25% TO 100% load
    ± 0.5 %
Cross Regulation Dual (25% to 100% load)     ± 5 %
Ripple & Noise BW=DC To 20MHz
(with 1uF Cap.)
    150 mVp-p
Transient response setting time 25% load step change     400 us
Capacitive load       1500 uF
External Trim Adj. Range       ± 10 %


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Switching Frequency     50   KHz
Operating Temperature With derating -40   +85
Humidity Non Condensing     95 %
Cooling Natural Convection (20LFM)
Case Material Six-Side Shielded Case Nickel Coated with Non-Conductive Base
Weight   227 g
Dimensions   76.7 x 66.5 x 21.6 mm
Potting Material   Epoxy (UL94V-0 rated)
Radiated Emissions EN55022 CLASS A
Conducted  Emissions EN55022 CLASS A
Isolation Voltage For 10 seconds     3000 VDC
MTBF MIL-HDBK-217F @25℃ ,
Ground Benign
299424     Hours
Storage Temperature   -55   +125
Case Temperature       +90
Isolation Capacitance       2500 pF

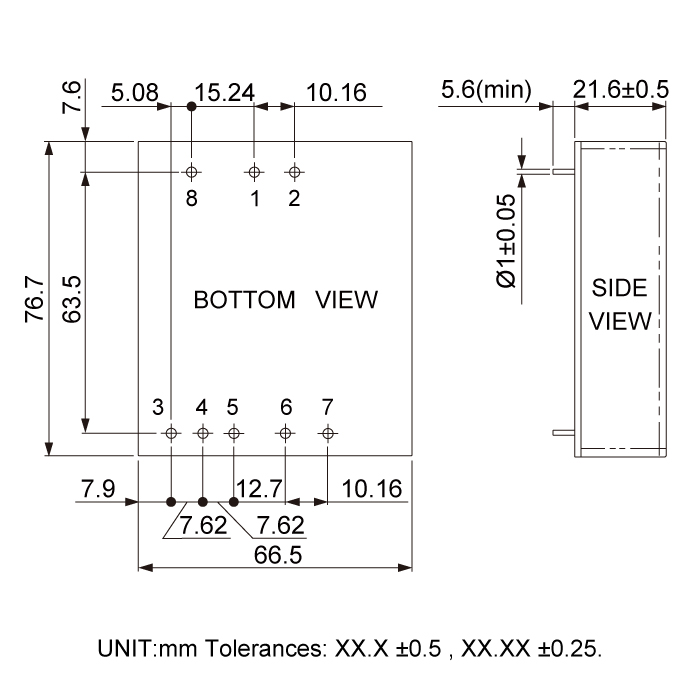

Dimension



93D




 Files Download       93D-Series.pdf
