89T Series Low Cost Through Hole Inductor

Availability:
Quantity:
Inquire Add to Basket

  • 89T series

  • YDS

Low Cost Through Hole Inductor


Features


  • Available in vertical, lowprofile and Klipmount.

  • SMPS averaging filter.

  • Characterized for general purpose use and ripple filters.

  • Single-layer designs.

  • Recognized by UL 60950-1.



Electrical Specifications@25°C; Operating Temperature -30°C to +130°C


Reference Operating Values
Low profile
Part
Number		 Vertical
Part
Number		 Inductance
Typical
(μH)		 Idc
amps		 ETop
(v-μsec)		 Energy
Storage
(μ j)
89T-500WBNL 89T-500VBNL 50 2.6 50 169
89T-101WCNL 89T-101VCNL 100 2.6 90 338


Design Control Values
Low profile
Part
Number		 Vertical
Part
Number		 Inductance
No dc± 20%
(μH)		 20khz
Test mv
No dc		 Dcr
(Ω)Max		 Coil
Size
Code		 K.Mount
Part
Number		 Lead
Diameter
(in)± .003
89T-500WBNL 89T-500VBNL 45.7 45 0.071 B 89T-500KM2 0.020
89T-101WCNL 89T-101VCNL 94.1 90 0.100 C 89T-101KM3 0.020

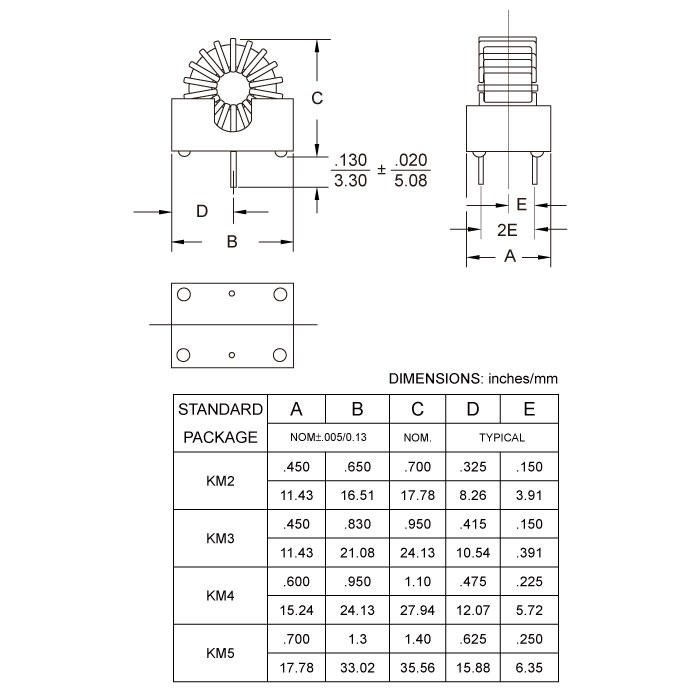

Dimension



89T




 Files Download        89T-Series.pdf
