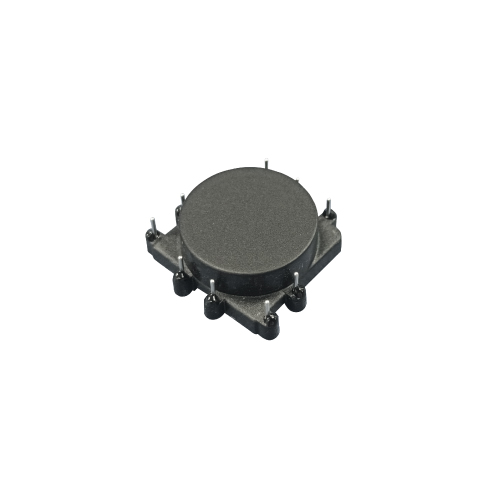

500KHz Current Sense Electronic Transformer
Self-leaded, surface mount.
Suited for IR and vapor phase reflow soldering.
Designed for switching power supply applications.
Recognized by UL 60950-1.
Inductance：10KHz/0.1V.
| Part Number | Turns Ratio (1-2:4-5:6-7) | Inductance (mH±30%) | DCR(Ω±15%) (1-2:4-5:6-7) | Hi-Pot(Vdc) (1-2)to(4,5,6,7) | Hi-Pot(Vdc) (4-5)to(6-7) |
|---|---|---|---|---|---|
| 87T-602M1ANL | 1:1:1 | 5.95 | 0.66 | 4500 | 1000 |
Files Download
87T-Series.pdf
Certification
500KHz Current Sense Electronic Transformer
Self-leaded, surface mount.
Suited for IR and vapor phase reflow soldering.
Designed for switching power supply applications.
Recognized by UL 60950-1.
Inductance：10KHz/0.1V.
| Part Number | Turns Ratio (1-2:4-5:6-7) | Inductance (mH±30%) | DCR(Ω±15%) (1-2:4-5:6-7) | Hi-Pot(Vdc) (1-2)to(4,5,6,7) | Hi-Pot(Vdc) (4-5)to(6-7) |
|---|---|---|---|---|---|
| 87T-602M1ANL | 1:1:1 | 5.95 | 0.66 | 4500 | 1000 |
Files Download
87T-Series.pdf
Certification
