83T Series SMT/Through Hole Power Inductor

Availability:
Quantity:
Inquire Add to Basket

  • 83T series

  • YDS

Through Hole and Surface Mount Packages Power Inductor


Features


  • Base material meets flammability requirements of UL 94-0.

  • Recognized by UL 60950-1.



Electrical Specifications@25°C; Operating Temperature -40°C to 130°C


Part Number Inductance
(μH ± 20%)		 Rated Current
(Amps DC)		 DCR
(Ω)		 Mech
83T-118P3NL 118 0.38 1.2 P3
83T-115P7NL 115 0.67 0.4 P7
83T-250KM2NL 25 3.0 0.04 KM2
83T-168KM3NL 168 1.81 0.18 KM3
83T-111KM4NL 111 3.0 0.09 KM4
83T-114H6NL 114 - 0.1 H6



Dimension

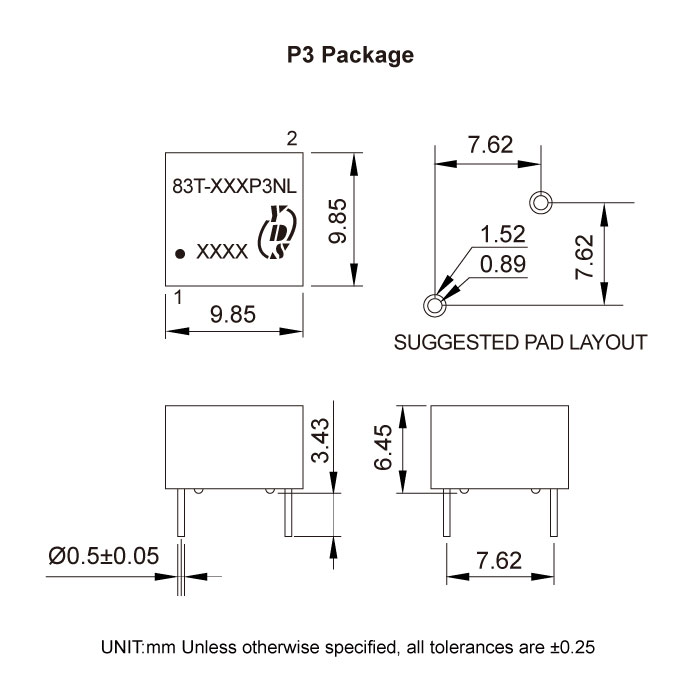

83T-01

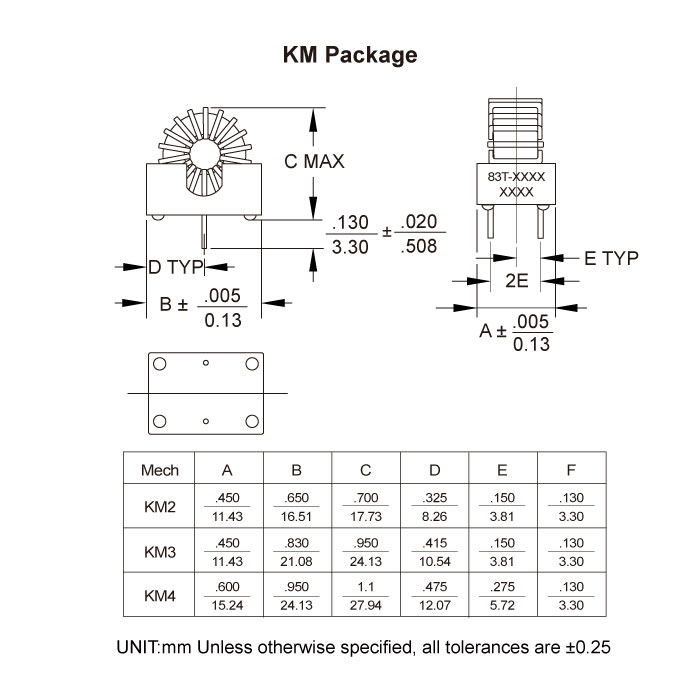

83T-02

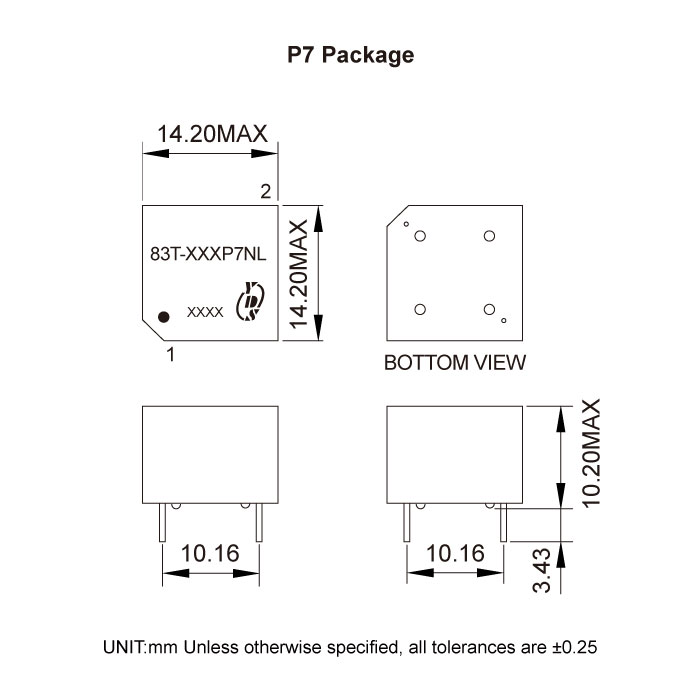

83T-03

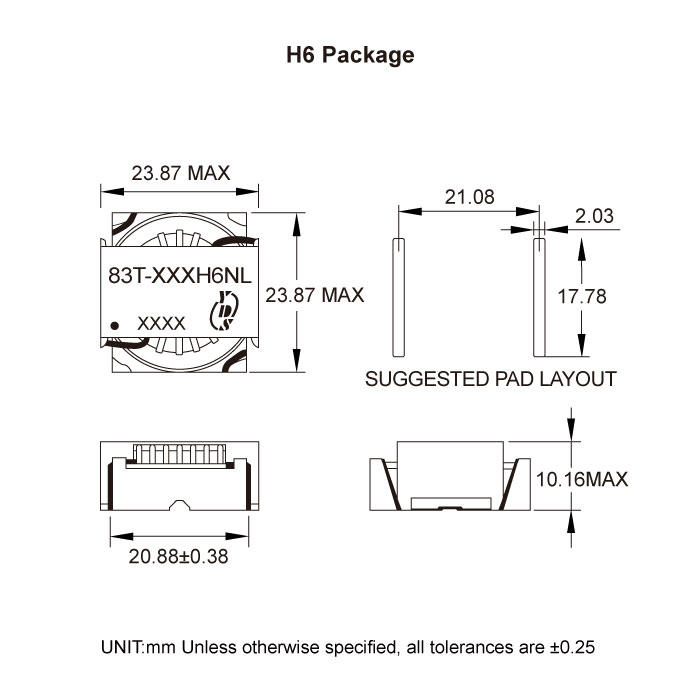

83T-04



 Files Download       83T-Series.pdf



Certification
