Through Hole Current Sense Electronic Transformer
Designed for switching power supply applications.
Transformer meets Iec950 insulation requirements.
Frequency range from 20khz to 200khz.
Recognized by UL 60950-1.
Inductance ---------------------10KHz/500mV.

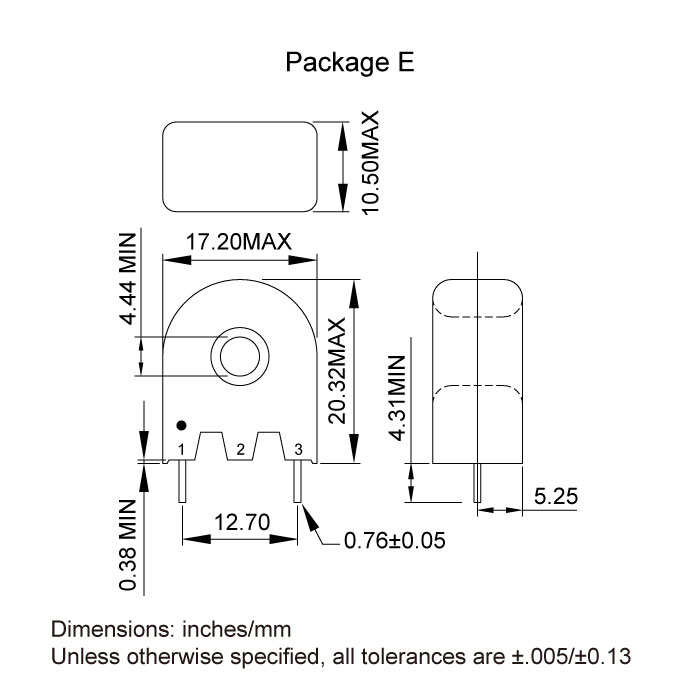

Part Number | Schem Figure | Package | Turns Ns | Inductance mH(Min) | DCR (Ω Max) |
---|---|---|---|---|---|
82T-502ANL | A | E | 50 | 5.0 | 0.7 |
82T-203ANL | A | E | 100 | 20.0 | 1.40 |
82T-104ANL | A | E | 200 | 100.0 | 4.50 |
82T-184ANL | A | E | 300 | 180.0 | 11.0 |
82T-203BNL | B | F | 100 | 20.0 | 1.4 |
Files Download 82T Series.pdf
Certification
