82D Series
YDS
6W 0.5KV Isolation DIL Package DC to DC Power Conversion
Up to 6 watt output power.
Low ripple and noise.
Regulated output types.
500Vdc isolation.
MTBF:>1,500,000 hrs.
Operating temperature:-40°C to +85°C.
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %TYP | |
| 82D-05S05RNNL | 5 | 5 | 1200 | 60 |
| 82D-05S12RNNL | 5 | 12 | 500 | 65 |
| 82D-05D15RNNL | 5 | ± 15 | ± 200 | 65 |
| 82D-12S12RNNL | 12 | 12 | 500 | 65 |
| 82D-12S15RNNL | 12 | 15 | 400 | 65 |
| 82D-12D12RNNL | 12 | ± 12 | ± 250 | 65 |
| 82D-24S05RNNL | 24 | 5 | 1200 | 60 |
| 82D-24S15RNNL | 24 | 15 | 400 | 65 |
| 82D-24D12RNNL | 24 | ± 12 | ± 250 | 65 |
| 82D-48S15RNNL | 48 | 15 | 400 | 65 |
| 82D-48D12RNNL | 48 | ± 12 | ± 250 | 65 |
| 82D-48D15RNNL | 48 | ± 15 | ± 200 | 65 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 10 | % | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 5 | % | |||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | ± 0.3 | % | |||
| Load Regulation | ± 0.5 | % | |||
| Ripple & Noise | BW=DC To 20MHz | 50 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 50 | KHz | |||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | Nickel Coated With Non-Conductive Base | ||||
| Weight | 57 | g | |||

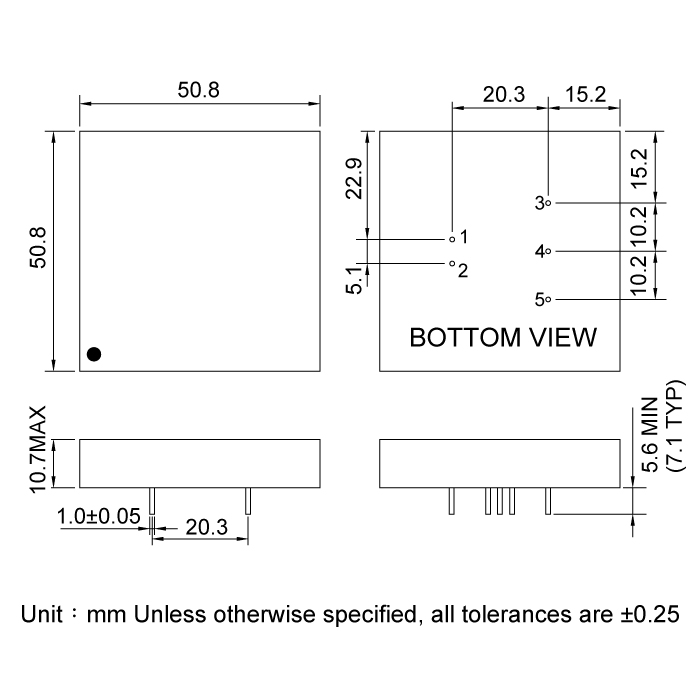

| Dimensions | 50.8 x 50.8 x 10.7 | mm | |||
Files Download
82D-Series.pdf
