80T/81T Series Standard Low Power General Purpose Inductor

Availability:
Quantity:
Inquire Add to Basket

  • 80T/81T series

  • YDS

Compact Standard Package Switch Mode Inductor


Features


  • High inductance stability with varying volt-seconds and load currents.

  • Compact, standard packages.

  • Recognized by UL 60950-1.


Test Conditions


  • Inductance------------------10KHz/1V.



Electrical Specifications@25°C; Operating Temperature -30°C to +130°C


Part
Number		 Inductance
Typical
(μH)		 IDC
(AMPS)		 Maximum
ETOP
(V-μSec)		 DCR
(Ω Max)
81T-221NL 220 1.5 90 0.42
81T-331NL 330 1.0 100 0.78
81T-151NL 150 1.7 80 0.42
80T-151F3NL 175 - - 0.36
81T-221NL 220 1.5 90 0.42
81T-331NL 330 1.0 100 0.78
81T-151NL 150 1.7 80 0.42



Dimension


80T

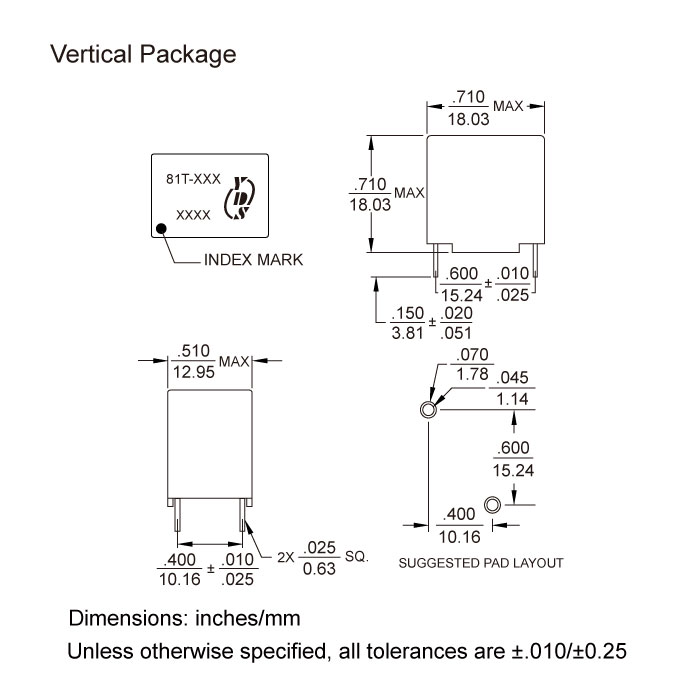

81T



 Files Download         80T-81T-Series.pdf



Certification
