76T series
YDS
Self-Leaded SMT Inductor
Solutions based on impedance, size and current.
Designed for DC-DC converters.
Wide variety of inductor sizes and current ratings available.
Dielectric strength : 500Vrms.
Recognized by UL 60950-1.
Inductance ------------------10KHZ/200mV.
Leakage Inductance --------100KHZ/1V.
Interwinding Capacitance --100KHZ/1V.
Part Number | Rated Current For 55℃ Rise (Amps) | Inductance at (mHy± 35%) | DCR(max) (mΩ) | Package |
---|---|---|---|---|
76T-159S3NL | 2.80 | 1.59± 25% | 80 | S3 |
76T-132S3NL | 3.30 | 1.32 | 60 | S3 |
76T-221S3NL | 3.30 | 0.22 | 60 | S3 |
76T-768S3NL | 4.70 | 0.77 | 40 | S3 |
76T-591S3NL | - | 0.59± 25% | 20 | S3 |
76T-5311I6NL | 7.20 | 0.53 | 15 | I6 |

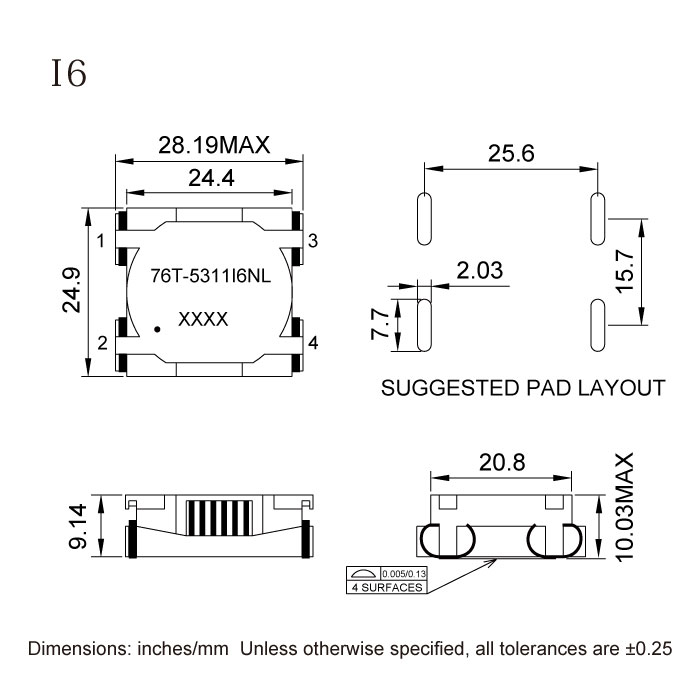

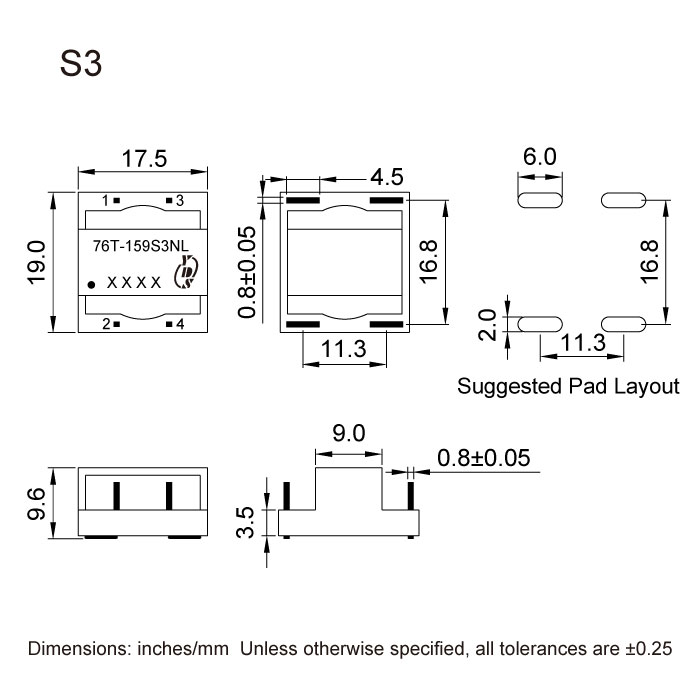

Dimension
Files Download 76T-Series.pdf
Self-Leaded SMT Inductor
Solutions based on impedance, size and current.
Designed for DC-DC converters.
Wide variety of inductor sizes and current ratings available.
Dielectric strength : 500Vrms.
Recognized by UL 60950-1.
Inductance ------------------10KHZ/200mV.
Leakage Inductance --------100KHZ/1V.
Interwinding Capacitance --100KHZ/1V.
Part Number | Rated Current For 55℃ Rise (Amps) | Inductance at (mHy± 35%) | DCR(max) (mΩ) | Package |
---|---|---|---|---|
76T-159S3NL | 2.80 | 1.59± 25% | 80 | S3 |
76T-132S3NL | 3.30 | 1.32 | 60 | S3 |
76T-221S3NL | 3.30 | 0.22 | 60 | S3 |
76T-768S3NL | 4.70 | 0.77 | 40 | S3 |
76T-591S3NL | - | 0.59± 25% | 20 | S3 |
76T-5311I6NL | 7.20 | 0.53 | 15 | I6 |
Dimension
Files Download 76T-Series.pdf
