76D-6W Series
YDS
6W 1'' x 1'' 1.5KV Isolation 2:1 Wide Input Range DC DC Power Converter
2:1 wide input voltage.
6 watt DIL package.
Efficiency To 87%.
1500Vdc isolation.
MTBF:>1,500,000 hrs.
Operating temperature:-40°C to +85°C.
| Part Number | Input Voltage | Output Voltage | Output Current | Input Current | Efficiency | |
|---|---|---|---|---|---|---|
| No Load | Full Load | |||||
| Vdc | Vdc | mA | mA | mA | %TYP | |
| 76D-12S05R6W | 9-18 | 5 | 1200 | 7.5 | 625 | 80 |
| 76D-12S12R6W | 9-18 | 12 | 500 | 7.5 | 625 | 80 |
| 76D-12S15R6W | 9-18 | 15 | 400 | 7.5 | 625 | 80 |
| 76D-12D05R6W | 9-18 | ±5 | ±600 | 12 | 625 | 80 |
| 76D-12D12R6W | 9-18 | ±12 | ±250 | 12 | 600 | 83 |
| 76D-12D15R6W | 9-18 | ±15 | ±200 | 12 | 600 | 83 |
| 76D-24S05C6W | 18-36 | 5 | 1200 | 5 | 305 | 82 |
| 76D-24S12C6W | 18-36 | 12 | 500 | 5 | 287 | 87 |
| 76D-24S15C6W | 18-36 | 15 | 400 | 5 | 287 | 87 |
| 76D-24S24C6W | 18-36 | 24 | 250 | 5 | 287 | 87 |
| 76D-24D05C6W | 18-36 | ±5 | ±600 | 7.5 | 310 | 80 |
| 76D-24D12C6W | 18-36 | ±12 | ±250 | 7.5 | 295 | 85 |
| 76D-24D15C6W | 18-36 | ±15 | ±200 | 7.5 | 295 | 85 |
| 76D-48S05C6W | 36-75 | 5 | 1200 | 2 | 155 | 80 |
| 76D-48S12C6W | 36-75 | 12 | 500 | 2 | 145 | 85 |
| 76D-48S15C6W | 36-75 | 15 | 400 | 2 | 145 | 85 |
| 76D-48S24C6W | 36-75 | 24 | 250 | 2 | 145 | 85 |
| 76D-48D05C6W | 36-75 | ±5 | ±600 | 3 | 155 | 80 |
| 76D-48D12C6W | 36-75 | ±12 | ±250 | 3 | 145 | 85 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ±2 | % | |||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | ±0.5 | % | |||
| Load Regulation | Single (F.L To 10% Load) | ±0.8 | % | ||
| Load Regulation | Dual (F.L To 10% Load) | ±1.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 200 | KHz | |||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| Weight | 15.0 | g | |||
| Dimensions | 25.4 x 25.4 x 10.6 | mm | |||

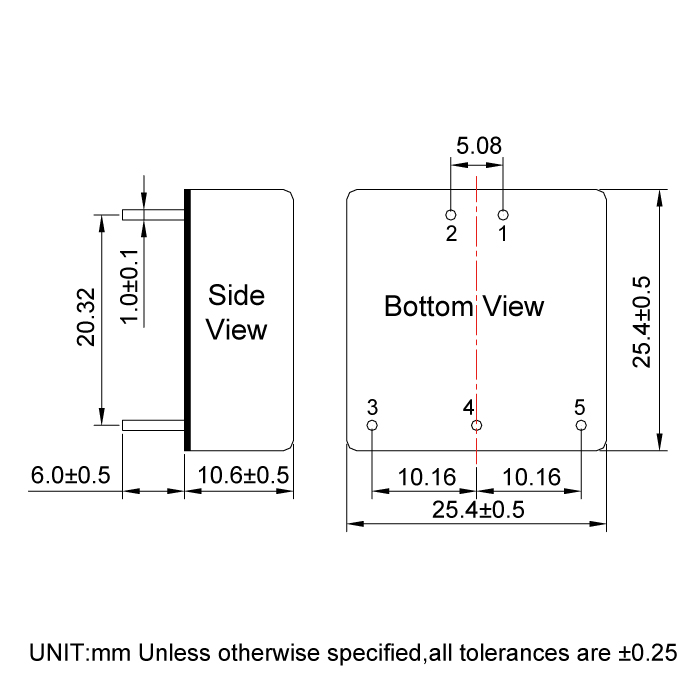

Dimension
Files Download
76D-6W-Series.pdf
