3W 1'' x 1'' 1.5KV Isolation 2:1 Wide Input Range DC DC Power Conversion
2:1 wide input voltage.
3 watt DIL package.
Efficiency to 85%.
1500Vdc isolation.
MTBF:>1,500,000 hrs.
Operating temperature:-40°C to +85°C.
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %TYP | |
| 76D-05S05C | 4.5-9 | 5 | 600 | 75 |
| 76D-05S12C | 4.5-9 | 12 | 250 | 77 |
| 76D-05S15C | 4.5-9 | 15 | 200 | 77 |
| 76D-12S05C | 9-18 | 5 | 600 | 75 |
| 76D-12S12C | 9-18 | 12 | 250 | 80 |
| 76D-12S15C | 9-18 | 15 | 200 | 80 |
| 76D-12D05C | 9-18 | ± 5 | ± 300 | 75 |
| 76D-12D12C | 9-18 | ± 12 | ± 125 | 82 |
| 76D-12D15C | 9-18 | ± 15 | ± 100 | 82 |
| 76D-24S05C | 18-36 | 5 | 600 | 75 |
| 76D-24S12C | 18-36 | 12 | 250 | 85 |
| 76D-24S15C | 18-36 | 15 | 200 | 85 |
| 76D-24D05C | 18-36 | ± 5 | ± 300 | 75 |
| 76D-24D12C | 18-36 | ± 12 | ± 125 | 85 |
| 76D-24D15C | 18-36 | ± 15 | ± 100 | 85 |
| 76D-48S05C | 36-75 | 5 | 600 | 78 |
| 76D-48S12C | 36-75 | 12 | 250 | 85 |
| 76D-48S15C | 36-75 | 15 | 200 | 85 |
| 76D-48D05C | 36-75 | ± 5 | ± 300 | 75 |
| 76D-48D12C | 36-75 | ± 12 | ± 125 | 85 |
| 76D-48D15C | 36-75 | ± 15 | ± 100 | 85 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 2 | % | |||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single (F.L To 10% Load) | ± 0.8 | % | ||
| Load Regulation | Dual (F.L To 10% Load) | ± 1.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 200 | KHz | |||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| Weight | 15.0 | g | |||

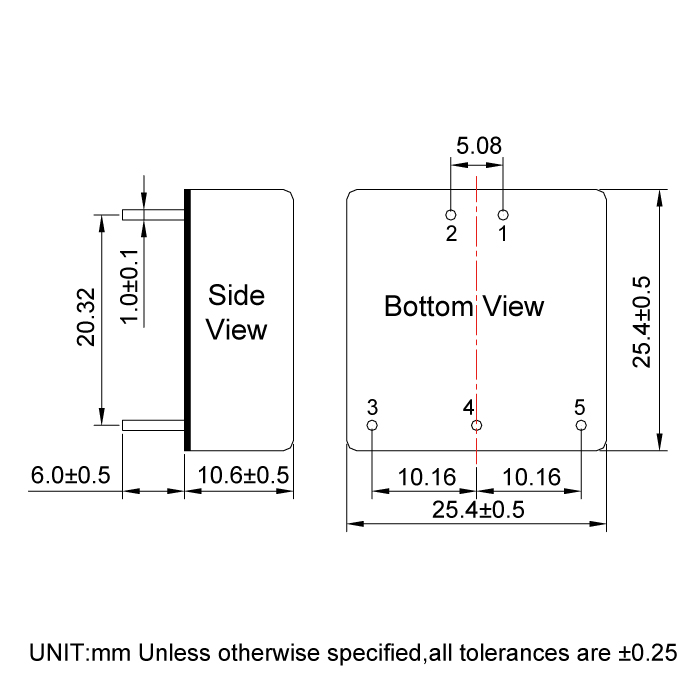

| Dimensions | 25.4 x 25.4 x 10.6 | mm | |||
Files Download
76D-3W Series.pdf
