74F Series
YDS

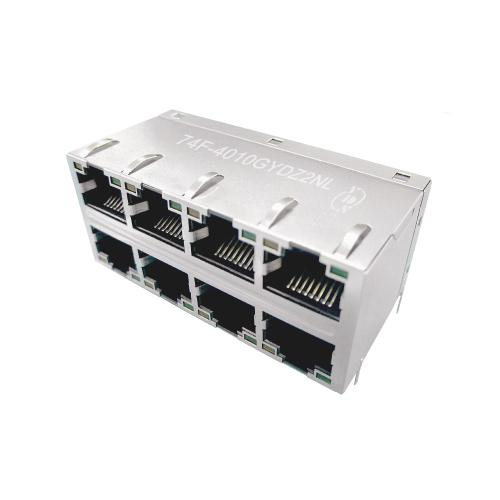

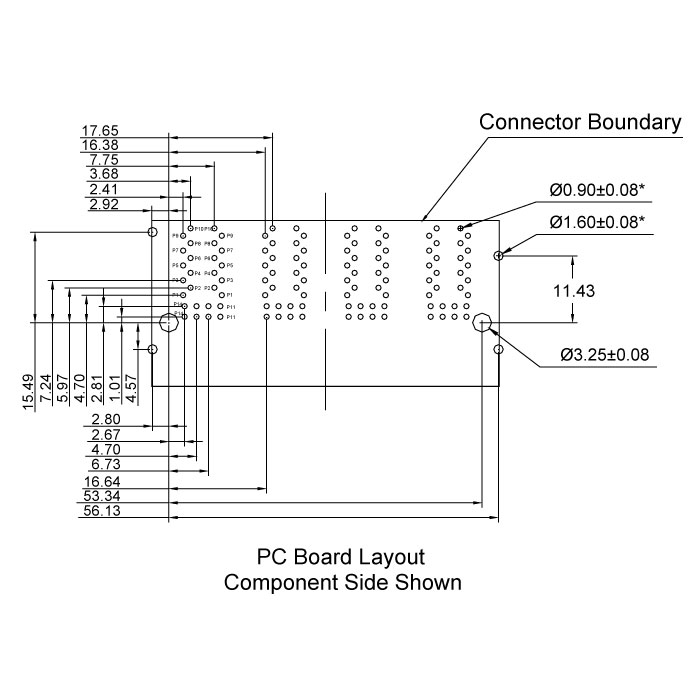

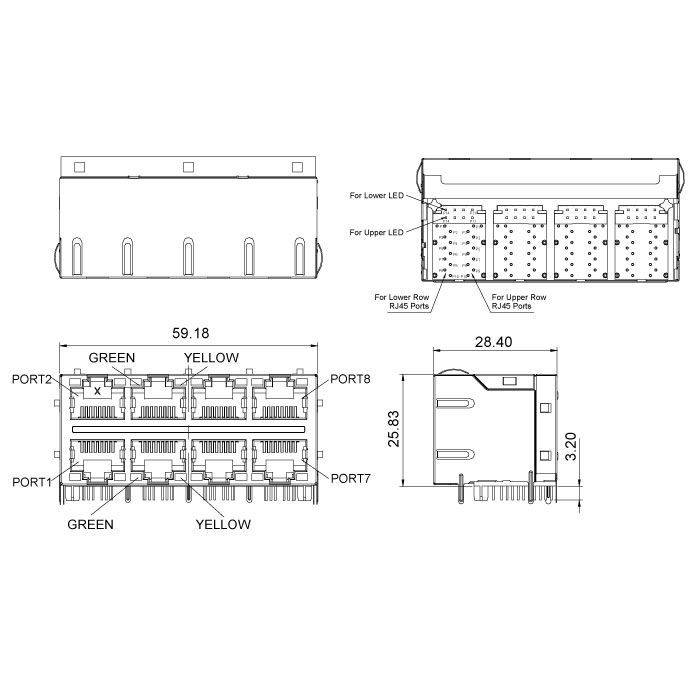

2x4 Port 10/100/1000 Base-T TAB Up & Down RJ45 Connector
2x4 RJ45 with internal magnetics.
Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
Internal magnetics are 100% electrically tested for HI-POT and functionality.
350 μH minimum OCL with 8 mA bias current.
| Part Number | Turns Ratio | Insertion Loss (dB MAX) | Return Loss (dB MIN) 100Ω ±15Ω | |||||
|---|---|---|---|---|---|---|---|---|
| TX | RX | 1-100 MHz | 100-125 MHz | 1-40 MHz | 40-60 MHz | 60-80 MHz | 80-100 MHz | |
| 74F-4010GYDZ2NL | 1CT: 1CT | 1CT: 1CT | -1.0 | -1.2 | -16 | -12 | -10 | -8 |
| Part Number | Crosstalk (dB MIN) | Common Mode Rejection (dB MIN) | Hipot (VDC) |
|---|---|---|---|
| 1-100 MHz | 1-100 MHz | @60Hz | |
| 74F-4010GYDZ2NL | -30 | -30 | 2250 |
