71T/73T/77T/79T Series Surface Mount Common Mode Choke

Availability:
Quantity:
  • 71T/73T/77T/79T series

  • YDS

Surface Mount Inductor


Features


  • Reduces radiated EMI emissions.

  • Filters common mode noise for EMI reduction.

  • Recognized by UL 60950-1.




Electrical Specifications@25°C; Operating Temperature 0°C to 70°C


Part
Number
No. of
Lines
Primary
Inductance
OCL
(μH MIN)
Common Mode Attenuation (dB TYP) DCR
(ΩMAX)
Package
Schematic
100
KHz
1
MHz
10
MHz
30
MHz
50
MHz
100
MHz
300
MHz
500
MHz
1
GHz
73T-370SANL 4 37 8 21 28 28 28 27 25 22 - 0.35 16S-A
77T-225LANL 4 22.5 7 20 30 37 38 34 24 13 - 0.20 8L-A
79T-472LANL 4 4700 40 51 38 30 25 20 14 13 - 1.00 10L-A



Dimension

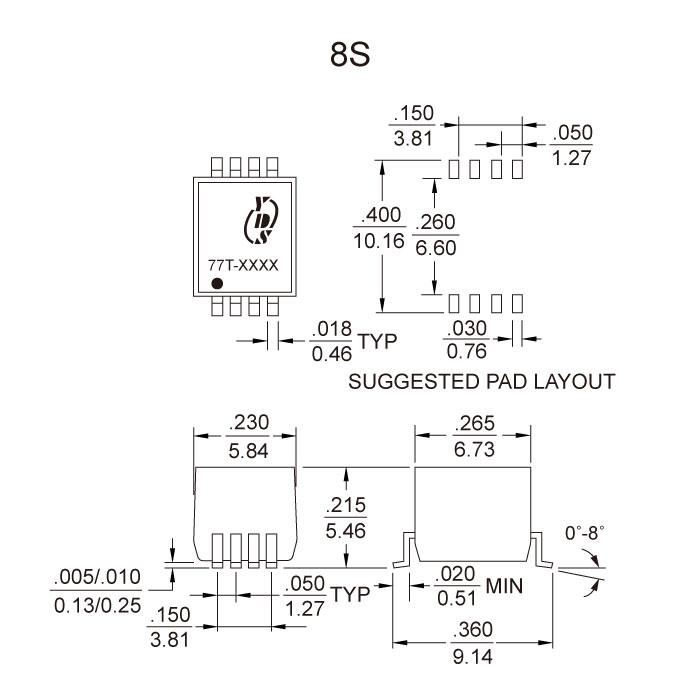

71737779-01

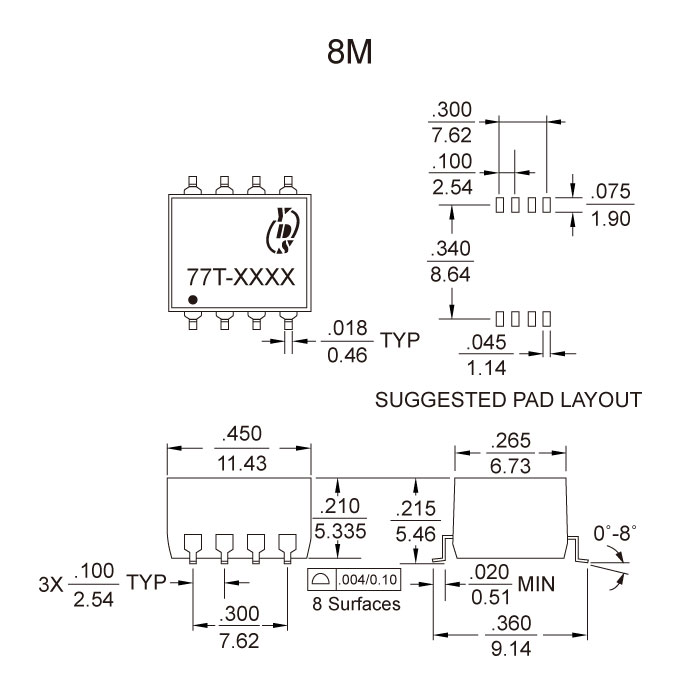

71737779-02



 Files Download         71T-73T-77T-79T-Series.pdf
