71F Series
YDS

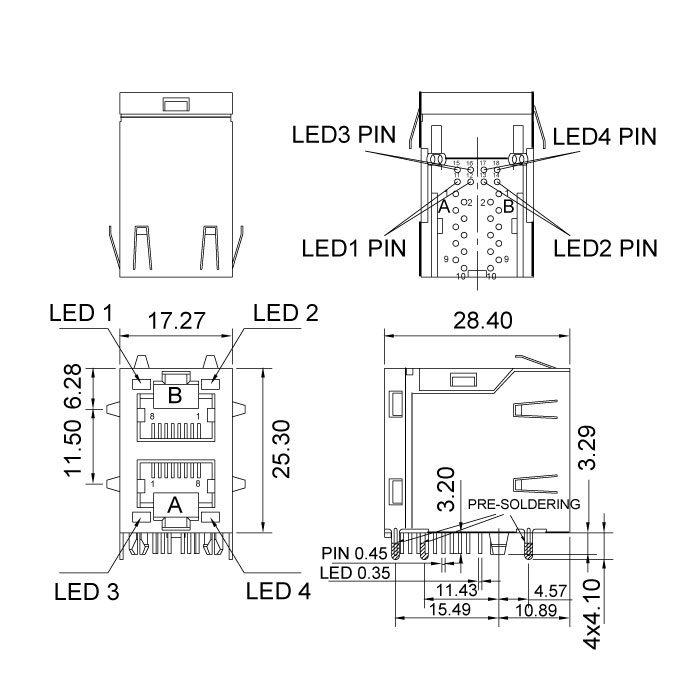

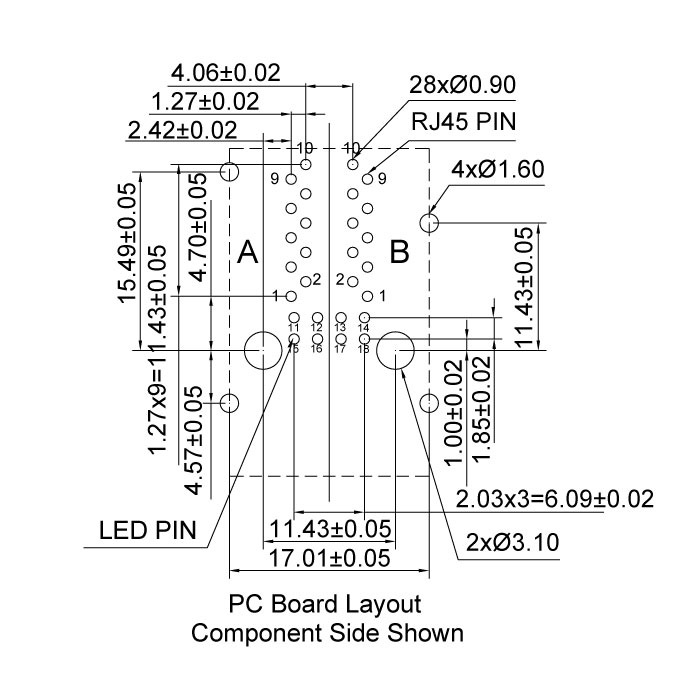

2x1 Port 10/100/1000 Base-T TAB Up & Down RJ45 Connector
Features
2x1 RJ45 with internal magnetics.
Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
Internal magnetics are 100% electrically tested for HI-POT and functionality.
350 µH minimum OCL with 8 mA bias current.
Recognized by UL 60950-1.
| Part Number | Turns Ratio | Insertion Loss (dB MAX) | Return Loss (dB MIN) 100Ω ± 15Ω | Crosstalk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (Vrms) | |||
|---|---|---|---|---|---|---|---|---|---|
| TX | RX | 1-80 MHz | 100 MHz | 1-60 MHz | 60-100 MHz | 1-100 MHz | 1-100 MHz | @60Hz | |
| 71F-1210GYD2NL | 1CT: 1CT | 1CT: 1CT | -1.0 | -1.2 | -16 | -12 | -35 | -30 | 1500 |
| 71F-1327YGD2NL | 1CT: 1CT | 1CT: 1CT | - | -1.0 | -18 | -10 | -30 | -30 | 1500 |
Files Download
71F-Series.pdf
