70T/72T/74T series
YDS
Through Hole Inductor
Features
Reduces radiated EMI emissions.
Filters common mode noise for EMI reduction.
Common mode attenuation from 100KHz to 1 GHz.
Recognized by UL 60950-1.
| Part Number | No. of Lines | Primary Inductance OCL (μH MIN) | Common Mode Attenuation (dB TYP) | DCR (Ω Max) | Page Number Of Mech. & Schem. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 KHz | 1 MHz | 10 MHz | 30 MHz | 50 MHz | 100 MHz | 300 MHz | 500 MHz | 1 GHz | |||||
| 70T-240MANL | 2 | 24 | 1 | 14 | 28 | 32 | 33 | 28 | 13 | 5 | - | 0.30 | 6M-A |
| 72T-141XBNL | 4 | 140 | 14 | 33 | 44 | 48 | 48 | 43 | 33 | 28 | 19 | 0.60 | 8X-B |
| 72T-680LBNL | 4 | 68 | 7 | 24 | 37 | 41 | 42 | 40 | 31 | 27 | - | 0.35 | 8L-A |
| 74T-102MANL | 4 | 1000 | 28 | 41 | 42 | 32 | 22 | - | - | - | - | 0.70 | 10M-A |

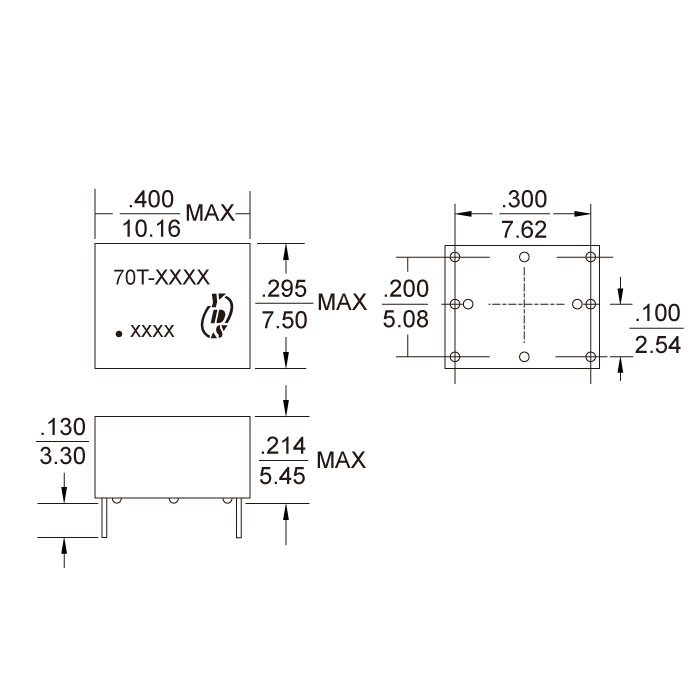

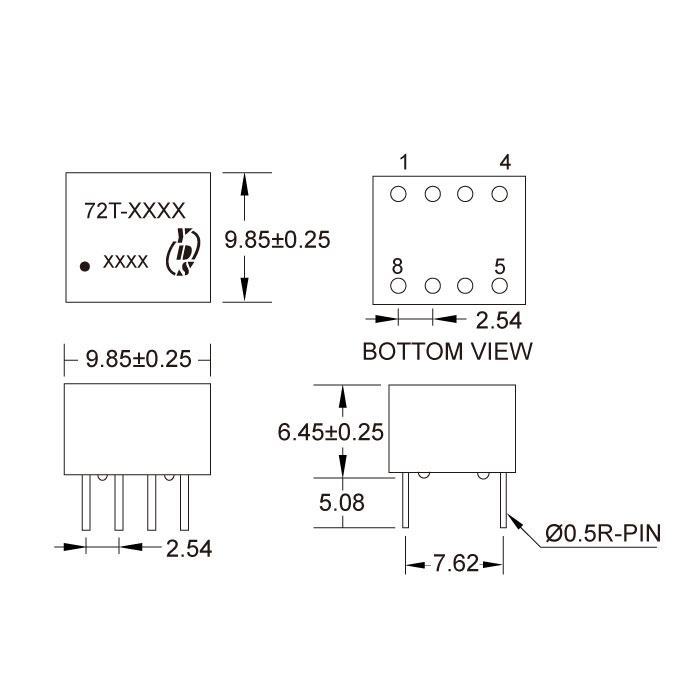

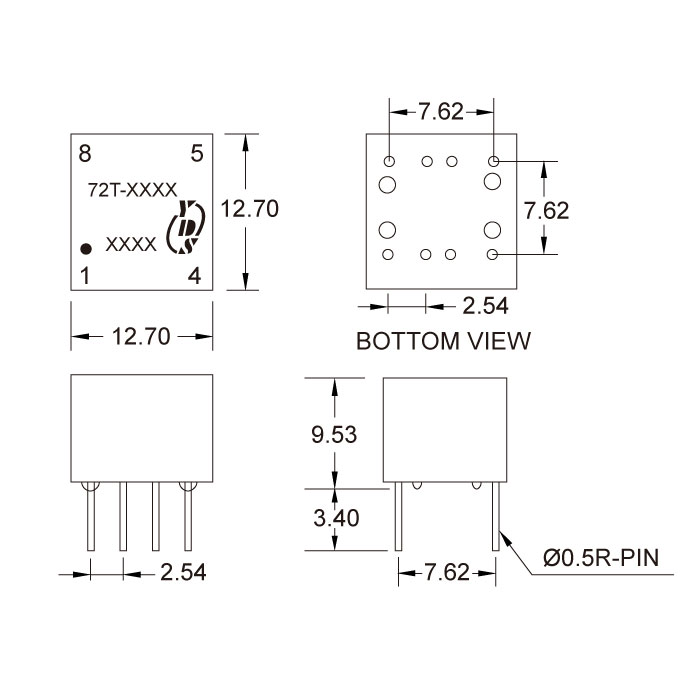

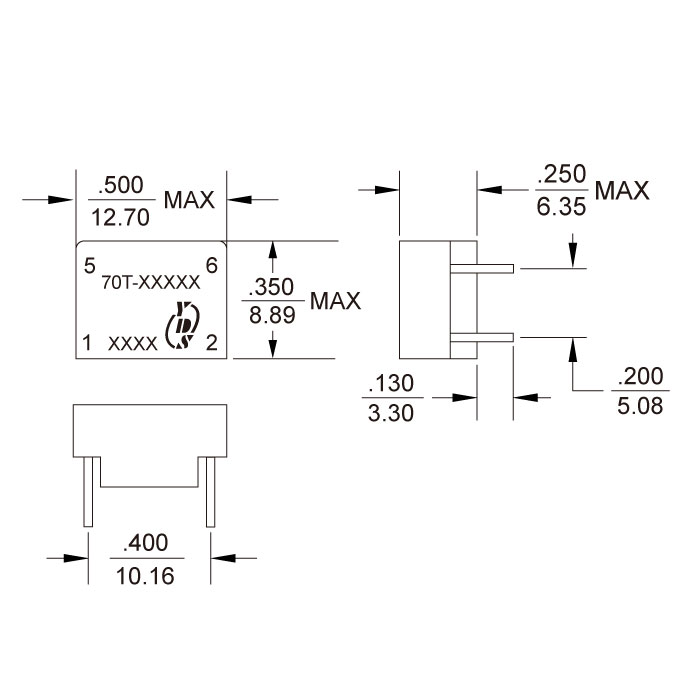

Dimension
Files Download
70T-72T-74T-Series.pdf
Through Hole Inductor
Features
Reduces radiated EMI emissions.
Filters common mode noise for EMI reduction.
Common mode attenuation from 100KHz to 1 GHz.
Recognized by UL 60950-1.
| Part Number | No. of Lines | Primary Inductance OCL (μH MIN) | Common Mode Attenuation (dB TYP) | DCR (Ω Max) | Page Number Of Mech. & Schem. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 KHz | 1 MHz | 10 MHz | 30 MHz | 50 MHz | 100 MHz | 300 MHz | 500 MHz | 1 GHz | |||||
| 70T-240MANL | 2 | 24 | 1 | 14 | 28 | 32 | 33 | 28 | 13 | 5 | - | 0.30 | 6M-A |
| 72T-141XBNL | 4 | 140 | 14 | 33 | 44 | 48 | 48 | 43 | 33 | 28 | 19 | 0.60 | 8X-B |
| 72T-680LBNL | 4 | 68 | 7 | 24 | 37 | 41 | 42 | 40 | 31 | 27 | - | 0.35 | 8L-A |
| 74T-102MANL | 4 | 1000 | 28 | 41 | 42 | 32 | 22 | - | - | - | - | 0.70 | 10M-A |
Dimension
Files Download 70T-72T-74T-Series.pdf
