3W 0.5KV Isolation DIL Package DC to DC Power Converter
Up to 3 watt output power.
500Vdc isolation.
Low ripple and noise.
Regulated output types.
MTBF:>1,500,000 hrs.
Operating temperature:-40°C to +85°C.
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %TYP | |
| 70D-05S05RNL | 5 | 5 | 600 | 60 |
| 70D-05S12RNL | 5 | 12 | 250 | 65 |
| 70D-05D12RNL | 5 | ± 12 | ± 125 | 65 |
| 70D-12S12RNL | 12 | 12 | 250 | 65 |
| 70D-12S15RNL | 12 | 15 | 200 | 65 |
| 70D-12D15RNL | 12 | ± 15 | ± 100 | 65 |
| 70D-24S05RNL | 24 | 5 | 600 | 60 |
| 70D-24D12RNL | 24 | ± 12 | ± 125 | 65 |
| 70D-24D15RNL | 24 | ± 15 | ± 100 | 65 |
| 70D-48S12RNL | 48 | 12 | 250 | 65 |
| 70D-48D12RNL | 48 | ± 12 | ± 125 | 65 |
| 70D-48D15RNL | 48 | ± 15 | ± 100 | 65 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 5 | % | |||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.3 | % | ||
| Load Regulation | Regulated | ± 0.5 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 50 | mVp-p | ||
| Line Regulation | Unregulated (For 1% of Vin) | ± 1.2 | % | ||
| Load Regulation | Unregulated (20% To 100% F.L) | ± 10 | % | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 20 | KHz | |||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| Weight | 55 | g | |||

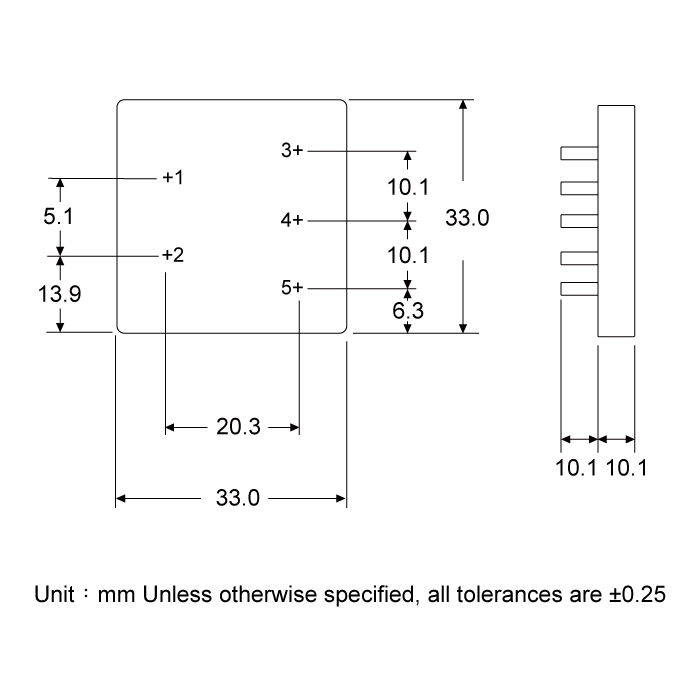

| Dimensions | 33.0 x 33.0 x 10.1 | mm | |||
Files Download
70D Series.pdf
