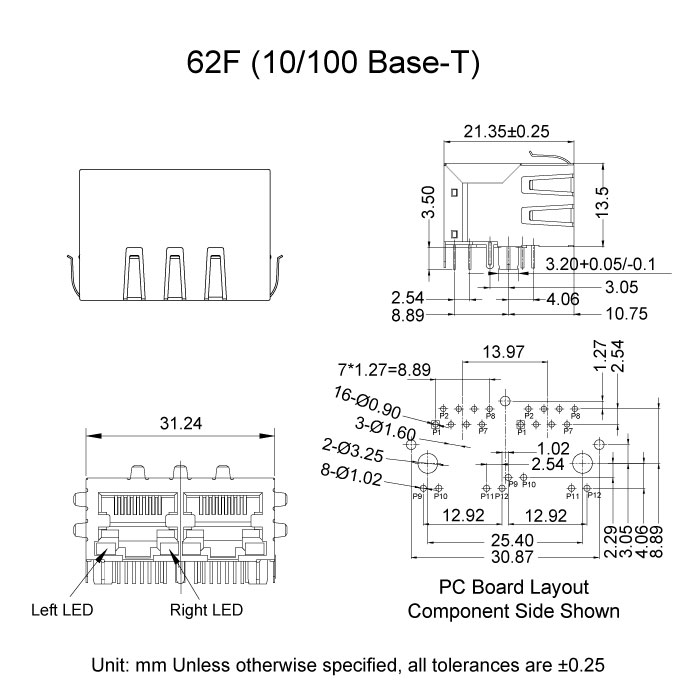

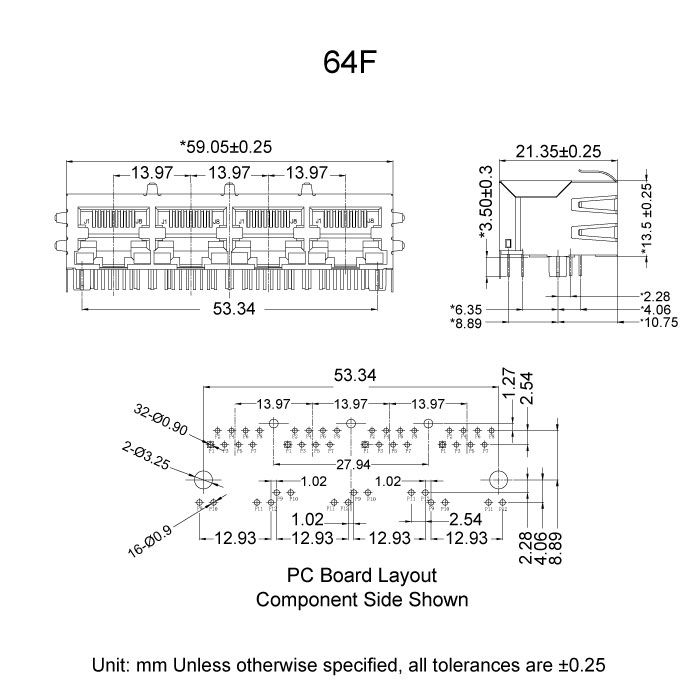

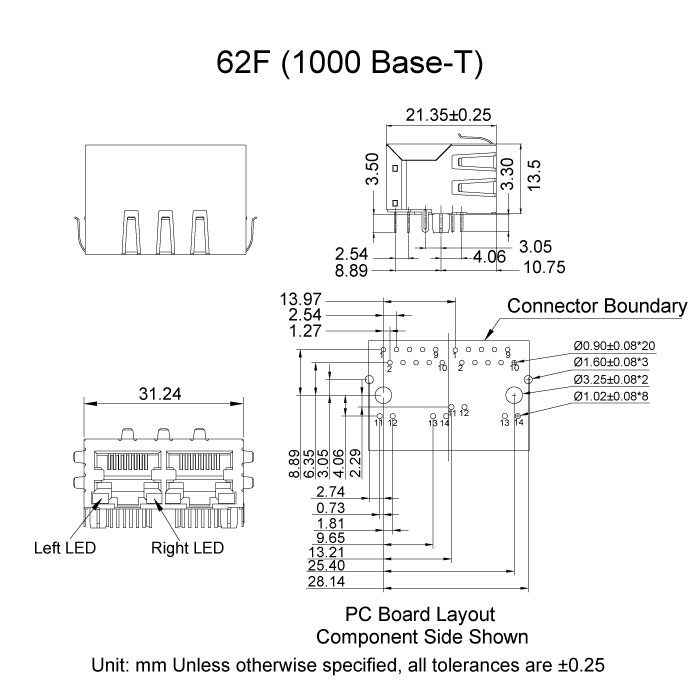

1xN Port 10/100/1000 Base-T TAB Down RJ45 Connector
RJ45 1xN, Tab-down 8-pin & 10-pin with internal magnetics.
Options: 1x2, 1x4 for 10 / 100 / 1000Base-TX.
Available with and without LEDs.
Suitable for CAT 5 and 6 fast ethernet cable or better UTP.
Internal magnetics are 100% electrically tested for HI-POT and functionality.
350uH minimum OCL with 8mA bias current.
Minimum 2250VDC isolation per IEEE 802.3 requirement.
Recognized by UL 60950-1.
Electrical Specifications@25°C; Operating Temperature 0°C To 70°C
| Part Number | Turns Ratio (± 5%) | TAB Option | LEDs | Insertion Loss (dB TYP) | Return Loss (dB TYP@100Ω ±15Ω) | |||
|---|---|---|---|---|---|---|---|---|
| TX | RX | L/R | 0.3-100 MHz | 1-10 MHz | 30 MHz | 60-80 MHz | ||
| 62F-1204GYD2NL | 1CT: 1CT | 1CT: 1CT | DOWN | G/Y | -1.2 | -18 | -16 | -12 |
| 64F-1204GYD2NL | 1CT: 1CT | 1CT: 1CT | DOWN | G/Y | -1.2 | -18 | -16 | -12 |
| Part Number | Crosstalk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (VDC) | |||
|---|---|---|---|---|---|---|
| 1-10 MHz | 30-60 MHz | 60-100 MHz | 1-50 MHz | 50-130 MHz | ||
| 62F-1204GYD2NL | -40 | -35 | -30 | -30 | -20 | 2250 |
| 64F-1204GYD2NL | -40 | -35 | -30 | -30 | -20 | 2250 |
