69D Series 3W 1.5KV Isolation 4:1 Wide Input DC-DC Converter

Availability:
Quantity:
  • 69D Series

  • YDS

Wide Input 4:1 Voltage 3W 1.5KV Isolation DC to DC Power Conversion


Features


  • 4:1 wide input voltage.

  • 3 watt 24PIN DIL package.

  • Efficiency To 75%.

  • 1500Vdc isolation.

  • MTBF:>1,500,000 hrs.

  • Operating temperature:-40°C to +85°C.




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input Voltage Output Voltage Output Current Efficiency
Vdc Vdc mA %Typ
69D-24S05CN 9-36 5 600 75
69D-24S12CN 9-36 12 250 80
69D-24S15CN 9-36 15 200 75
69D-24D05CN 9-36 ± 5 ± 300 75
69D-24D12CN 9-36 ± 12 ± 125 75
69D-24D15CN 9-36 ± 15 ± 100 75
69D-48S05CN 18-72 5 600 75
69D-48S12CN 18-72 12 250 80
69D-48S15CN 18-72 15 200 75
69D-48D05CN 18-72 ± 5 ± 300 75
69D-48D12CN 18-72 ± 12 ± 125 75
69D-48D15CN 18-72 ± 15 ± 100 75


Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Types       4:1
Filter Capacitor


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance       ± 2 %
Short Circuit Protection Continuous
Line Regulation       ± 0.5 %
Load Regulation Single     ± 0.5 %
Load Regulation Dual     ± 2.0 %
Ripple & Noise BW=DC To 20MHz     100 mVp-p
Transient response setting time 50% load step change   350   us


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Switching Frequency     200   KHz
Operating Temperature   -40   +85
Humidity Non Condensing     95 %
Cooling Free air Convection
Case Material Nickel Coated Copper With Non-Conductive Base
Weight   16.2 g
Dimensions   31.60 x 20.10 x 11.0 mm

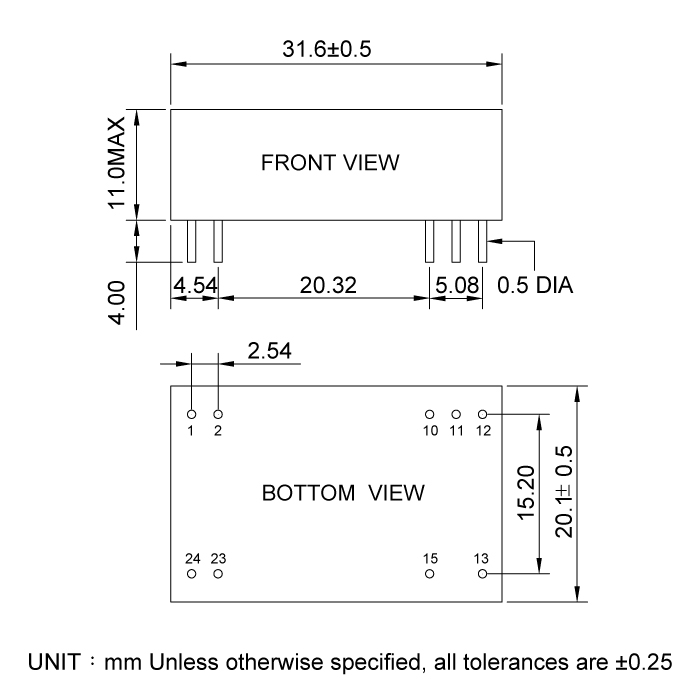

Dimension



69D






 Files Download      69D-Series.pdf



Certification
