68DW15 Series 4:1 Wide Input 15W 1.5KV Isolation DC-DC Converter

Availability:
Quantity:
  • 68DW15 Series

  • YDS

15W 1'' x 1'' DIP Package 1.5KV Isolation 4:1 Wide Input DC to DC Power Conversion


Features


  • 15W DIL package.

  • 4:1 wide input range.

  • 100% burned in.

  • High efficiency up to 88%.

  • Customized solutions available.

  • Remote control:on/off.

  • UL94V-0 package material.

  • Operating temperature from -40°C to +82°C.

  • 3 years warranty.




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input Voltage Input Current Output Voltage Output Current Efficiency
Vdc No Load
(mA TYP)
Full Load
(mA TYP)
Vdc Full Load (mA) %TYP
68DW15-24S03RNL 9-36 50 640 3.3 4000 86
68DW15-24S05RNL 9-36 40 718 5 3000 87
68DW15-24S12RNL 9-36 20 710 12 1250 88
68DW15-24S15RNL 9-36 20 710 15 1000 88
68DW15-24D12RNL 9-36 20 710 ±12 ±625 88
68DW15-24D15RNL 9-36 20 710 ±15 ±500 88
68DW15-48S03RNL 18-75 30 320 3.3 4000 86
68DW15-48S05RNL 18-75 40 359 5 3000 87
68DW15-48S12RNL 18-75 10 355 12 1250 88
68DW15-48S15RNL 18-75 10 355 15 1000 88
68DW15-48D12RNL 18-75 10 355 ±12 ±625 88
68DW15-48D15RNL 18-75 10 355 ±15 ±500 88


Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Types       4:1
Filter PI Network


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance Full load@Vin(nom.)     ±2 %
Short Circuit Protection Hiccup,
automatic Recovery

Line Regulation       ±0.5 %
Load Regulation Single
Dual(Balance Load)
    ±0.5
±1
%
Cross Regulation Dual
(25% To 100% Load)
    ±5 %
Ripple & Noise Output:3-15V TYPES
BW=DC To 20MHz
    100 mVp-p
Output > 15V TYPES
BW=DC To 20MHz
    1% of Vout mVp-p
Transient response setting time 25% load step change   300   us


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Voltage     1500   Vdc
Isolation Resistance 500Vdc 1000
Switching Frequency     400   KHz
Operating Temperature With derating -40   +82
Storage Temperature   -55   +125
Humidity Non Condensing     95 %
Cooling Natural Convection (20LFM)
Case Material Nickel Coated Copper With Non-Conductive Base
MTBF MIL-HDBK-217F@25℃ 560000     Hours
Weight   16.5 g
Dimensions   25.4 x 25.4 x 10.6 mm

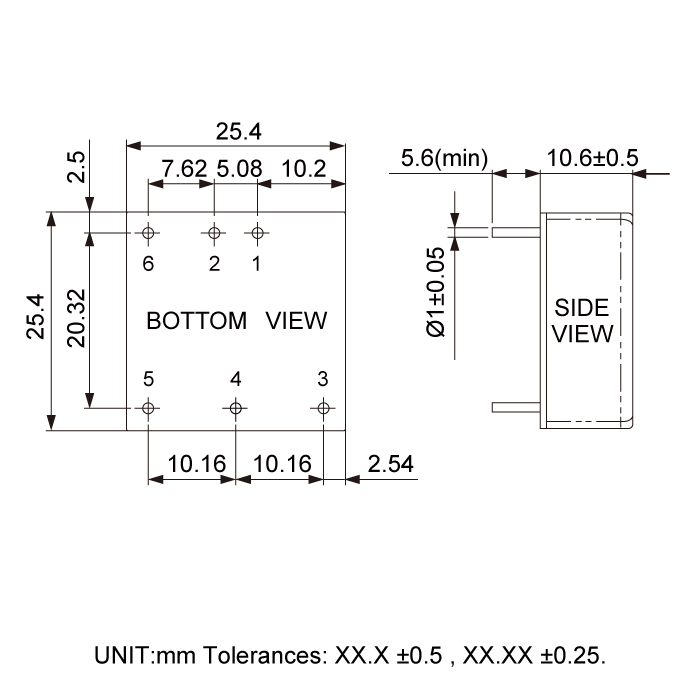

Dimension



68DW15





 Files Download      68DW15-Series.pdf
