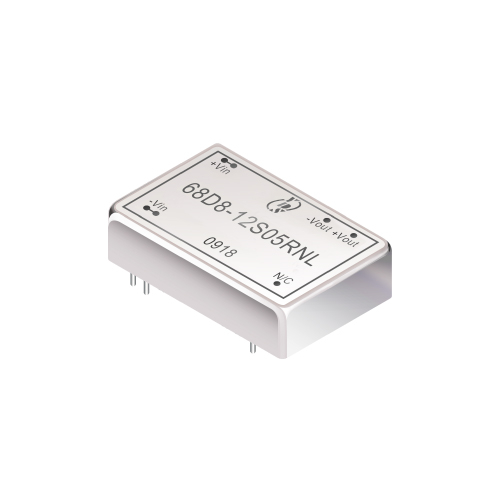

68D8 Series
YDS
8W 1.6KV Isolation 2:1 Wide Input Range DC to DC Power Conversion
8W DIL package.
2:1 wide input range.
100% burned in.
High efficiency up to 87%.
Customized solutions available.
Remote control:on/off.
UL94V-0 package material.
Operating temperature from -40°C to +87°C.
3 years warranty.
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %Typ | |
| 68D8-05S12RNL | 4.5-9 | 120 | 1880 | 12 | 666 | 85 |
| 68D8-05S15RNL | 4.5-9 | 120 | 1880 | 15 | 533 | 85 |
| 68D8-05D12RNL | 4.5-9 | 120 | 1880 | ± 12 | ± 333 | 85 |
| 68D8-05D15RNL | 4.5-9 | 120 | 1880 | ± 15 | ± 266 | 85 |
| 68D8-12S03RNL | 9-18 | 50 | 784 | 3.3 | 2424 | 85 |
| 68D8-12S05RNL | 9-18 | 50 | 775 | 5 | 1600 | 86 |
| 68D8-12S12RNL | 9-18 | 50 | 766 | 12 | 666 | 87 |
| 68D8-12S15RNL | 9-18 | 50 | 766 | 15 | 533 | 87 |
| 68D8-12D05RNL | 9-18 | 50 | 784 | ± 5 | ± 800 | 85 |
| 68D8-12D12RNL | 9-18 | 50 | 766 | ± 12 | ± 333 | 87 |
| 68D8-12D15RNL | 9-18 | 50 | 766 | ± 15 | ± 267 | 87 |
| 68D8-24S03RNL | 18-36 | 30 | 392 | 3.3 | 2424 | 85 |
| 68D8-24S05RNL | 18-36 | 30 | 388 | 5 | 1600 | 86 |
| 68D8-24S12RNL | 18-36 | 30 | 383 | 12 | 666 | 87 |
| 68D8-24S15RNL | 18-36 | 30 | 383 | 15 | 533 | 87 |
| 68D8-24D05RNL | 18-36 | 30 | 392 | ± 5 | ± 800 | 85 |
| 68D8-24D12RNL | 18-36 | 30 | 383 | ± 12 | ± 333 | 87 |
| 68D8-24D15RNL | 18-36 | 30 | 383 | ± 15 | ± 267 | 87 |
| 68D8-48S03RNL | 36-75 | 20 | 196 | 3.3 | 2424 | 85 |
| 68D8-48S05RNL | 36-75 | 20 | 194 | 5 | 1600 | 86 |
| 68D8-48S12RNL | 36-75 | 20 | 192 | 12 | 666 | 87 |
| 68D8-48S15RNL | 36-75 | 20 | 192 | 15 | 533 | 87 |
| 68D8-48D05RNL | 36-75 | 20 | 196 | ± 5 | ± 800 | 85 |
| 68D8-48D12RNL | 36-75 | 20 | 192 | ± 12 | ± 333 | 87 |
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo, Io Nom | 2:1 | |||
| Filter | Capacitor |
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic Recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 1 | % | ||
| Cross Regulation | Dual (25% To 100% Load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output > 15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 350 | us |
General Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1600 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 400 | KHz | |||
| Operating Temperature | With derating | -40 | +87 | ℃ | |
| Storage Temperature | 55 | +125 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 1500000 | Hours | ||
| Weight | 16.2 | g | |||
| Dimensions | 31.60 x 20.10 x 10.00 | mm | |||
Dimension
Files Download
68D8-Series.pdf
