68D15 Series
YDS
15W 1'' x 1'' Package 1.5KV Isolation Wide Input 2:1 DC to DC Power Converter
15W DIL package.
2:1 wide input range.
100% burned in.
High efficiency up to 89%.
Customized solutions available.
Remote control:on/off.
UL94V-0 package material.
Operating temperature from -40°C to +82°C.
3 years warranty.
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | |
| 68D15-12S03RNL | 9-18 | 60 | 1294 | 3.3 | 4000 | 85 |
| 68D15-12S05RNL | 9-18 | 60 | 1453 | 5 | 3000 | 86 |
| 68D15-12S12RNL | 9-18 | 30 | 1420 | 12 | 1250 | 88 |
| 68D15-12S15RNL | 9-18 | 30 | 1420 | 15 | 1000 | 88 |
| 68D15-12D12RNL | 9-18 | 30 | 1420 | ±12 | ±625 | 88 |
| 68D15-12D15RNL | 9-18 | 30 | 1420 | ±15 | ±500 | 88 |
| 68D15-24S03RNL | 18-36 | 50 | 647 | 3.3 | 4000 | 85 |
| 68D15-24S05RNL | 18-36 | 50 | 718 | 5 | 3000 | 87 |
| 68D15-24S12RNL | 18-36 | 20 | 702 | 12 | 1250 | 89 |
| 68D15-24S15RNL | 18-36 | 20 | 702 | 15 | 1000 | 89 |
| 68D15-24D12RNL | 18-36 | 20 | 710 | ±12 | ±625 | 88 |
| 68D15-24D15RNL | 18-36 | 20 | 710 | ±15 | ±500 | 88 |
| 68D15-48S03RNL | 36-75 | 40 | 323 | 3.3 | 4000 | 85 |
| 68D15-48S05RNL | 36-75 | 40 | 363 | 5 | 3000 | 86 |
| 68D15-48S12RNL | 36-75 | 20 | 359 | 12 | 1250 | 87 |
| 68D15-48S15RNL | 36-75 | 20 | 351 | 15 | 1000 | 89 |
| 68D15-48D12RNL | 36-75 | 20 | 355 | ±12 | ±625 | 88 |
| 68D15-48D15RNL | 36-75 | 20 | 355 | ±15 | ±500 | 88 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | PI Network | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ±2 | % | ||
| Short Circuit Protection | Hiccup, automatic Recovery | ||||
| Line Regulation | ±0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ±0.5 ±1 | % | ||
| Cross Regulation | Dual (25% To 100% Load) | ±5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output > 15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 25% load step change | 250 | us | ||
| External Trim Adj. Range | ±10 | % |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 400 | KHz | |||
| Operating Temperature | With derating | -40 | +82 | ℃ | |
| Storage Temperature | -55 | +125 | ℃ | ||
| Case Temperature | +105 | ℃ | |||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 560000 | Hours | ||
| Weight | 16.5 | g | |||

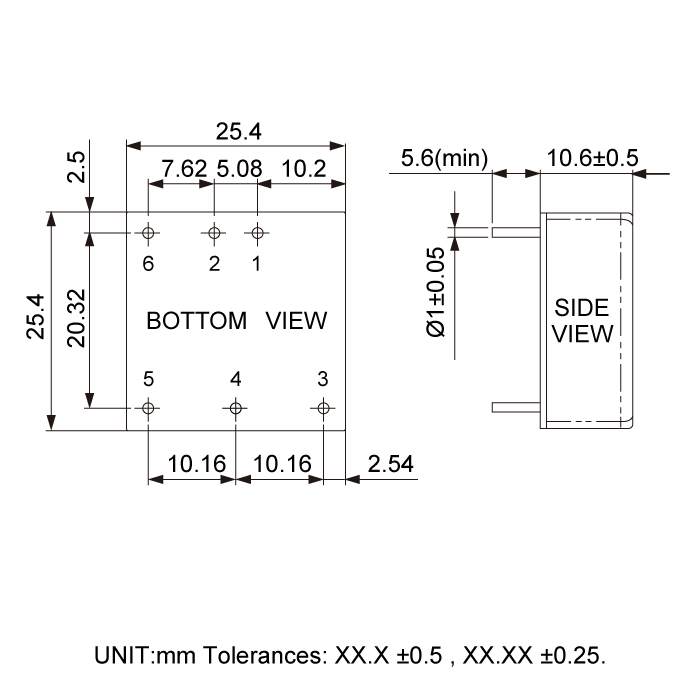

| Dimensions | 25.4 x 25.4 x 10.6 | mm | |||
Files Download
68D15-Series.pdf
